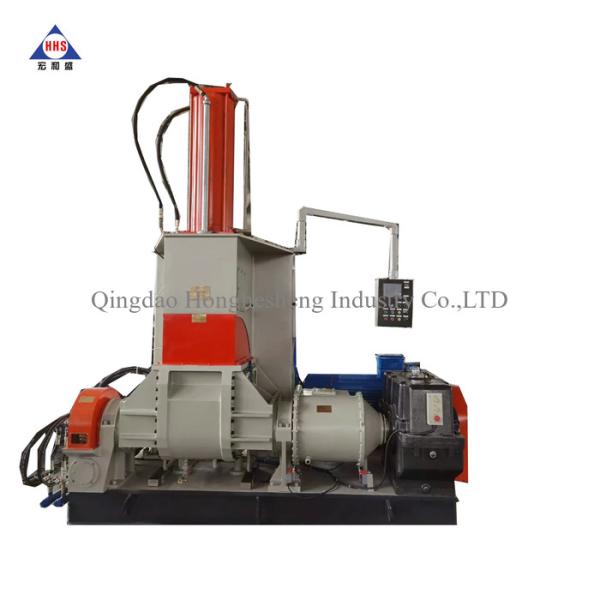

Pressurized Rubber Kneader Machine

Brand Name : HHS

Model Number : XSN-55

Certification : CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD8000-30000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 sets/month

Delivery Time : 30 working days

Packaging Details : wood package and 20/40 GP/HC

Condition : New

Batch Time(times/hour) : 10 times/hour

Total Capacity(L) : 75 L

Marketing Type : New Product 2021

Warranty : 3 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pum

Voltage : 380V,Customer's Request,380V/50HZ

Power(w) : 75KW

Type : Rubber Kneader,Electric heating water cooling

Color : orange,Blue or Green,customized

Application : Rubber / Plastic Mixing,Mixing Rubber or Press rubber sheet

After-sales service provided : Engineers available to service machinery overseas

Weight : 7200KG

Dimension(l*w*h) : 3290*1950*3020mm

Contact Now

CE/ISO Rubber Compounding Dispersion Pressurized Banbury Kneader Mixer Mixing Machine

The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs. Below is the main technical parameters of the models:

Features

Materials are plasticizing and mixing in a closed, pressurized and temperature-controlled space, thus it can achieve high productivity, good and stable quality.
Compared with open mixing mill, it is more energy effective and the capacity is 6-8 times more under the same power level.
The special dust sealing unit provides reliable sealing.
The machine is rather durable in use, because the rotor uses 42Crmo material and is plated by hard chrome so does the decelerator and gearbox.
Effective temperature control - excellent cooling or heating effect (All the parts in contact with stock adopt jacket design in order to lead water/steam/medium oil to control the temperature.)
The electrical control system adopts PLC, thus it provide perfect and reliable control, detection & alarm and the necessary safety interlocking functions.
1.Blade of rotors are well designed for better dispersion&faster cycle time.

2.Effective cooling system to control overheating.

3.Easy Cleaning for color change.

4.Hydraulic tilting system for trouble free working.

5.Simple operation through quality designed electric panels&safety.

Description:

1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion . Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.

2) Easy Cleaning and Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made nice.

3)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.

Parameter

of Popular Selling High Quality Rubber Kneader Machine/Rubber Banbury Kneader Mixer/Rubber Mixing Machine.

Parameter/model	X(S)N-3	X(S)N-10	X(S)N-20	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-110	X(S)N-150	X(S)N-200
Total volume (L)	8	25	45	80	125	175	250	325	440
Working volume (L)	3	10	20	35	55	75	110	150	200
Driving motor power (KW)	7.5	18.5	37	55	75	110	185	220	280
Tilting motor power (KW)	0.55	1.5	1.5	2.2	2.2	4.0	7.5	15	7.5
Tilting angle	140	140	140	140	140	140	140	140	140
Rotor speed (RPM)	32/25	32/25	32/26.5	32/24.5	32/26	32/26	30/24.5	30/24.5	30/24.5
Pressure of compressed air (MPA)	0.7-0.9	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Capacity of compressed air (m³/min)	≥0.3	≥0. 5	≥0.7	≥0.9	≥1.0	≥1.3	≥1.6	≥2.0	≥2.0
Pressure of cooling water (Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
weight (kg)	1038	3000	4437	6500	7850	10230	14200	19500	22500

More pictures

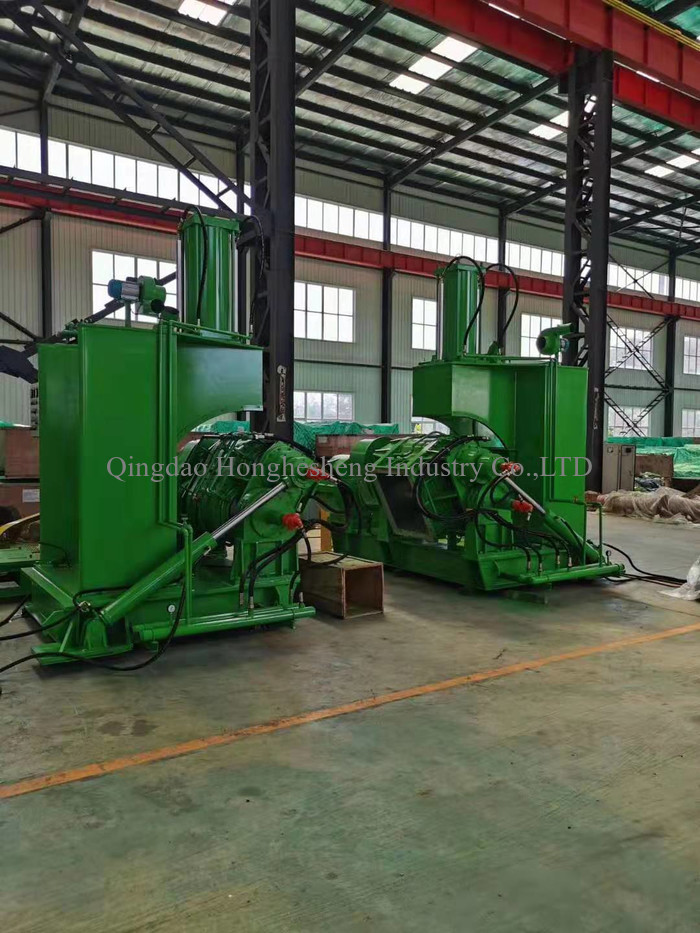

Pressurized Rubber Kneader Machine

Detailed Images

Rubber Kneader Rotor.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
 PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

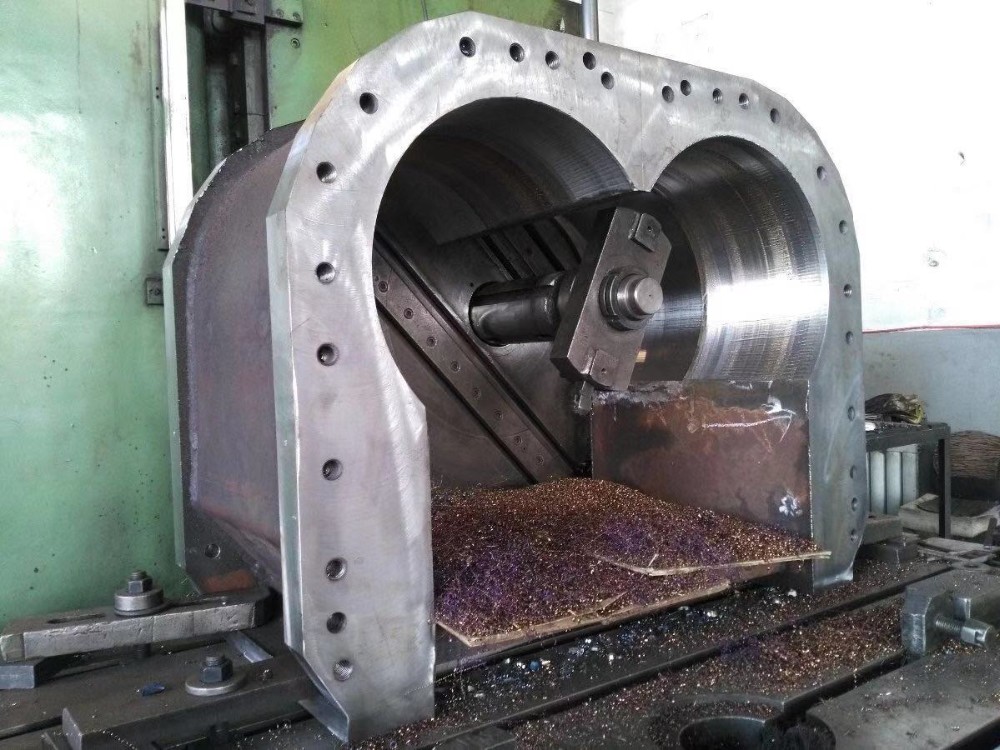

Machine the mixing room.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
 PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Rubber kneader base.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
 PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

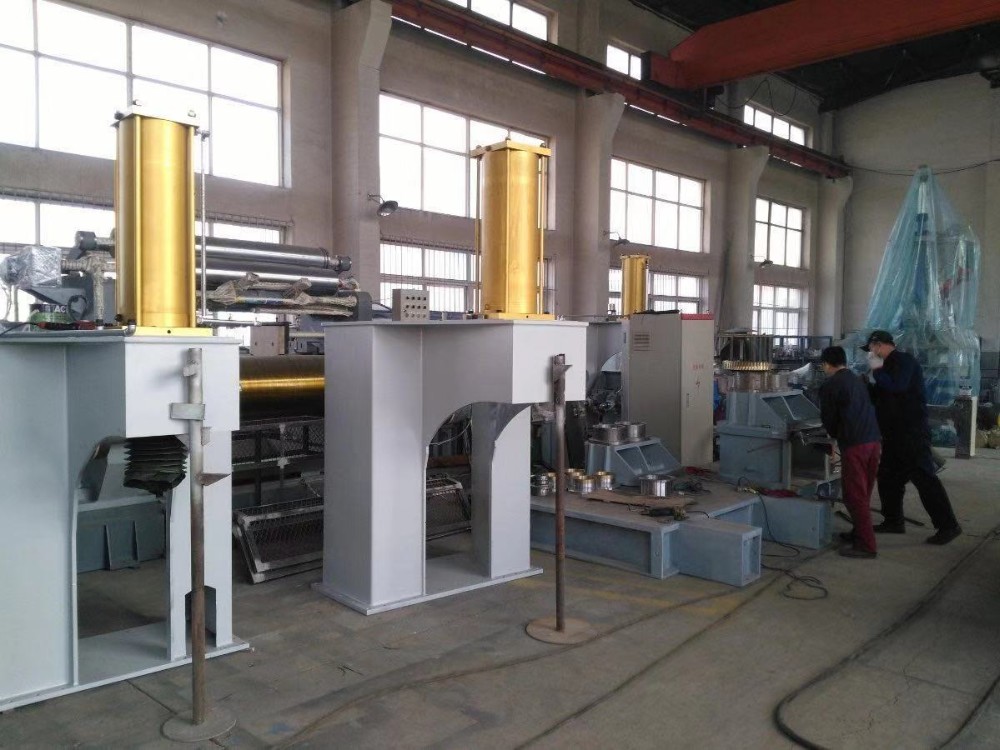

Install the rubber kneader.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
 PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Samples of Popular Selling High Quality Rubber Kneader Machine/Rubber Banbury Kneader Mixer/Rubber Mixing Machine.
