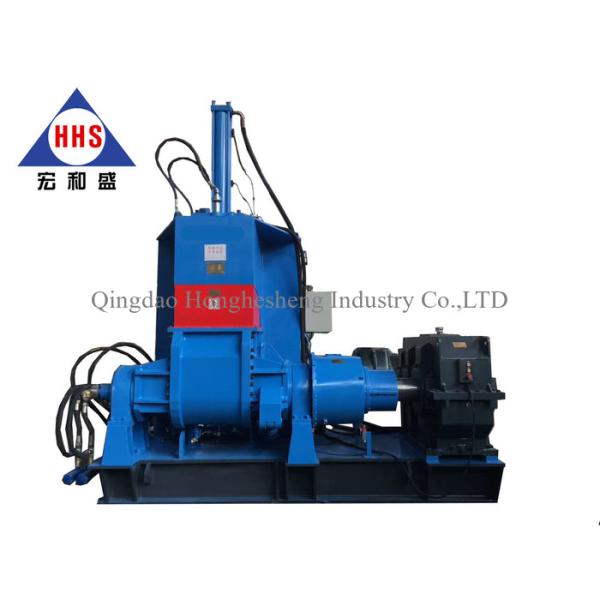

Pneumatic Reclaimed Rubber Kneader Machine 25L 150L

Brand Name : HHS

Model Number : XSN-75

Certification : CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD8000-30000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 sets/month

Delivery Time : 30 working days

Packaging Details : wood package and 20/40 GP/HC

Condition : Second Hand Old

Batch Time(times/hour) : 10 times/hour

Total Capacity(L) : 75 L

Marketing Type : New Product 2021

Warranty : 3 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pum

Voltage : 380V,Customer's Request,380V/50HZ

Power(w) : 110KW

Type : Rubber Kneader,Electric heating water cooling

Color : orange,Blue or Green,customized

Application : Rubber / Plastic Mixing,Mixing Rubber or Press rubber sheet

After-sales service provided : Engineers available to service machinery overseas

Weight : 9500KG

Dimension(l*w*h) : 3600*2280*2650mm

Contact Now

Rubber Kneader Machinery Reclaimed Rubber Kneader

rubber mixer : banbury kneader , dispersion kneader

We provide a wide range of compound mixing equipment for different production requirement, rubber hardness and capacity.

Rubber Internal Mixer / Intensive Mixer/ Banbury

It is mainly used for plasticating, mixing and final mixing the stock
 Range of specifications:25L-650L
 Type of rotor: To be advise
 Intermeshing rotor: NG intermeshing rotor
 Type of ram: hydraulic type, pneumatic type

Rubber (Plastics) Dispersion Mixer / Kneader

It is mainly used for mixing and plasticating rubber or plastics etc.
 Range of specifications:25L-150L
 Lab kneader

Pneumatic Reclaimed Rubber Kneader Machine 25L 150L

Machine Application

This machine consists of pnuematic control system , heating/cooling system, tilting system,rotor,thermal resistance,main driving system,mixing chamber,rotor ,dust stop device , ete . It is used to plasticize , mix and final mix rubber , plastics or blend of plastics and rubber

Machine Feature

1. Pneumatic control system is controlled by PLC instruction . A bi-directional air cylinder make the ram up or down , in case thatoverload occurs in the mixing chamber ,the top ram can be raised automatically or manually if necessary , so as to protect motor from overload

Model	X(S)N- 10X32	X(S)N- 20X32	X(S)N- 35X30	X(S)N- 55X30	X(S)N- 75X30	X(S)N- 110x30	X(S)N- 150x30
Total volume of mixing chamber	25L	45L	75L	125L	180L	250L	325L
Working volume of mixing chamber	10L	20L	35L	55L	75L	110L	150L
Driving motor power	15KW	30KW	55KW	75KW	110KW	185KW	220KW
Tilting motor power	1.1KW	1.5KW	2.2KW	2.2KW	4KW	4KW	5.5KW
Tilting angle	140°	140°	140°	140°	140°	140°	140°
Rotational speed of the rotor (front/rear)	32/23.5 r/min	32/25 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min
Pressure of compressed air	0.5-0.8 MPa	0.5-0.8MPa	0.5-0.8MPa	0.6-0.8MPa	0.6-08MPa	0.6-0.8MPa	0.6-0.8MPa
Capacity of compressed air	≥0.5m³/min	≥0.7m³/min	≥0.9m³/min	≥1.0m³/min	≥1.0m³/min	≥1.5m³/min	≥2.0m³/min
Pressure of cooling water	0.2-0.4 MPa	0.2-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa
Pressure of heating steam (plastic mixing)	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
Overall dimension	2580X1300 X2280mm	2630X1520 X2550mm	3200X1900 X2950mm	3280X1930 X3070mm	3330X2620 X3340mm	3930X3000 X3660mm	4200X3300 X3900mm
Weight	3300Kg	4500Kg	6500Kg	7800Kg	10500Kg	14500Kg	19500

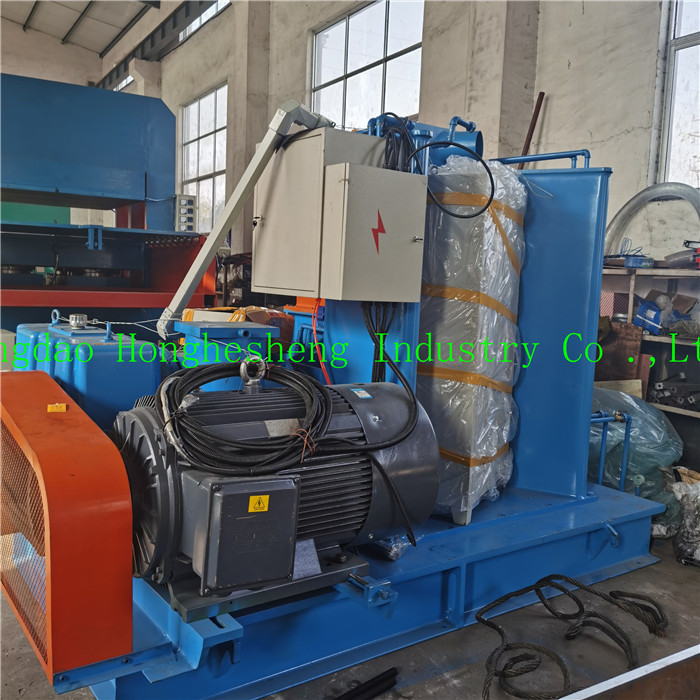

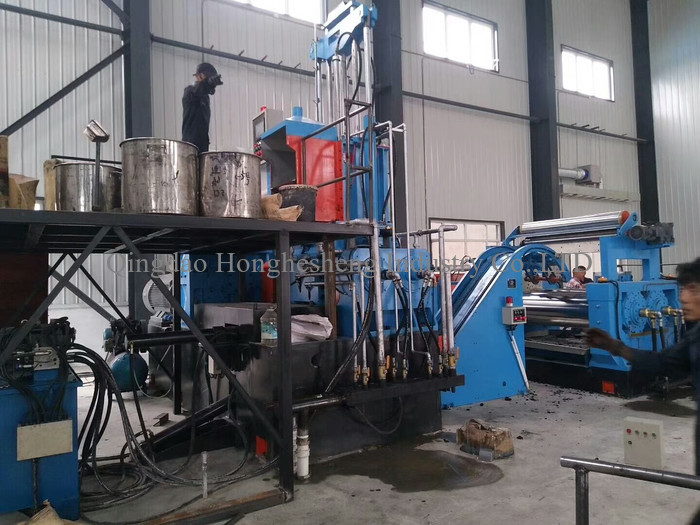

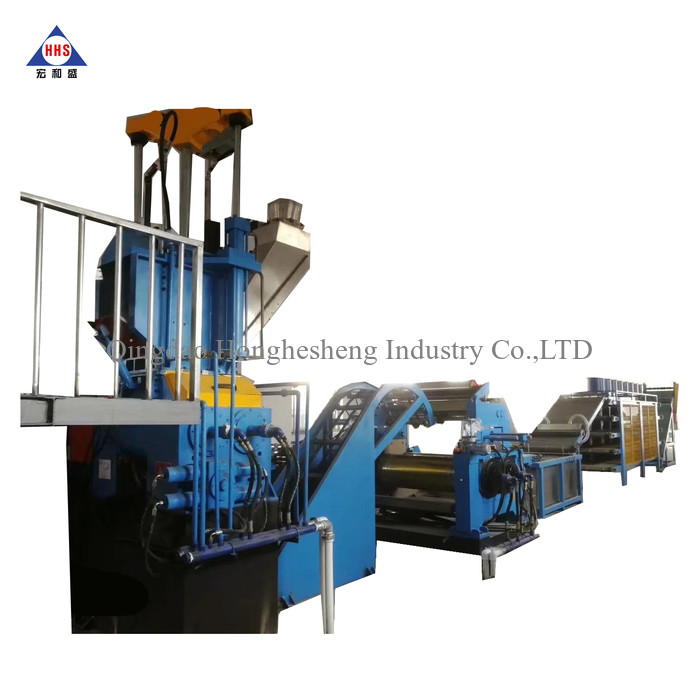

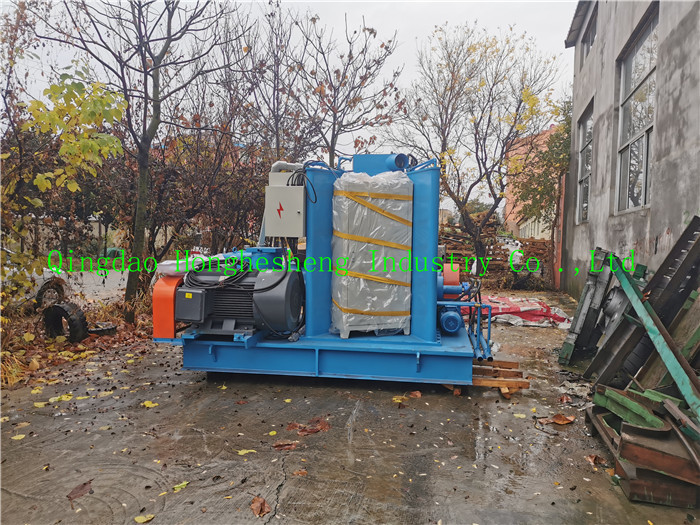

kneader Machine photos:

Pneumatic Reclaimed Rubber Kneader Machine 25L 150L

Basic Structure

mixing chamber is bore cooling ,circulation cooling forced ( warm water circulation system)guarantee the better temperature for mixing .

Mixing Chamber

The mixing chamber adopts cast steel, inside is chrome plated and polish to mirror effect. And the sides are drilled for good water cooling effect.

Electronics

Adopts international famous brand electronics, the work is reliable. Inside control box all electronics and wires are well
 designed, rational arrayed. So the wire connection and operation is easy and maintenance is easy.

Control Panel

Our kneader machine adopts international famous brand control system. The work is stable and accurate, reliable, trouble free.

Pneumatic Reclaimed Rubber Kneader Machine 25L 150L

Basic Structure

mixing chamber is bore cooling ,circulation cooling forced ( warm water circulation system)guarantee the better temperature for mixing .

Mixing Chamber

The mixing chamber adopts cast steel, inside is chrome plated and polish to mirror effect. And the sides are drilled for good water cooling effect.

Electronics

Adopts international famous brand electronics, the work is reliable. Inside control box all electronics and wires are well
 designed, rational arrayed. So the wire connection and operation is easy and maintenance is easy.

Control Panel

Our kneader machine adopts international famous brand control system. The work is stable and accurate, reliable, trouble free.
