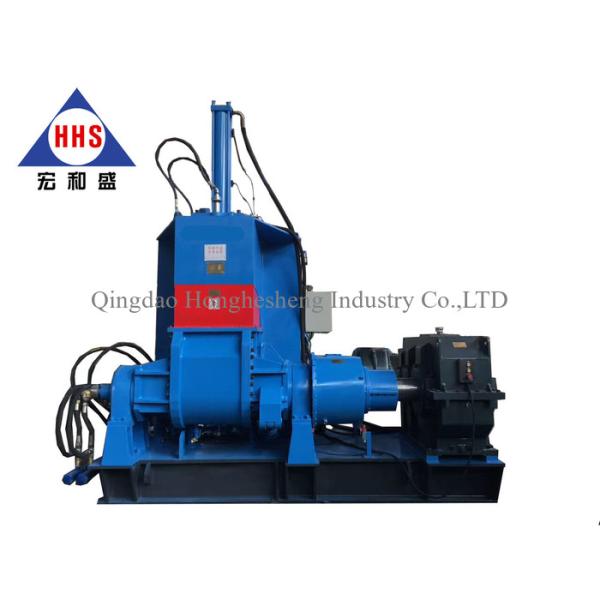

55liter Silicon Rubber Mixer Machine/Banbury Rubber Mixer/Internal Mixer Machine Rubber Kneader Machine
High safety factor,low energy cost, high degree of production sanitation
Brief description
1.Excellent sealing performance(copper sealing ring)
2.No leakage of powder /oil-proof
3.Automatic and manual interaction
4.Rotors:chroming carbide alloy ,15 silk
5.Type of rotors:standard two-wing tangential rotor ,four-wing synchronous rotor ,welded up alloy rotor and cylindrical intermeshing rotor
Main technical parameters:
| Model | X(S)N-20*32 | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 |
| Total Volume (L) | 45 | 75 | 125 | 175 | 250 |
| Working Volume (L) | 20 | 35 | 55 | 75 | 110 |
| Power(KW) | 30 | 55 | 75 | 110 | 185 |
| Tilting Power(KW) | 1.5 | 2.2 | 2.2 | 3.0 | 7.5 |
| Tilting Angle | 140° | 140° | 140° | 140° | 140° |
| Rotational Speed (r/min) | 40/32 | 40/32 | 40/32 | 40/32 | 40/32 |
| Size(mm) | 3100*1300*2450 | 3200*1900*2945 | 3300*1900*2900 | 3760*2143*3135 | 4075*2712*3580 |
Specifications:
1. The plastic material in airtight plastic pressure under the condition of refining or mixed refine, high production efficiency, low labor strength, stable quality. The two edges rotor shearing type, the production process the plastic materials that can be fully tear make the material shear well reach dispersion and evenness.
2. The edges of the rotor peak surfacing wear-resisting hard alloy, and mixing rubber room and material part of the contact all use hard chromium plating fine polishing processing. Mixed refine chamber adopts clip set of type structure, can be out water/steam/medium oil, have good cooling or heating effect, adapt to all kinds of refined rubber refining technological requirements of the plastic.
3. From the back door charging, mixing rubber room maximum flip 140 ° forward unloading, and according to the customer requirement of process can be arbitrary regulation Angle, facilitate next process of connection.
4. The switch on the "w" type, facilitate materials can be fully mixing rubber or refining.
5. The electric control system the programmable logic controller (PLC), has the alarm, unloading
operation, manual/automatic conversion, chain security protection function.
