Best Selling Products In Africa Truck OTR Tires Renewable Old Tyre Retreading Plant For Sale
Application scope:
Vulcanization tank is mainly used for rubber tire retreading, reclaimed rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization. styrene-butadiene rubber thermoplastic refining, wood, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products widely used in the gypsum and its products and other materials autoclaving.
Features of the autoclave for tyre retreading:
The autoclave for tire retreading is a pressure vessel with speed open door, the autoclave openings sealed with inflatable silicone ring or internal pressure self-tight rubber pad. Mechanical or manual gearing is used to lock and open the lid, reasonable structure, convenient operation, good sealing performance, the temperature in the tank is uniform,furthermore, complete safety accessories (equipped with safety interlock device).
1.Tyre renovating lower the production cost
2.Can be devided into single or multiple tyre vulcanizin
3. Warming up, vulcanize time, pressure, aerate, exhausting are all automatic control
4. Temperature in the vulcanizer is evenly, balance control of every single tyre pressure, ensure the hardness, strength, elasticity of the product no deformation
5. Opening door adopt safety interlock, have passed the identification by Provincial Technical Supervision.
Operation
Manual closing, vulcanizing pot after is open, the power is connected by hand motor door-close button, vulcanizing pot began to enter into automatic control.
1) miniature cooling motor startup
2) the circulation fan startup
3) heater or steam heating begin
4) vacuum pump start-up
5) 0.75 M afraid of filtering dry air valve opens(into the cans of compressed air should be no oil dry compressed air) until vulcanizing pot pressurized to setting value, to date, heater, self-control after fan, EPS value to package sets the set pressure value will suffer. Vulcanizing pot in which meets the above conditions launched. After timer General vulcanization time is 2.6-3 hours. Achieve time vulcanizing pot automatic vent, until the compressed air all platoon tank to tank clean, pressure value zero, open the door motor automatically start make pot the doors opened, as the entire system without electricity, vulcanization ended.
Technical parameters
| Item | 800 | 1200 | 1500 | 1700 | 2000 | 2600 |
| Inner diameter(mm) | 800 | 1200 | 1500 | 1700 | 2000 | 2600 |
| Canister length(mm) | 22000 | 3000 | 3000 | 4000 | 4000 | 10000 |
| Number of lid sawtooth | 12 | 12 | 14 | 14 | 16 | 24 |
| Thickness of lid (mm) | 10 | 10 | 10 | 10 | 16 | 14 |
| Thickness of the tank body(mm) | 10 | 10 | 10 | 10 | 12 | 14 |
| Working pressure(MPa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.55 |
| | Dimensions(mm) | (length*width*height) | 22766*1445*1170 | 4010*1575*1670 | 3960*2150*2050 | 4925*2162*2070 | 6200*2590*2424 | 11722*3360*4136 |
| Weight(Kg) | 5580 | 2017 | 2950 | 3835 | 6500 | 16775 |

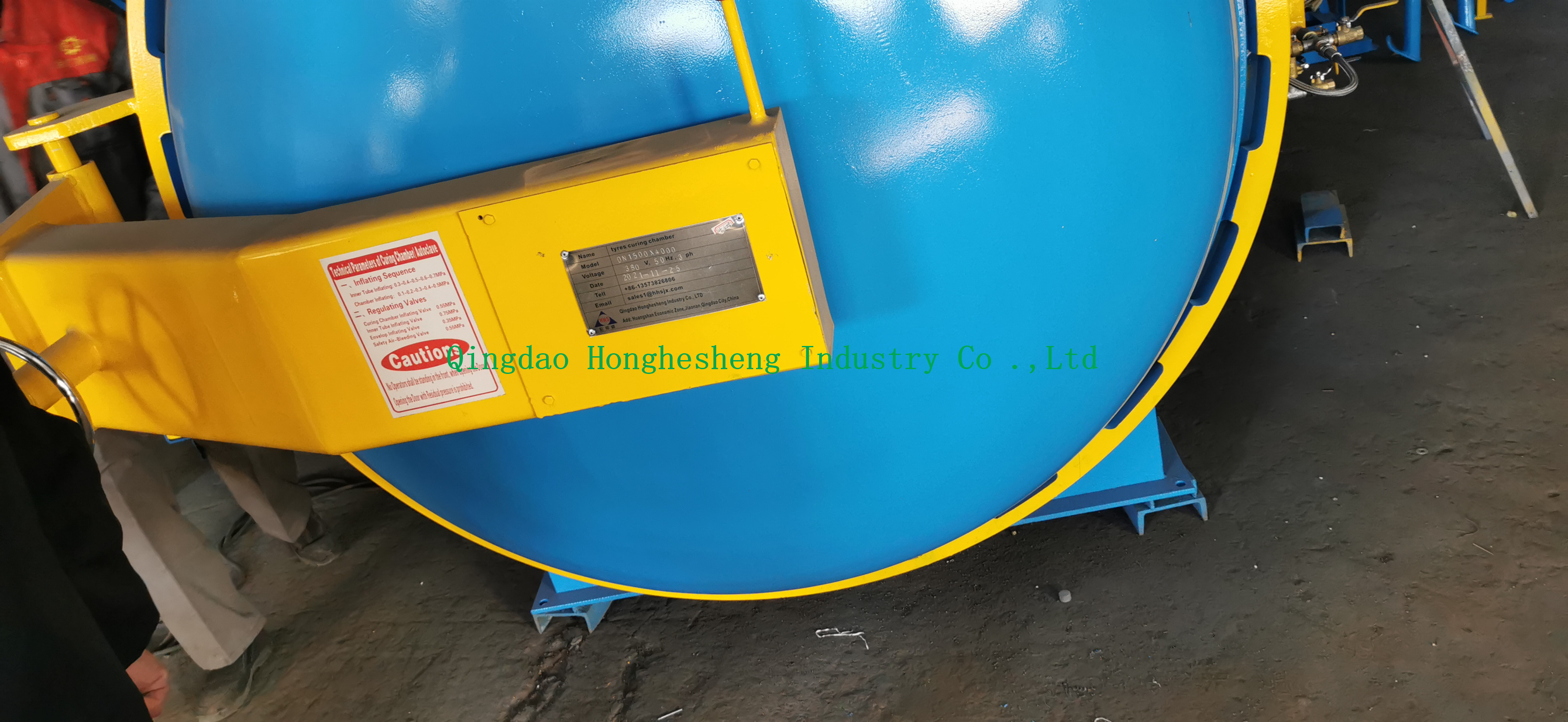

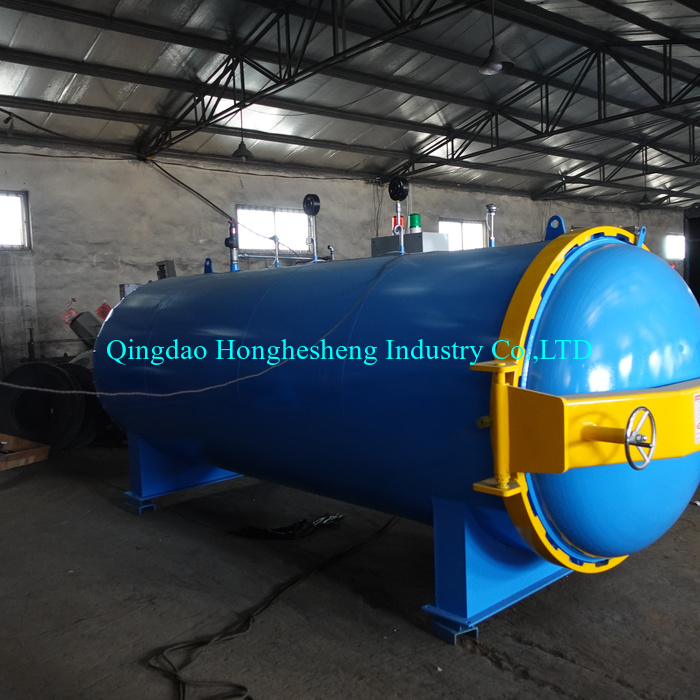

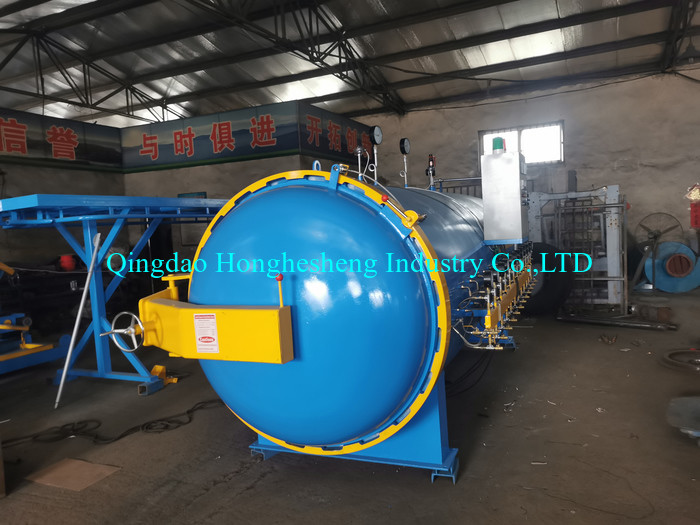

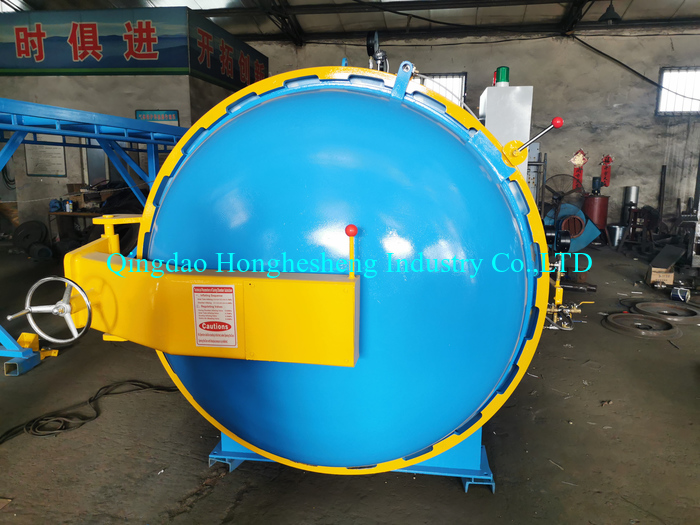

Chamber Pictures

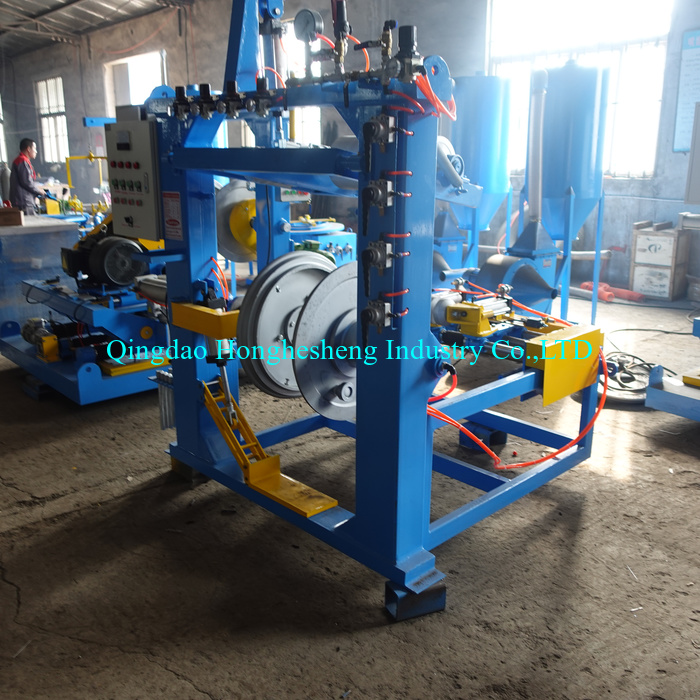

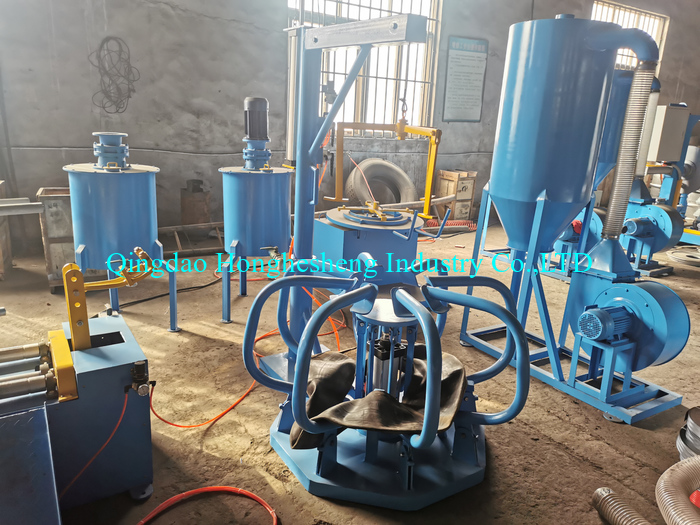

Related Tire Retreading Machines
