Tyre Retreading Rubber Vulcanizing Tank Curing Chamber Autoclave Vulcanizer

Rubber Vulcanizing Tank Tyre Retreading Equipment Curing Chamber Autoclave Vulcanizer

Multi-functional tires pre-sulfided cans are safe and reliable curing equipment, this tank chain device is the guarantee quality the first points qualified products. The equipment is available
electricity or steam, heat conduction oil heat. Equipment operation in control panel before you can adjust on the pressure, temperature, time.

Functions
1. To make pre-cured tread bonded firmly with old tyre body, automatic temperature-controllation, automatic pressure relief once exceeding the stipulated pressure.
2. Multiple safety interlocks to guarantee safe operation.
3. To make interfusion of pre-cured tread and used tyre core though vacuum pumping, pressurizing and heating and so on, to increase the intensity and wear ability of tread at the same time.

Operation
Manual closing, vulcanizing pot after is open, the power is connected by hand motor door-close button, vulcanizing pot began to enter into automatic control.
1) miniature cooling motor startup
2) the circulation fan startup
3) heater or steam heating begin
4) vacuum pump start-up
5) 0.75 M afraid of filtering dry air valve opens(into the cans of compressed air should be no oil dry compressed air) until vulcanizing pot pressurized to setting value, to date, heater, self-control after fan, EPS value to package sets the set pressure value will suffer. Vulcanizing pot in which meets the above conditions launched. After timer General vulcanization time is 2.6-3 hours. Achieve time vulcanizing pot automatic vent, until the compressed air all platoon tank to tank clean, pressure value zero, open the door motor automatically start make pot the doors opened, as the entire system without electricity, vulcanization ended.

Advantages:
1. Easy-handing and handing safety.
2. Advantage design.
3. Almost full automatic control.
4. Even heating and good heat distribution.
5. Durable and reliable.

Detailed Pictures

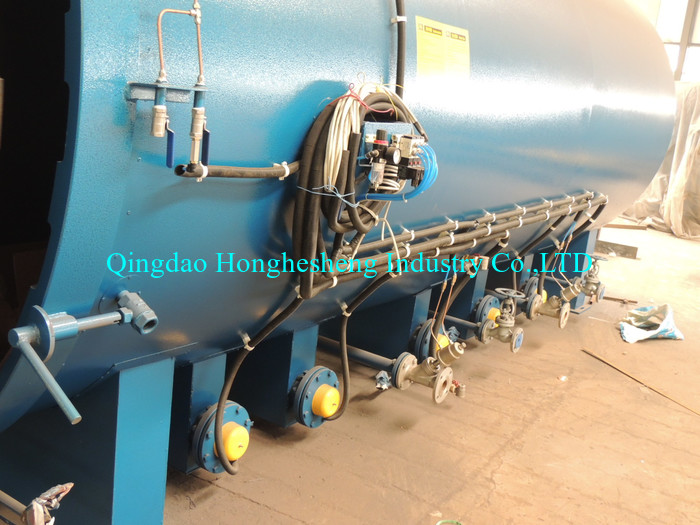

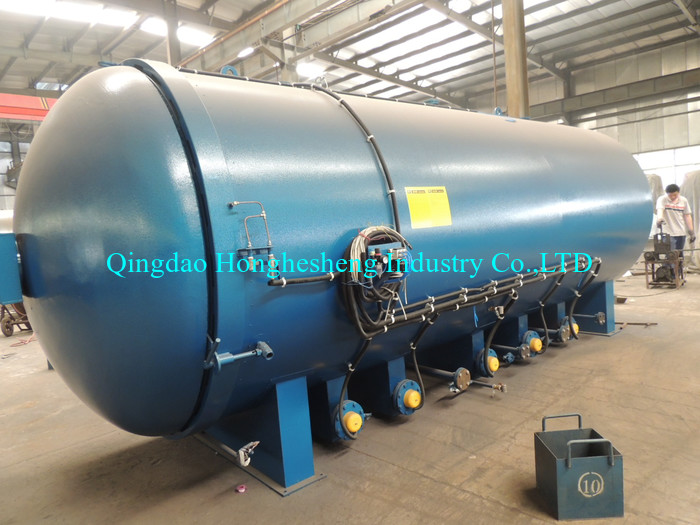

Tyre Retreading Rubber Vulcanizing Tank

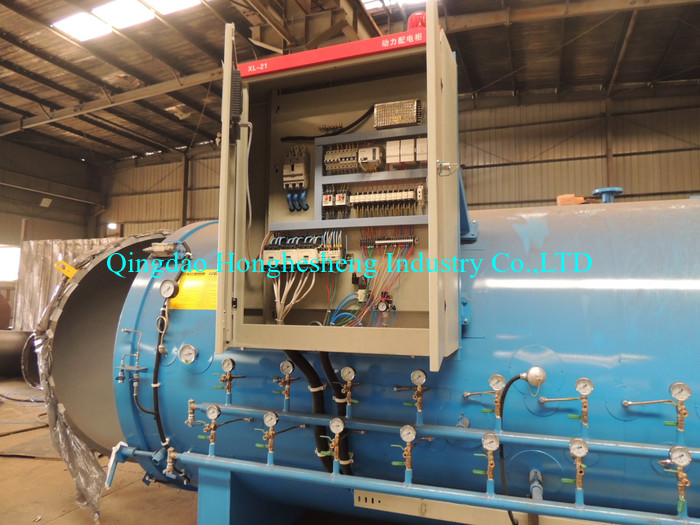

PLC Rubber Vulcanizing Tank

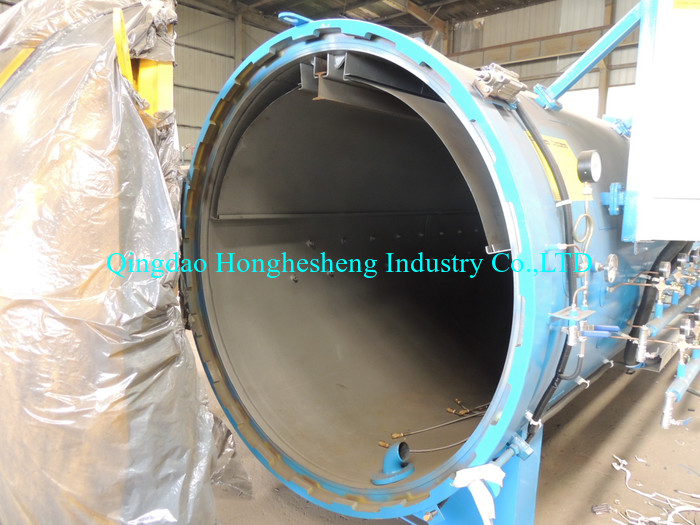

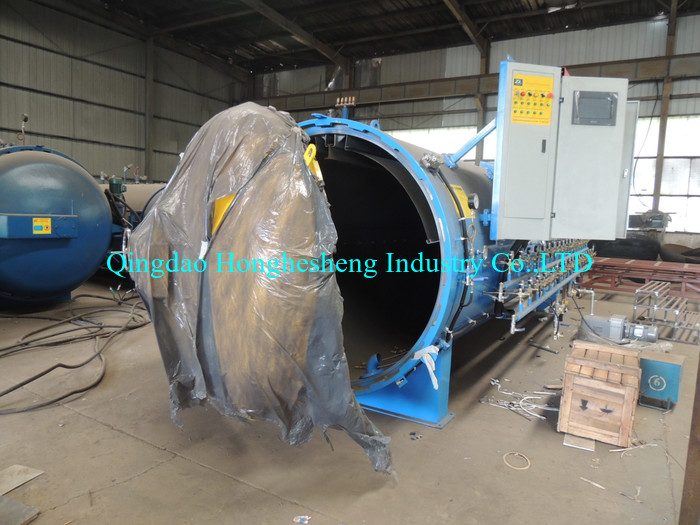

Curing Chamber Autoclave Vulcanizer

Tyre Retreading Rubber Vulcanizing Tank Curing Chamber Autoclave Vulcanizer Images
