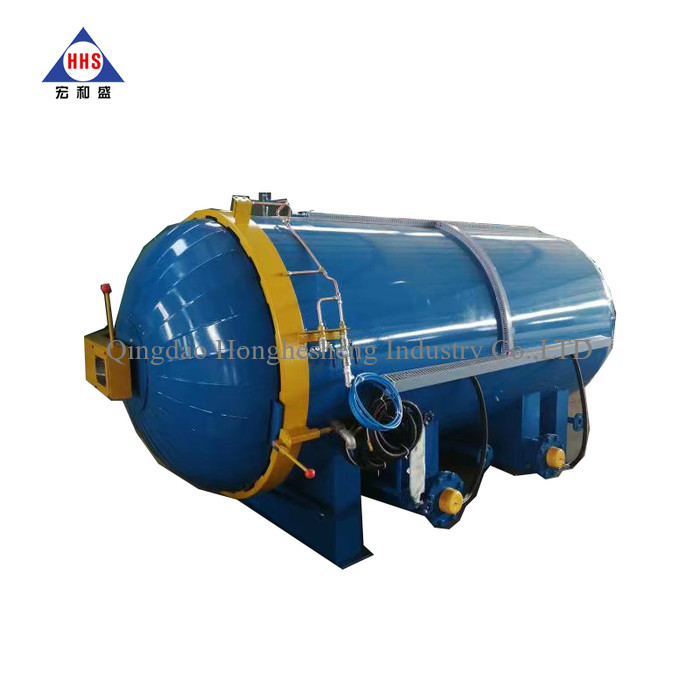

Electric Steam Rubber Shoes Vulcanizing Tank Industrial High Pressure

Brand Name : HHS

Model Number : DN0509

Certification : ASME CE, ASME CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD:8000-78000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 20 working days

Packaging Details : wood package /20-40 container

Max Working Press : 0.65MPa

Warranty : 1 years

Core Components : PLC, Pressure vessel

Color : Customer's Requirements

Advantage : full automatic

Key Selling Points : Easy to Operate

Voltage : 220V/380V/450V

Dimension(L*W*H) : 3200*2200*2300MM

Weight : 64000 KG

Curing time : 2.6~3h

Power : 110 kW

Temperature : 95~120℃

Contact Now

production application

Rubber vulcanization is a chemical process at a given pressure, temperature and time for converting natural rubber into more durable materials by the addition of sulfur. These additives modify the polymer by forming cross-links (bridges) between individual polymer chains. Vulcanized materials are less sticky and have superior mechanical properties. And vulcanization autoclave is used widely for this chemical process. Electric Steam Rubber Shoes Vulcanizing Tank Industrial High Pressure

Widely used in vulcanization of rubber products, SBR thermoplastic as well as the carbonization and degreasing of bamboo, such as, rubber, cable, printing and dyeing, chemical, building materials and other industries. Mainly used in rubber products, rubber hose, rubber roller etc.It aslo can be used in the university laboratory for teaching and research.

Electric Steam Rubber Shoes Vulcanizing Tank Industrial High Pressure

Parameters

Model NO.	Diameter	Length	Capacity	Thickness	Design Temp	Design Pre
EDL1.2-3A.2	1200mm	3000mm	3.4CBM	8mm	190C	0.85MPa
EDL1.5-4A.2	1500mm	4000mm	7.06CBM	8mm	190C	0.85MPa
EDL1.5-6A.2	1500mm	6000mm	10.5CBM	8mm	190C	0.85MPa

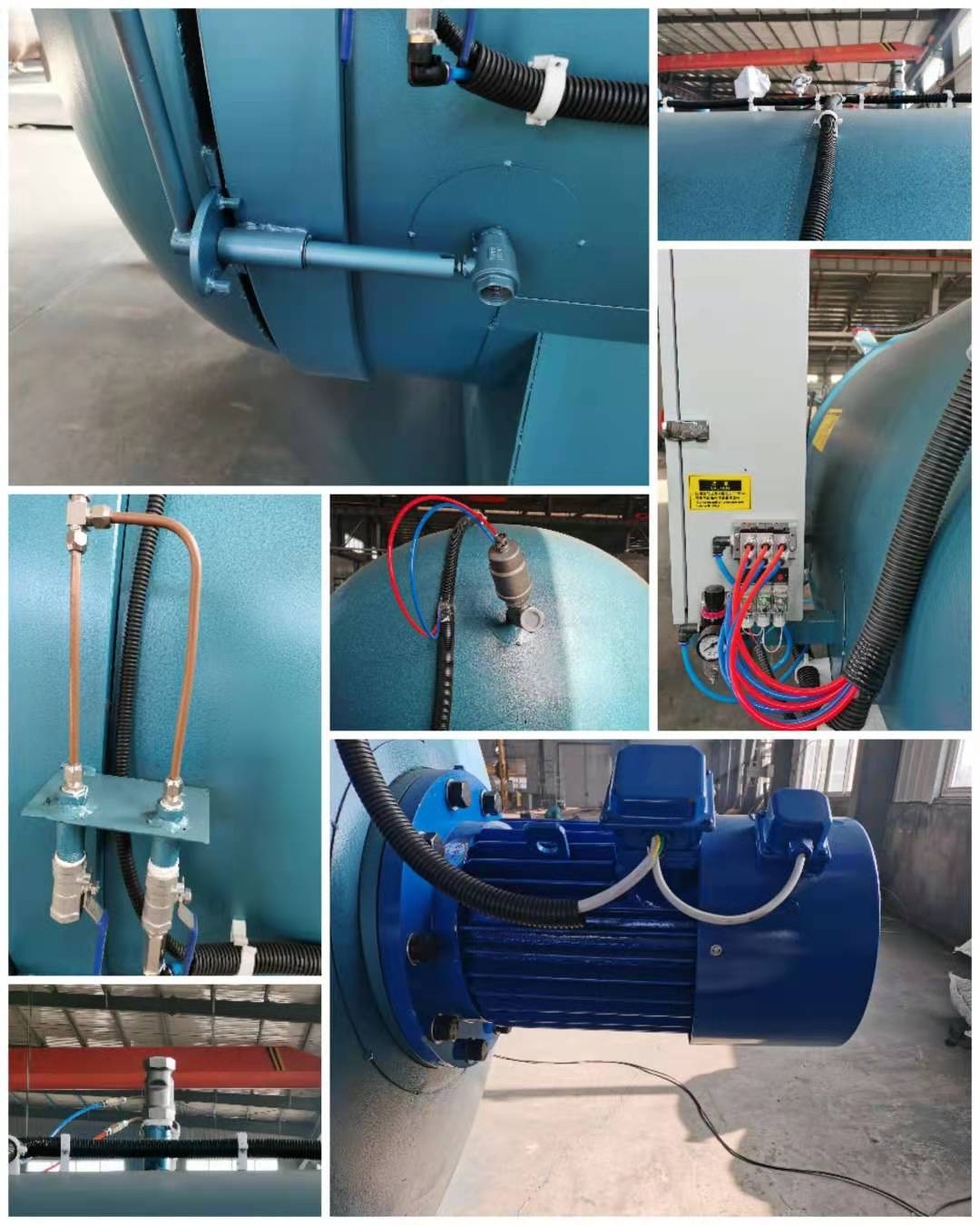

Brand and Material of Major Components

No.	item	material
1	dished head	carbon steel Q345R
2	tank	carbon steel Q345R
3	flange	forged carbon steel
4	safety interlocking device (pressure automatic)
5	track	carbon or stainless steel
6	manual door opening device
7	saddle	carbon steel Q235B
8	High temperature and high pressure fan ventilator	air or water cooling
9	thermal insulation head	carbon steel Q235B
10	Insulation material (double layer)	aluminum silicate cotton
