Brand Name : HHS
Model Number : DN0509
Certification : ASME CE, ASME CE
Place of Origin : Shandong, China
MOQ : 1 set
Price : USD:8000-78000 /SET
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 100 sets/month
Delivery Time : 20 working days
Packaging Details : wood package /20-40 container
Max Working Press : 0.65MPa
Warranty : 1 years
Core Components : PLC, Pressure vessel
Color : Customer's Requirements
Advantage : full automatic
Key Selling Points : Easy to Operate
Voltage : 220V/380V/450V
Dimension(L*W*H) : 3200*2200*2300MM
Weight : 64000 KG
Curing time : 2.6~3h
Power : 110 kW
Temperature : 95~120℃
Tire retreading equipment OTR Chamber
introduction
1, Automatic temperature, pressure and timing controlling. Automatic curing data recording and saving. Equipped with data searching and printing function.
2, The DPC pressure is accurately controlled. The warning and error detecting functions work well, due to the joint working of several security devices .
3, Heating method of the chamber can be customized to electrical heating, steam heating or oil heating.
4, Customize the size according to customer requirements,From 13.00-24 "to 40.00 x57"
Tyre number12.00R20 | 12 | 14 | 16 | 18 | 22 | 25 |
Theoretical steam consumptionkcal/h | 43000 | 52000 | 60000 | 65000 | 70000 | 90000 |
Electric hot-tube power--electrickw | 50 | 60 | 70 | 75 | 80 | 100 |
Electric hot-tube power--steamkw | 8 | 8 | 9 | 9 | 12.5 | 12.5 |
Fan motor powerkw | 4 | 4 | 5 | 5 | 11 | 11 |
Width--uncovered mm | 5900 | 6600 | 7400 | 7800 | 8900 | 9900 |
Width--covered mm | 5100 | 5800 | 6600 | 7100 | 8100 | 9100 |
Practicable work widthmm | 3600 | 4200 | 5000 | 5500 | 6800 | 7500 |
heightmm | 2200 | |||||
depthmm | 2900 | |||||
weightt | 4.6 | 4.9 | 5.3 | 5.52 | 5.9 | 6.4 |
Designed pressureMPa | 0.9 | |||||
Maximum work pressureMPa | 0.8 | |||||
Experimental pressureMPa | 1.1 | |||||
Designed temperature(c) | 180 | |||||
Power supply | AC380V,AC220V,50HZ | |||||
Compressed air sourceMPa | 0.8 |
![]() |

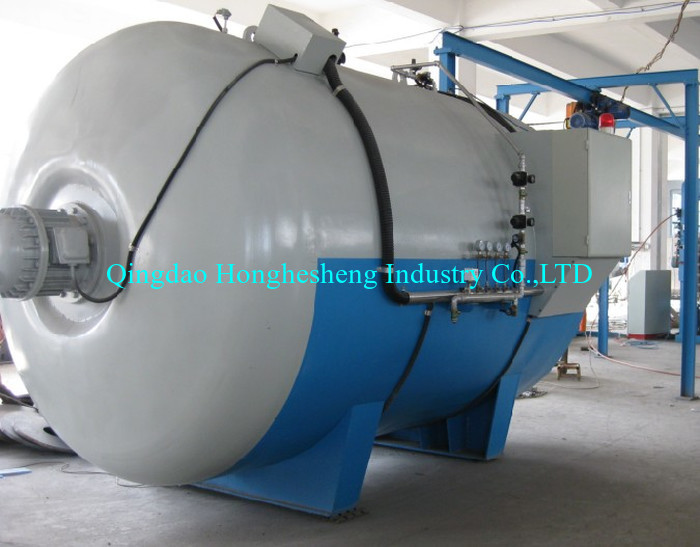

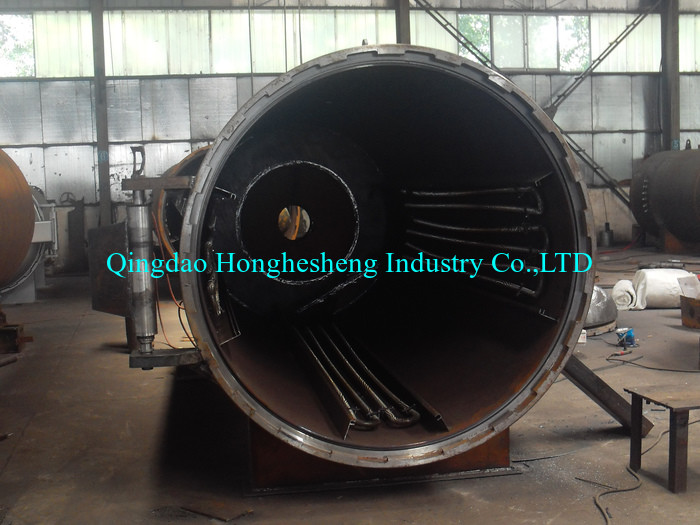

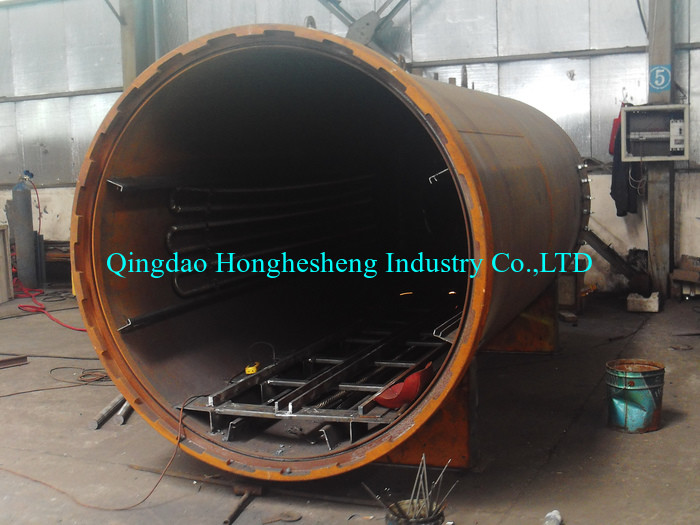

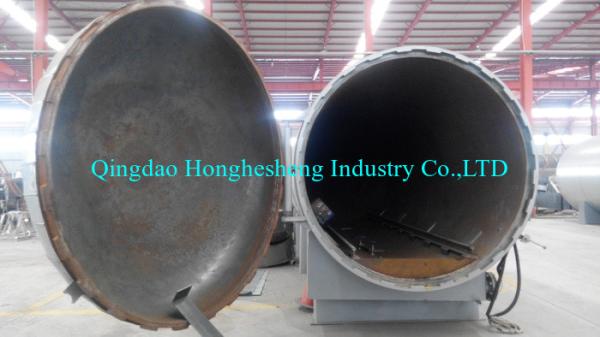

Full Automatic Tire Retreading Equipment OTR Chamber Images |
