Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Brand Name : HHS

Model Number : HD-2-20

Certification : ASME CE, ASME CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD:5000-220000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 20 working days

Packaging Details : wood package /20-40 container

Max Working Press : 1.0 MPa

Warranty : 1 years

Core Components : PLC, Pressure vessel

Color : Customer's Requirements

Advantage : full automatic

Key Selling Points : Easy to Operate

Voltage : 380V/220V,for your optional

Dimension(L*W*H) : 6000MM*2500MM*2500MM

Weight : 11000KG

Work temperature : 150~200℃ curing temperature

Contact Now

Tire retreading vulcanizing tank autoclave



Features
Product Introduction:

The vulcanizer is mainly used for rubber tire retreading, reclaimed rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization.Styrene-butadiene rubber thermoplastic refining, wood, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, It also widely used in the gypsum and its products and other materials autoclaving.



Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Characteristic:
The Automatic rubber belt vulcanizer is a pressure vessel with speed open door. Its openings sealed with inflatable silicone ring or internal pressure self-tight rubber pad. Mechanical or manual gearing is used to lock and open the lid, reasonable structure,convenient operation, good sealing performance, the temperature in the tank is uniform,furthermore, complete safety accessories(equipped with safety interlock device).

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

The Used tire vulcanizer be divided into the followings:
According to the structure:
1. horizontal 2. vertical
According to the heating medium:
1. steam heated 2. conducting oil heated 3. compressed air electric heated
According to the heating method:
1. direct 2. indirect
According to the control mode:
1. manual 2. electromechanical integration 3. computer-controlled



Size Information
Item
800
1200
1500
1700
2000
2600
Inner diameter(mm)
800
1200
1500
1700
2000
2600
Canister length(mm)
22000
3000
3000
4000
5000
10000
Number of lid sawtooth
12
12
14
14
16
24
thickness of lid (mm)
10
10
10
10
16
14
Thickness of the tank body(mm)
10
10
10
10
12
14
Working pressure(MPa)
0.8
0.8
0.8
0.8
0.8
0.55
Dimensions(mm)
(length*width*height)
22766*1445
*1170
4010*1575
*1670
3960*2150
*2050
4925*2162
*2070
6200*2590
*2424
11722*3360
*4136
Weight(Kg)
5580
2017
2950
3835
6500
16775



Pressure Vessel Vulcanizing Autoclave For Rubber Tire RetreadingPressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Pressure Vessel Vulcanizing Autoclave For Rubber Tire RetreadingPressure Vessel Vulcanizing Autoclave For Rubber Tire RetreadingPressure Vessel Vulcanizing Autoclave For Rubber Tire RetreadingPressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Packaging & Shipping

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

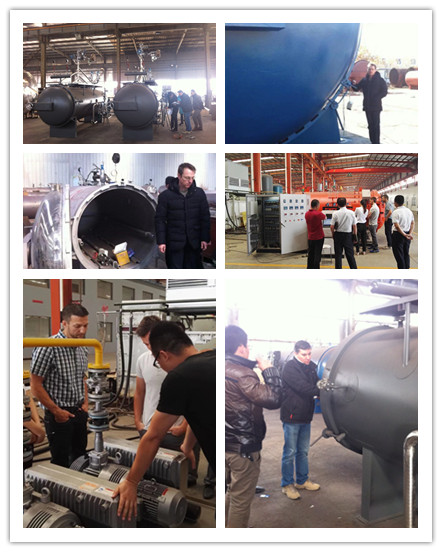

Trade Shows
