250-500mm Piston Stroke Rubber Plate Vulcanizer Steam Heating

Brand Name : HHS

Model Number : XLB50-300

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 4000-10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : standard wood package or based on clients request

Type : Vulcanizer

Colour : blue white,customized

Voltage : customized

Power(W) : 5.5KW

Temperature : 300 degree

Working Layers : 1-4layers

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 2000 kg

advantage : high production

Contact Now

Vulcanizing press/rubber plate vulcanizer/rubber curing press rubber mat making machines

Product Description

This machine belongs to large vulcanizing machine series, mainly for the rubber vulcanization, generally use the frame type structure. Its unique features are:

1.compact structure, beautiful modelling and strong clamp force

2.Per working position can be heated to 220 degree Celsius (adjustable), the lower template can control temperature in room temperature condition to form an effective temperature difference

3. its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc.

parameter

Item	XLB-D(Y)100010001	XLB-D(Y)120012001	XLB-D(Y)150015001
Nominal molding power	1.60-2.00MN	3.15MN	4.00-5.00MN
Working layer number	1	1	1
Piston stroke	250-500mm	250-500mm	250-500mm
Main motor power	3.0kW	3.0kW	3.0kW
Plate clearance	125-500mm	125-500mm	125-500mm
Heating method	Steam,ecectricity	Steam,ecectricity	Steam,ecectricity
Configuration	Frame	Frame	Frame
Electric pipr heating power	12kW	15.6kW	27kW

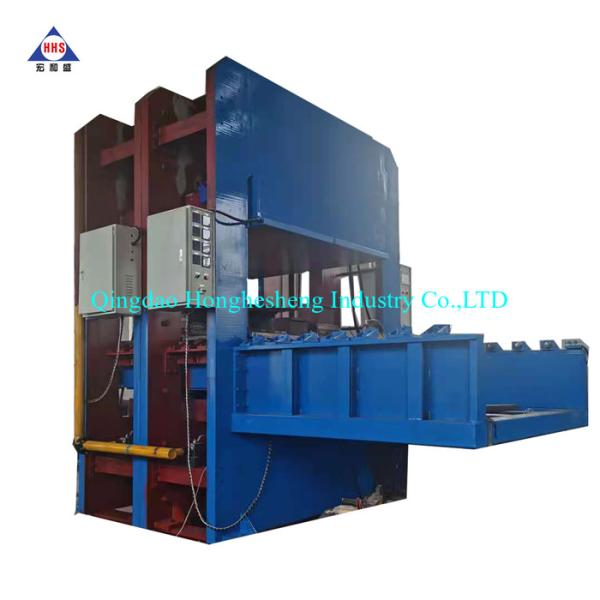

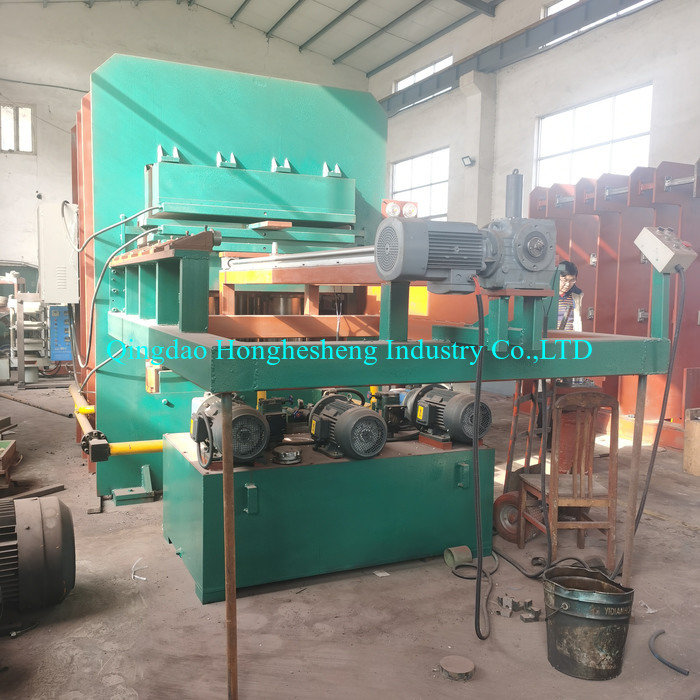

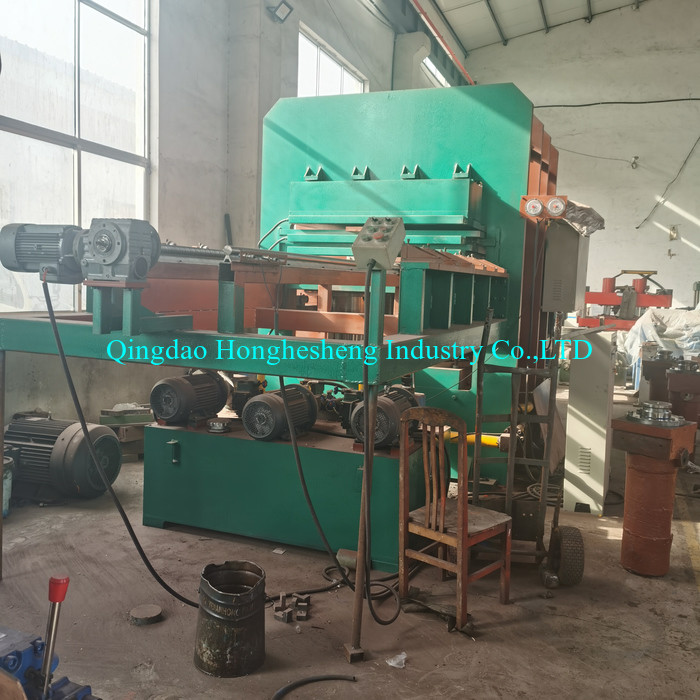

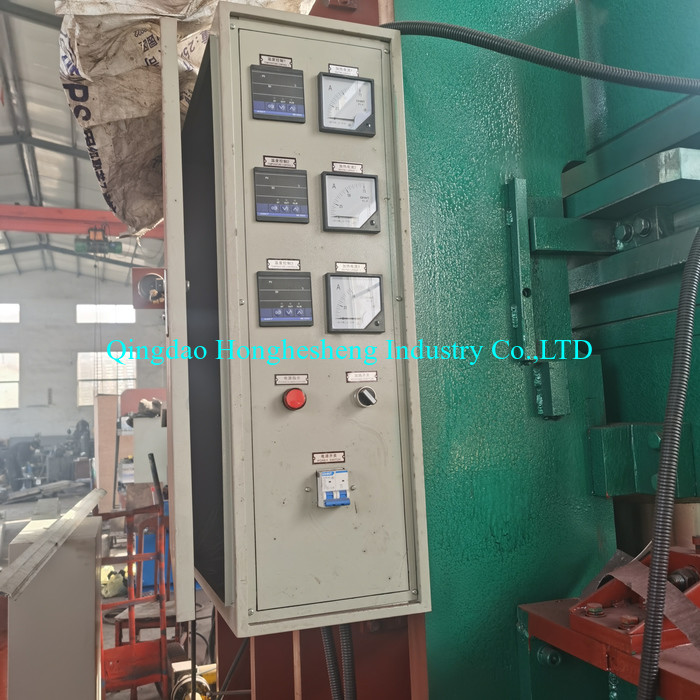

◊Machine Pictures:

250-500mm Piston Stroke Rubber Plate Vulcanizer Steam Heating

◊Related products:

250-500mm Piston Stroke Rubber Plate Vulcanizer Steam Heating

◊Company Information:

(1) Qingdao HHS Machinery Manufacturing Co., Ltd. was 100% of the factory, to meet all your requirements;
(2) CE, ISO9001 certification;
(3) a one-year warranty and long-term technical support;
(4) supply of all kinds of rubber machinery: rubber press , rubber vulcanizing machine , rubber mixer , rubber refiner,rubber kneading machine,rubber injection moulding machines, vacuum hot press molding machine , hydraulic machine, rubber tableting machine,hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; cut plastic machine;

(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
