Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine

Brand Name : HHS

Model Number : XLB50-300

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 4000-10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : standard wood package or based on clients request

Type : Vulcanizer

Colour : blue white,customized

Voltage : customized

Power(W) : 5.5KW

Temperature : 300 degree

Working Layers : 1-4layers

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 3000 kg

advantage : high production

Contact Now

Fully Automatic Rubber Hydraulic Vulcanizing Press Machine/Rubber Press Machine

1. Structure:

♥ This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet

♥ Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device; used as hydraulic press machine.

2. Technical Parameters

Parameters/version	XLB3503502	XLB4004002	XLB5005002	XLB6006002/4	XLB7508502	XLB100010002
Mould closing force	0.25MN	0.5MN	0.8MN	1.0MN	1.6MN	2.5MN
Hot plate spacing	125mm	125mm	125mm	125mm	125mm	200mm
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250mm	250mm	250mm	250/500mm	250mm	400mm
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2kw	2.2kw	2.2kw	2.2kw	3kw	5.5kw
The thermal power	2.4kw/board	3kw/board	3kw	7.5kw/board	9kw/board	10.8kw/board
Size(LWH)mm	14504001350	16004001440	14506901818	18807801660	210010101900	24009602500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

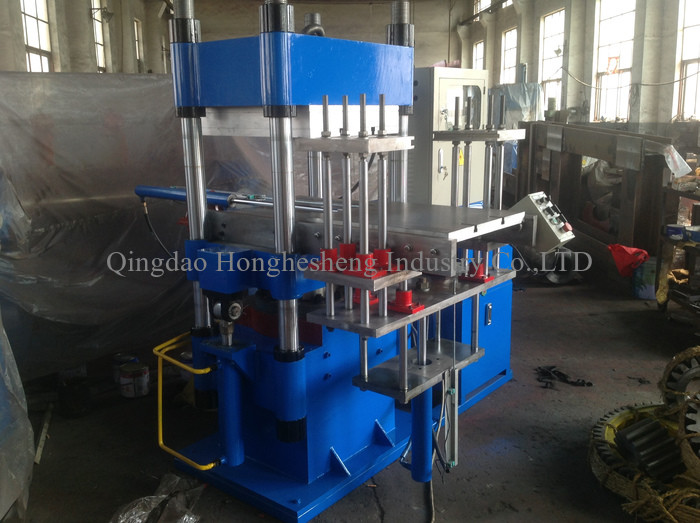

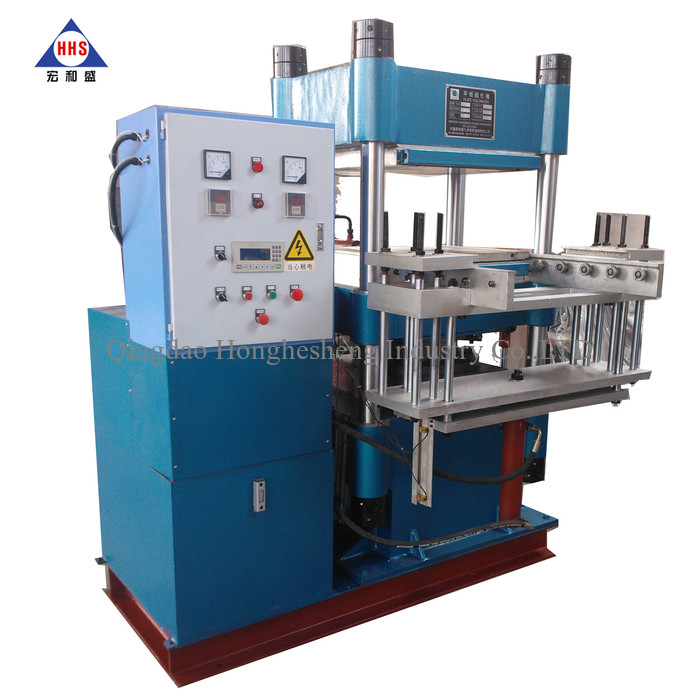

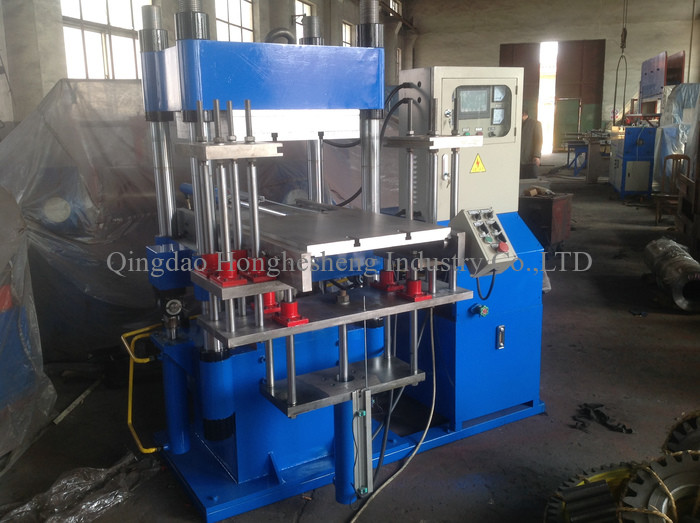

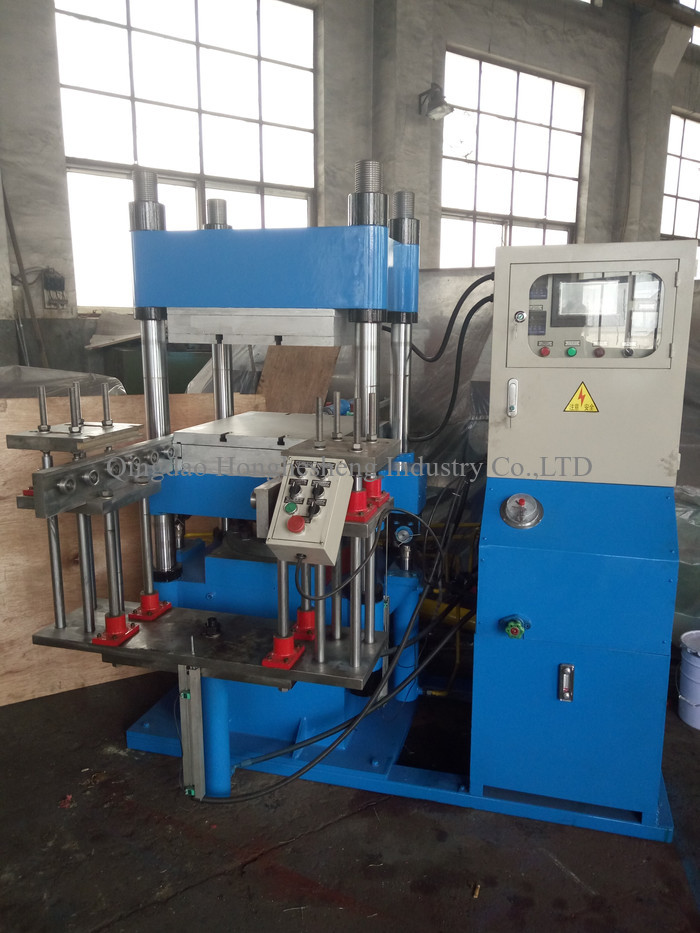

3. Detailed Pictures

Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
