Tire Tread Grooving Machine Double-C Type Vulcanizing Press With CE ISO Certificate

Brand Name : HHS

Model Number : XLB800-2200

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 50000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : Wooden cases / Containers, etc

Type : Vulcanizer

Colour : all colour

Voltage : customized

Power(W) : 2.2kw

Temperature : max 300 degree

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 5000 kg

Contact Now

New Design Tire Tread Grooving Machine/ Double-C Type Vulcanizing Press With CE ISO Certificate

Rubber vulcanizer is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products. Being frame type, the machine is different from the column type , it is allowed to install larger diameter hydraulic cylinder, reducing the quantity of cylinders, with simple structure, and little maintaince wok. The frame can bear more stress and it has cheap price, nice surface, easy to operate.

Tire Tread Grooving Machine Double-C Type Vulcanizing Press With CE ISO Certificate

Features:
1.Low energy consumption
2.Convenient in maintenance
3.High capacity with simple operation
4.Automatic PLC system

Structures:
1. Two dual-action cylinders are adopted for fast mold open / close;
2. Provided with mass flow pre-fill valve;
3. Automatic mold forward / backward;
4. PLC controlled;
5. Unit area pressure no less than 45kg/cm ² to ensure the density of the tyre-surface
6. Multiple options of layer number and tables;
7. Hydraulic pressure components and electrical equipments are imported or of local famous brand, to ensure reliable performance.
8. Each batch tyre tread vulcanizing time is 22-25 minutes.
9. We also can according to the customers' requirement, and design the non-standard type of tire tread vulcanizing machine.

Specifications:

Model	Total Press(MN)	Heating Plate Size(mm)	Plates Daylight	Working Layer No.	Piston Stroke(mm)	Hydraulic Cylinder Diameter(mm)	Hydraulic Cylinder No.(group)	Open Mould Speed(mm/s)	Close Mould Speed(mm/s)	Hydraulic System Pressure(Mpa)
XLB-60062001	11.20	60063001	200	1	200	400	6	>=12	>=12	16.4

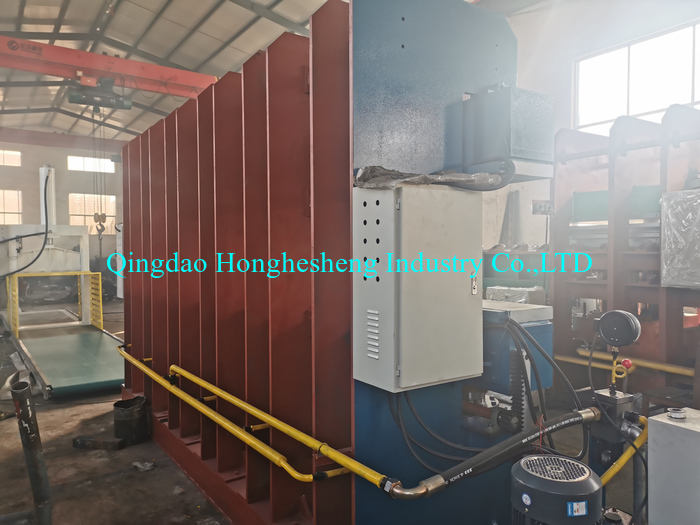

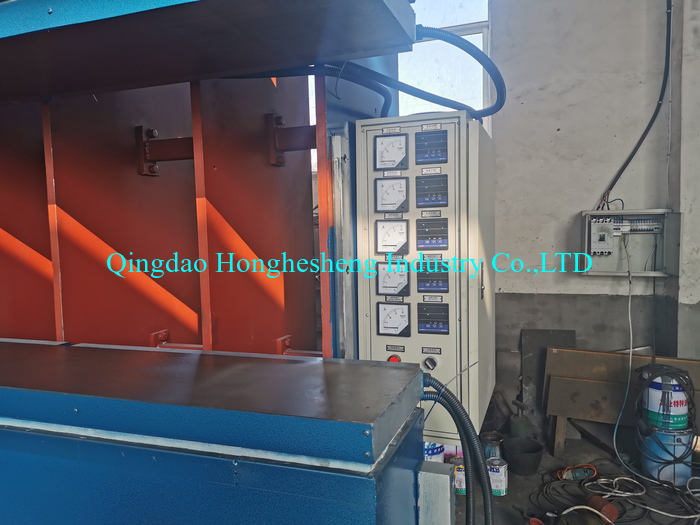

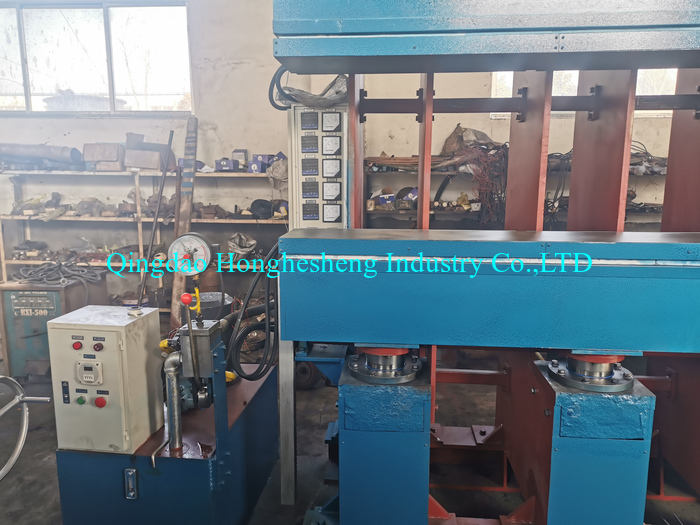

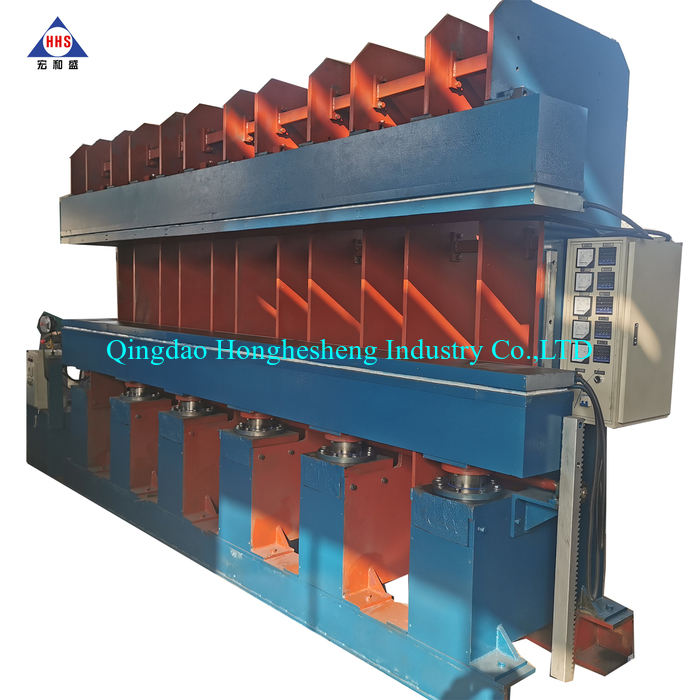

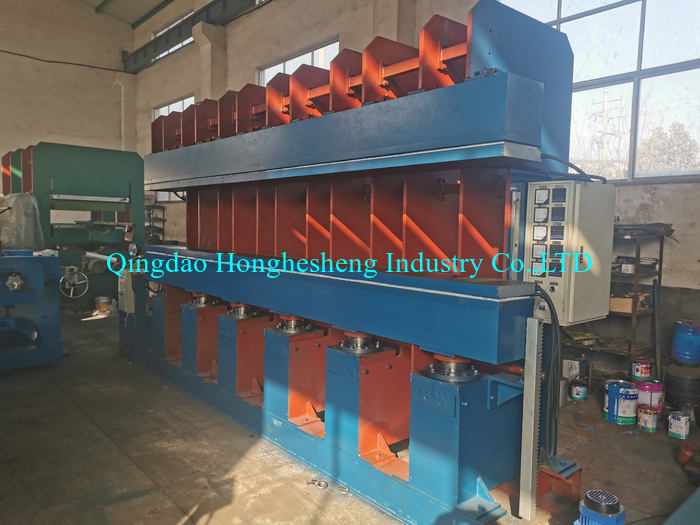

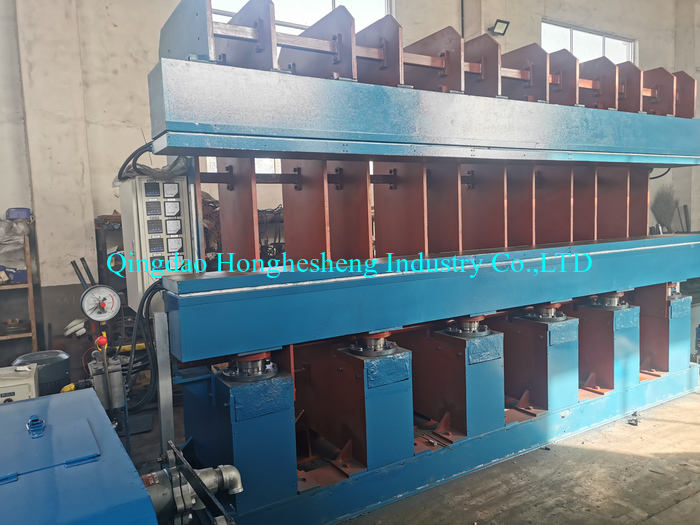

Pictures:

Tire Tread Grooving Machine Double-C Type Vulcanizing Press With CE ISO Certificate

Tire Tread Grooving Machine Double-C Type Vulcanizing Press With CE ISO Certificate
