OEM 160T Solid Tire Vulcanizing Machine 160tons Making Machine

Brand Name : HHS

Model Number : XLB160T

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD5000-10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Month

Delivery Time : 15-30 work days

Packaging Details : standard wood package or based on clients request

Type : Vulcanizer

Colour : blue white,customized

Voltage : customized

Power(W) : 5.5KW

Temperature : 300 degree

Working Layers : 3layers

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

advantage : high production

Contact Now

OEM Made 160T Solid Tire Vulcanizing Machine 160tons Making Machine

Technical Parameters:

Type	XLB-1200×1200×2	XLB-1300×2000×1	XLB-1200×2500×1	XLB-1500×2000×1	XLB-2000×3000×1	XLB-1400×5700×1
Total pressure(MN)	315t	560t	750t	1000t	1800t	2800t
Plate size(mm)	1200×1200	1300×2000	1200×2500	1500×2500	2000×3000	1400×5700
Daylight(mm)	200	400	400	400	400	400
Layer	2	1	1	1	1	1
Piston stroke(mm)	400	400	400	400	400	400
Plate unit area pressure (kg/ cm2)	22	21.5	25	33.5	30	35
Main motor power(KW)	3	8	9.5	11	26	43.5
Overall dimension (L×W×H)(mm)	1685×1320×2450	2000×1860×2500	2560×1700×2780	2810×1550×3325	2900×3200×2860	2400×5800×3600
Weight (kg)	9500	17000	20000	24000	66000	110000

Features:

1.Cylinder adopts advanced seals constructure , it owns reasonable design with reliable function

2.Cylinder is made of QT-500-7 , diameter is 250mm. Totally 2 cylinders

3.Beam and plateform are all welded by high quality Q235A carbon steel. After welding , they are futhure processed by manual vibration or high temperature tempering processing to avoid warping

4.Hot plate is welded by high quality Q235A carbon steel. After welding , it is futhure processed by manual vibration or high temperature tempering processing to avoid warping

5.Seal is PU seals , it is oil resistant , anti-aging , wear resistant

6.Heatiing shield : its calcium silicate board , pressing pressure is 3.5Mpa , coefficient of heat insulation is 0.031

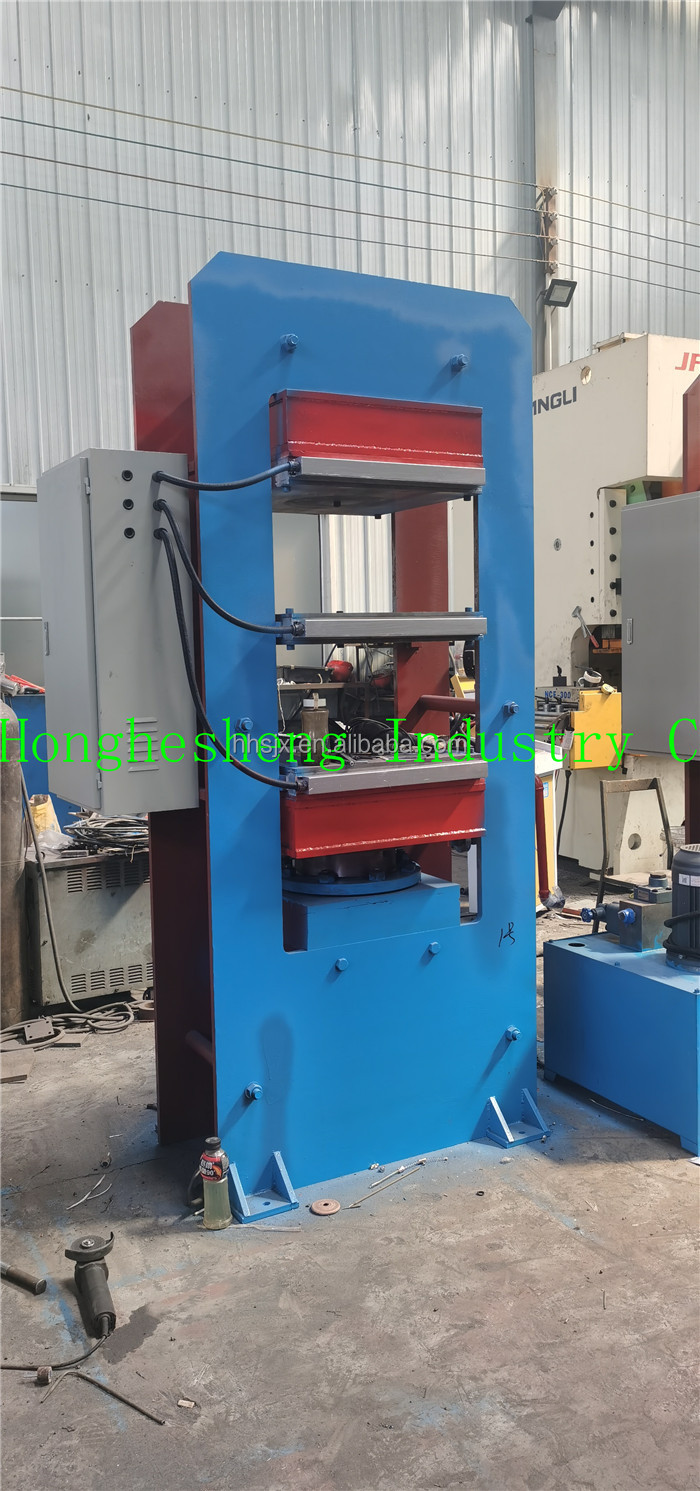

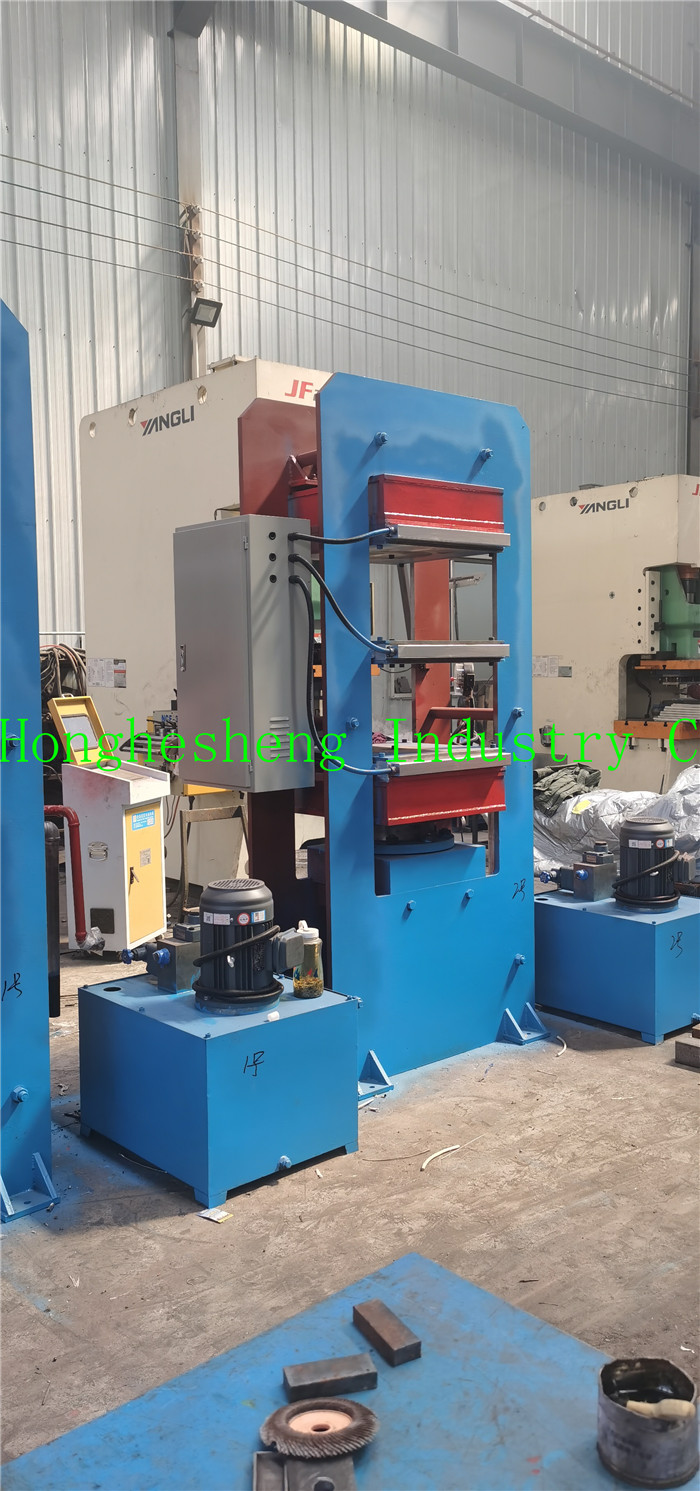

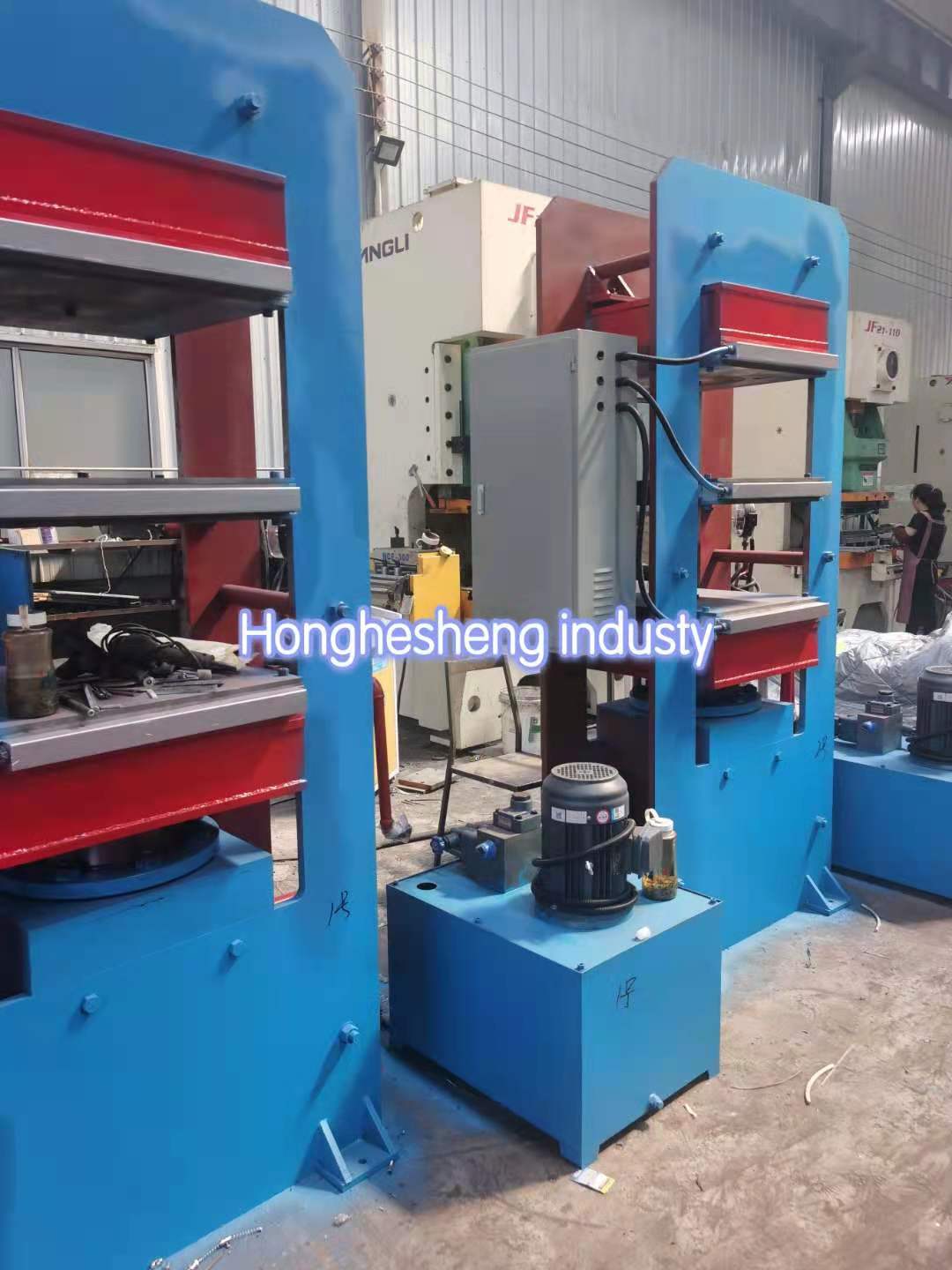

Detailed Pictures

OEM 160T Solid Tire Vulcanizing Machine 160tons Making Machine
