25T 50Ton Water Cooling Vacanizing Press Machine For Laboratory Use
small lab vulcanizer machine
rubber product factory vulcanizing machine for production
Purpose:
plate vulcanizing machine is a new type of hydraulic plate vulcanizing machine. This machine is suitable for vulcanization of all kinds of rubber products. It is a necessary equipment for forming and processing plastics, rubber foams, bakelite products and various thermosetting materials.
Parameter:
| Model | HHS-25T | HHS-50T | HHS-100T |
| Plate Size | 350×350mm | 400×400mm | 600×600mm |
| Working Layer | 1 layer (can be added by 1) |
| Plate Distance | Single layer 75-280mm (optional); Double layer 110mm |
| Maximum Hydraulic Pressure | 16Mpa | 16Mpa | 16Mpa |
| Cylinder Diameter | 152mm | 200mm | 285 or 300mm |
| Maximum Temperature | 200 ℃ |
| Motor | Three-phase motor |
| Structure | Four-post type |
| Power(each layer of hot plate) | 2400W | 2700W | 3000W |
| Weight | About 700kg |
| Voltage | 380V |
| Size | 1230*620*1300mm |
| Special Requirements | Customized according to requirements |
| Standard Accessories | Host |
| Optional | Heating plate 1 layer; rubber sample preparation mold; plastic sample preparation mold; automatic decompression; plastic products
plus water cooling |
| Prepared by Customer | No. 46 Great Wall hydraulic oil : 24kg or 16L/two barrels; 6 square or 8 square, 3+2=5 core waterproof wire (with grounding); |
Why Choose Us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity
10 oil cylinder used for 4years

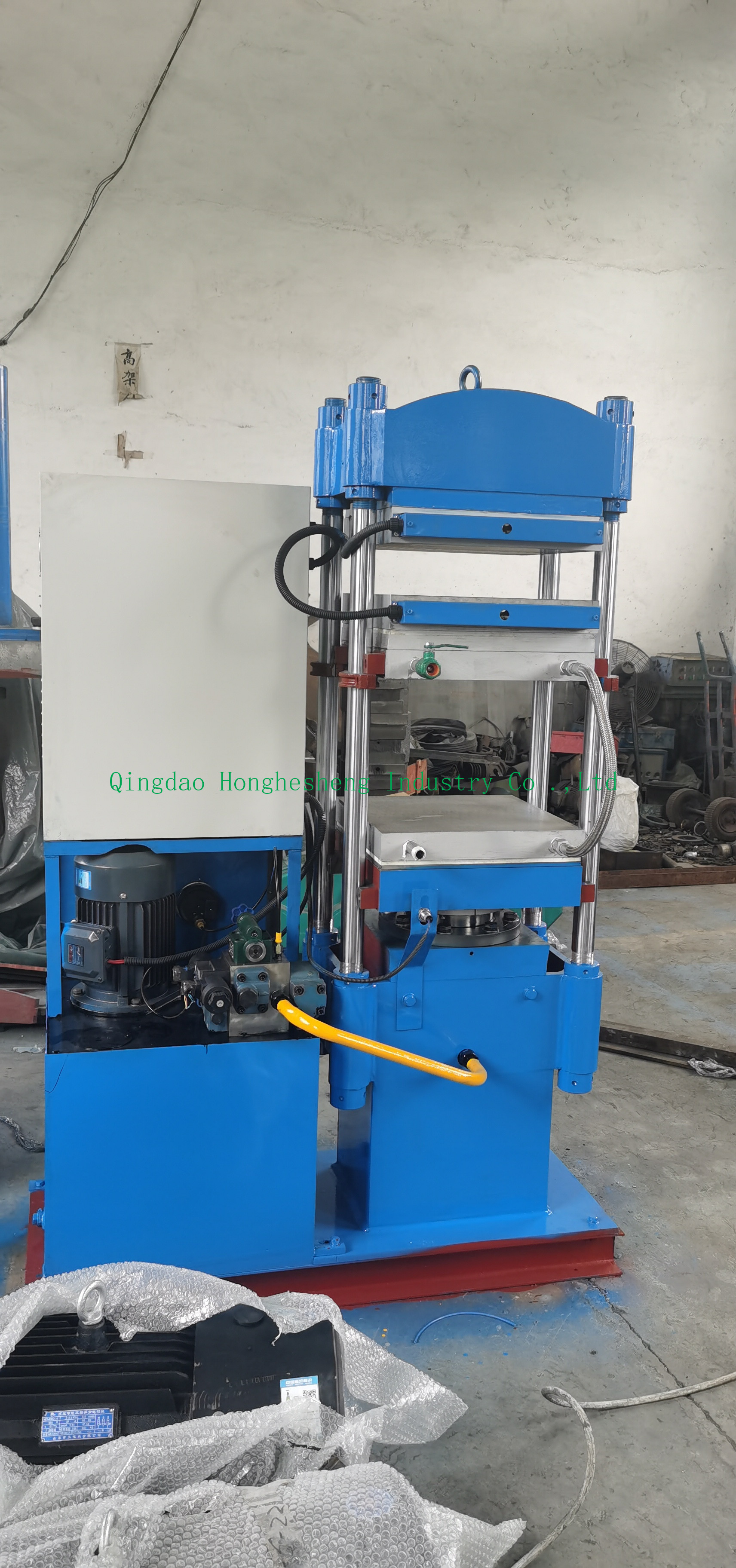

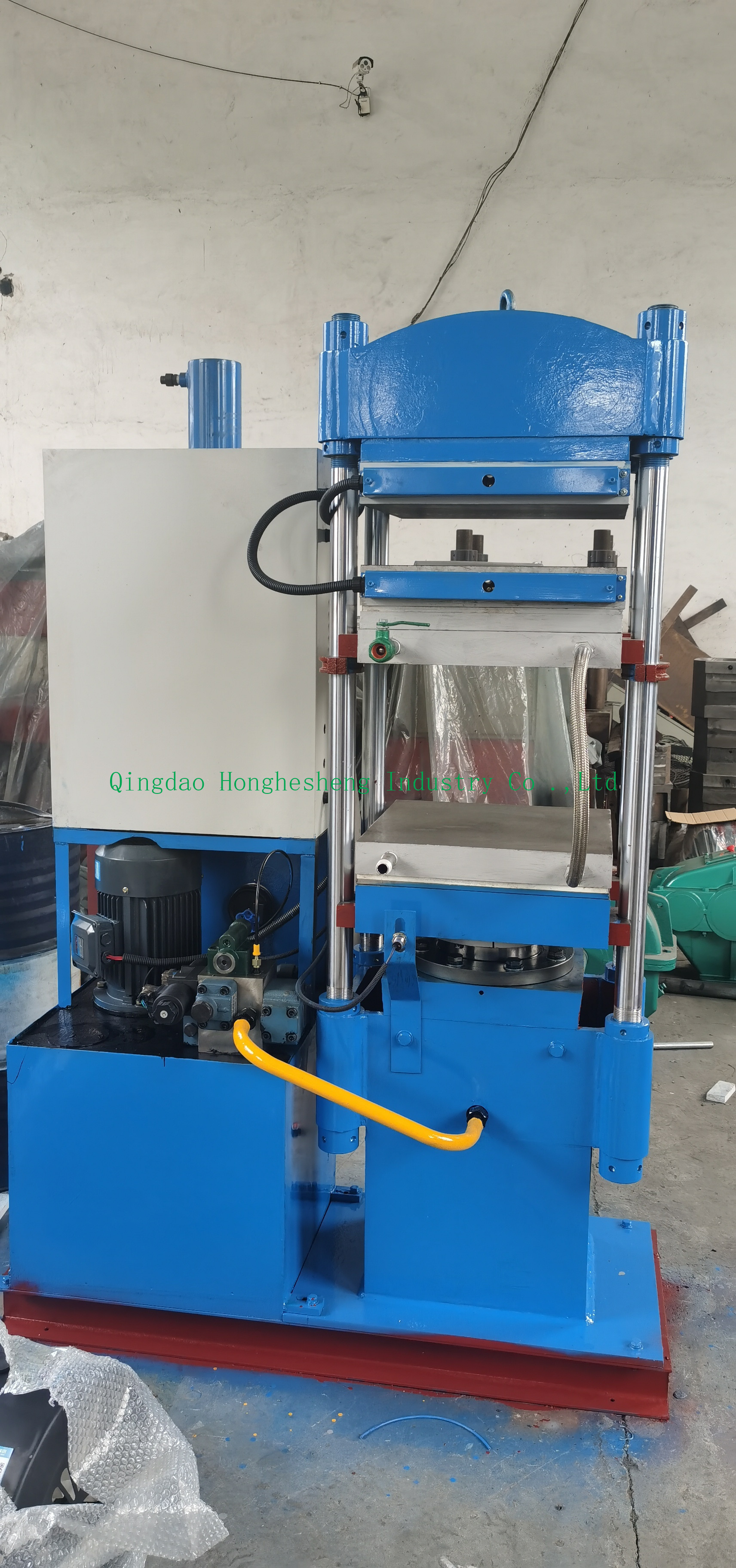

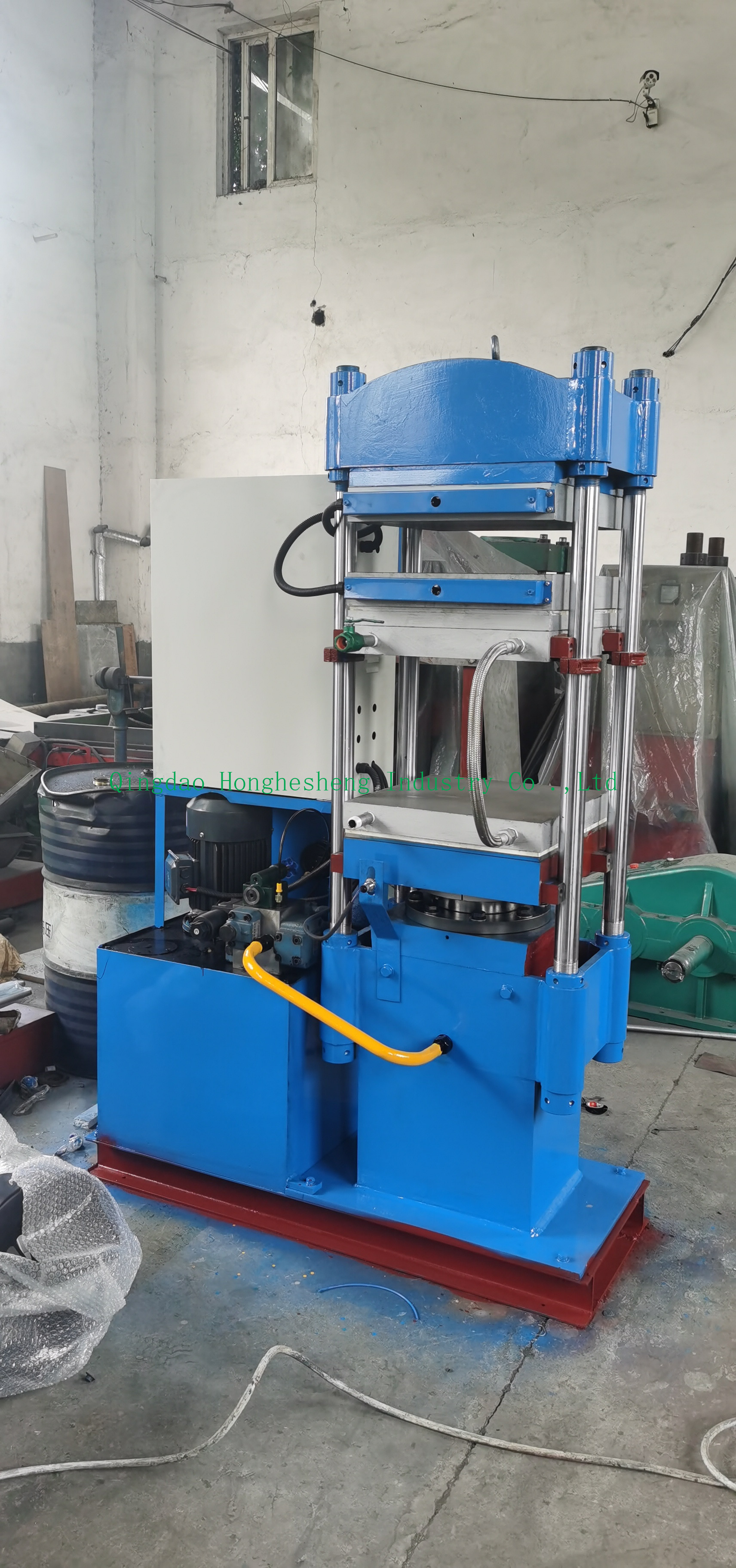

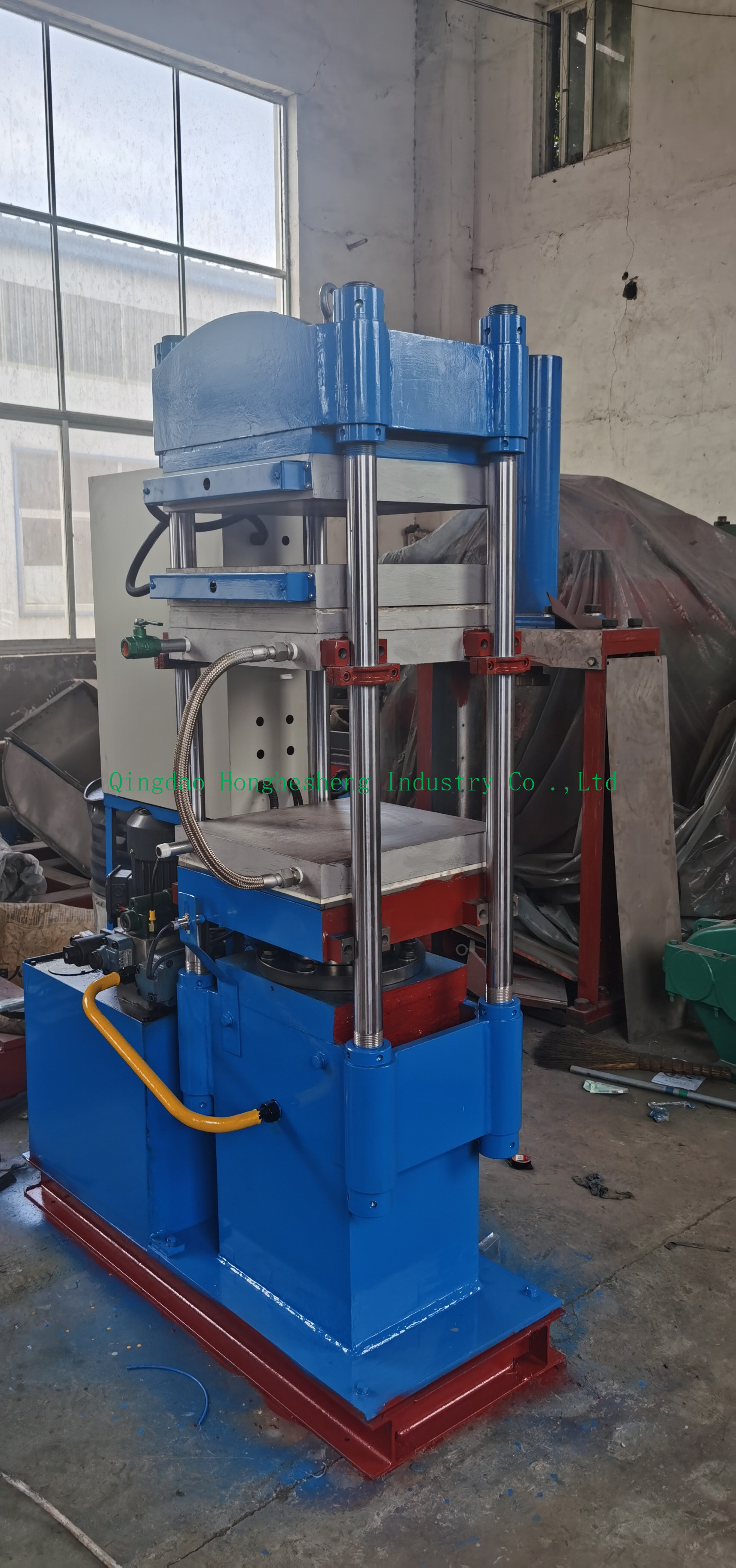

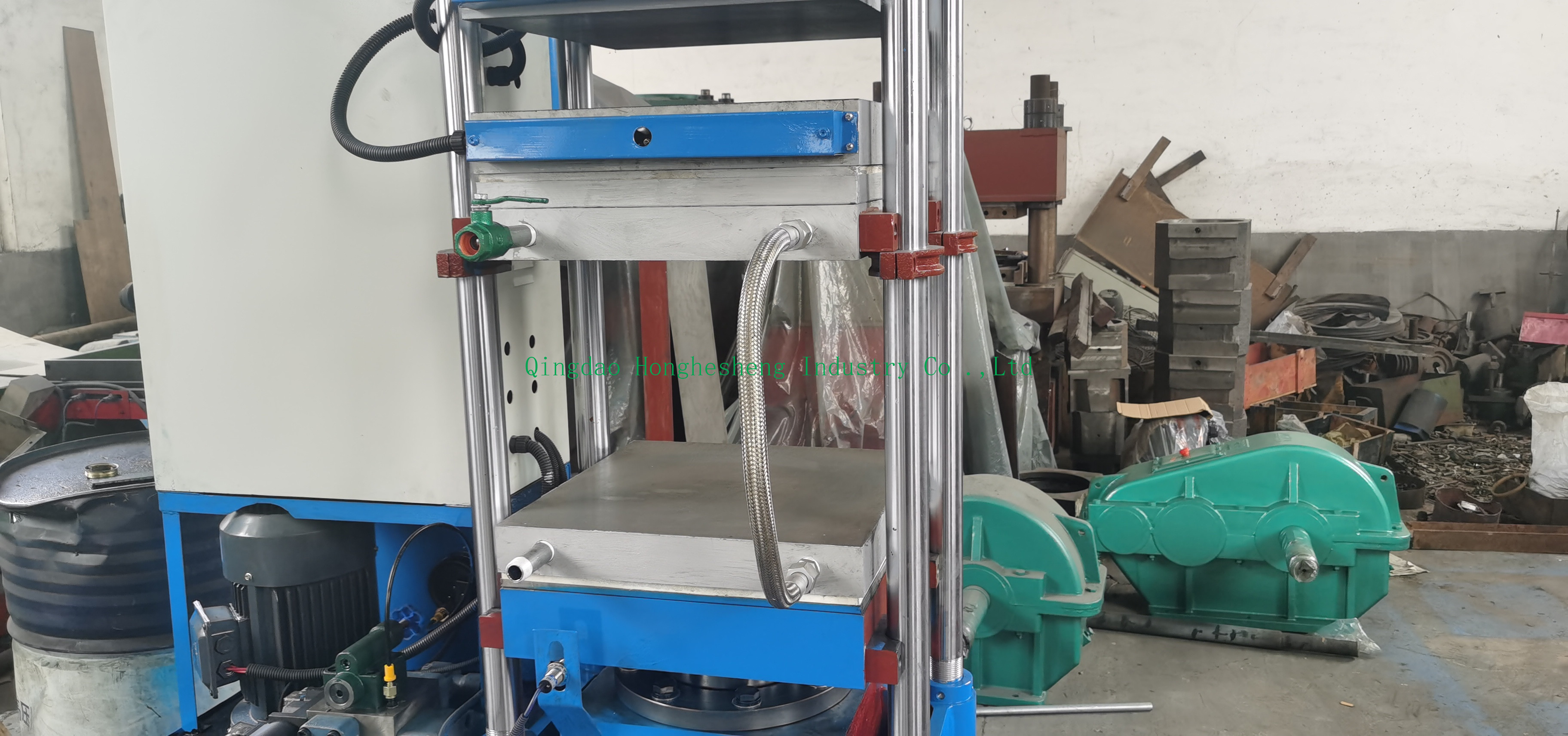

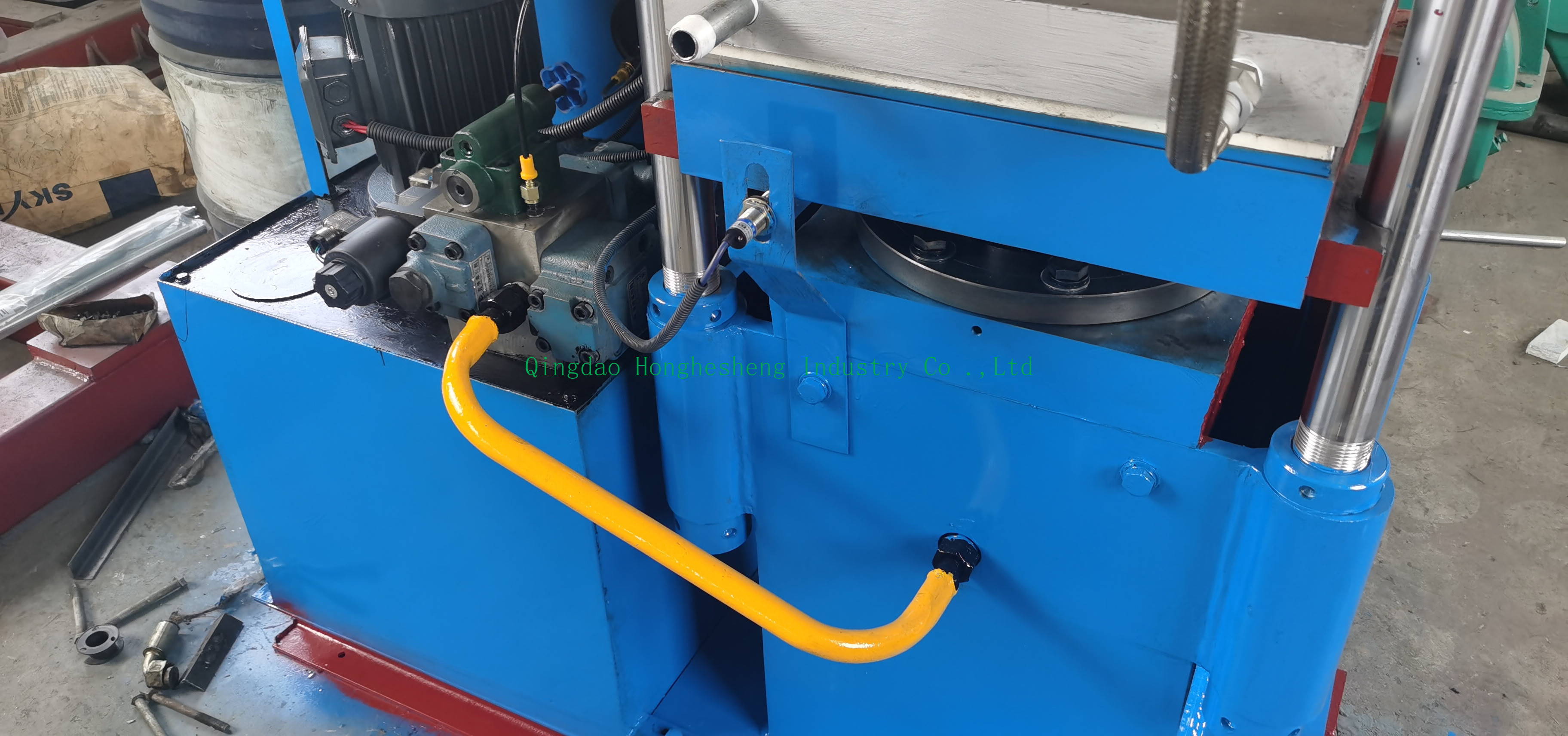

Detailed Pictures
why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity
