50Ton column vulcanizing press machine PLC control

Brand Name : HHS

Model Number : XLB50-300

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 2000-5000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : standard wood package or based on clients request

Type : Vulcanizer

Colour : blue white,customized

Voltage : customized

Power(W) : 5.5KW

Temperature : 300 degree

Working Layers : 1-4layers

Heating : electricity , steam heating , conduction oil heating .

Weight : 3000 kg

advantage : high production

Contact Now

50Ton Column Vulcanizing Press Machine PLC Control

Rubber vulcanizing press machine mainly consists of cylinder , heating plate , piston , electrical cabinet , hydraulic station , etc . It is widely used to vulcanizing different types of rubber and plastic products

Product Application

Applicable for various rubber moulding production

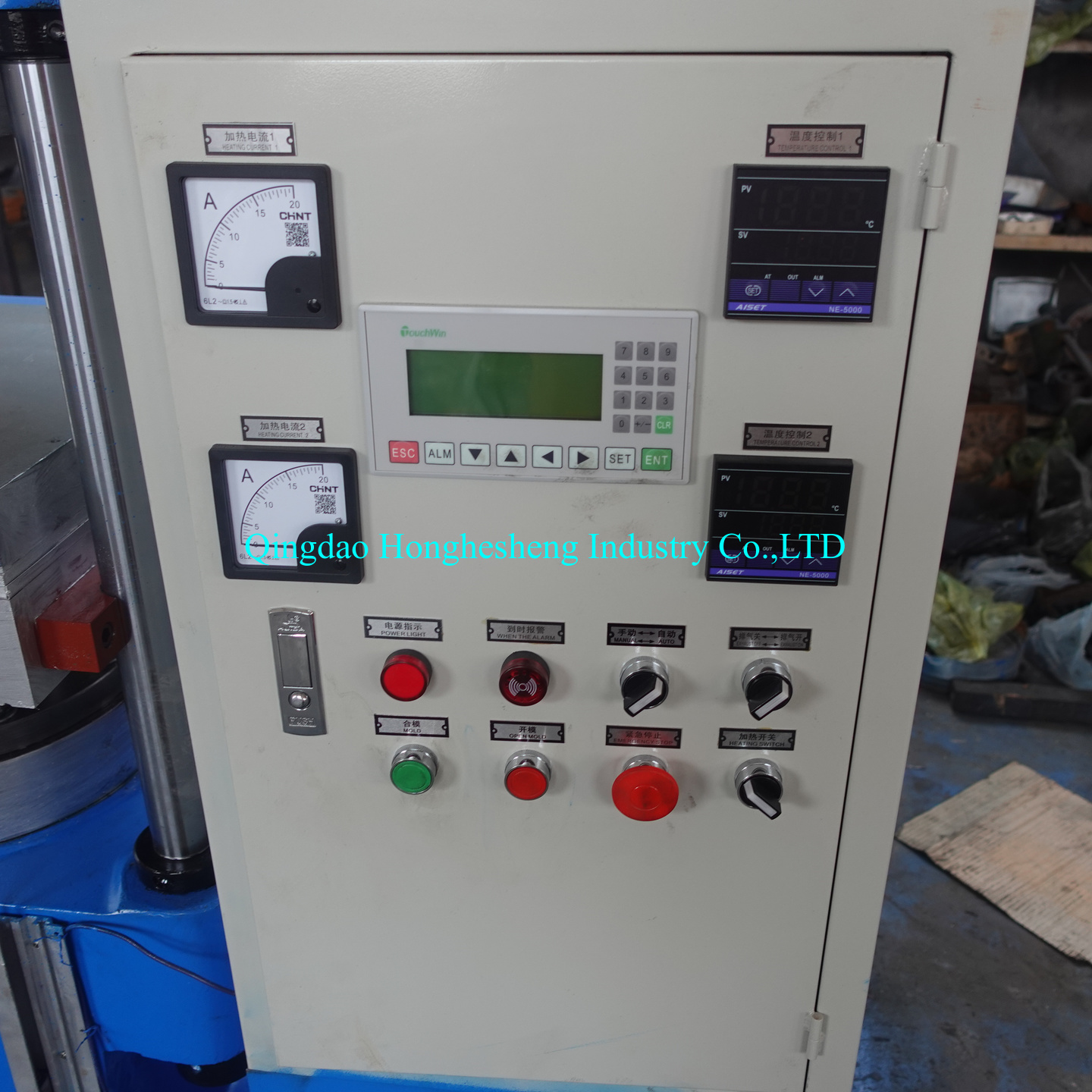

PLC control & touch screen
Auto mold closing, air exhaust, temperature control, timing setting
Custom mold push out system

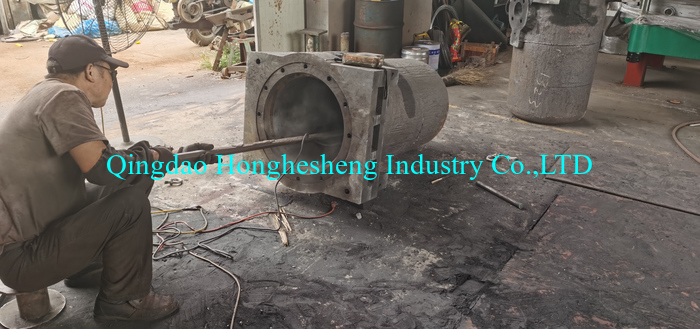

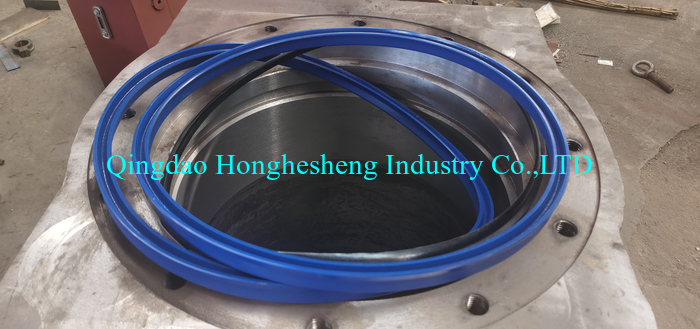

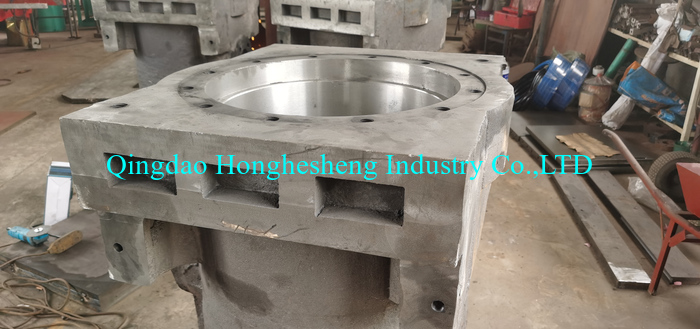

Well-sealed hydraulic cylinder with precise grinding and finishing

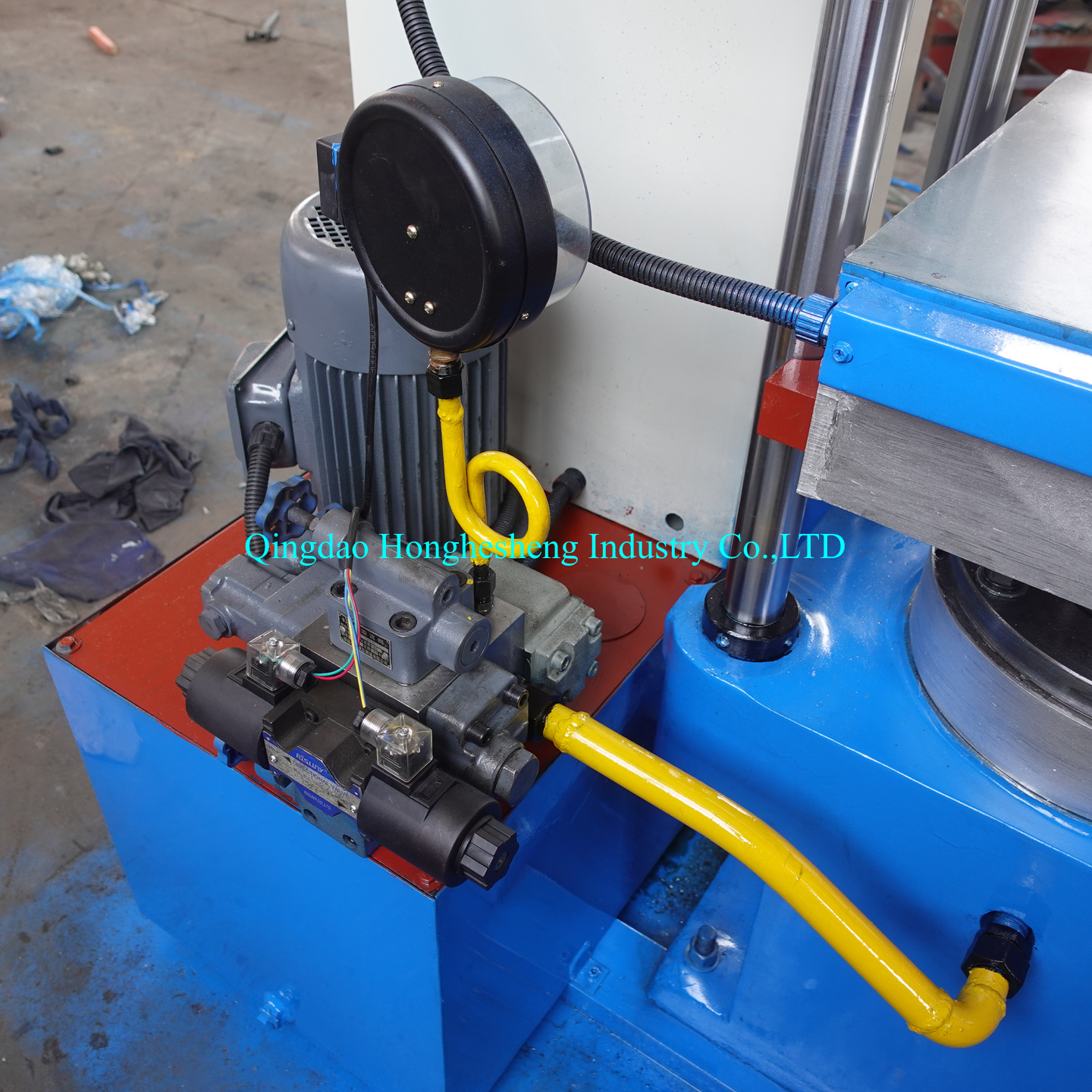

Stable hydraulic pressure station

Parameter

Model	XLB-50	XLB-100	XLB-200	XLB-300	XLB-350	XLB-400	XLB-500
mold closing force	50T	100T	200T	300T	350T	400T	500T
system pressure	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa
clamping stroke	280mm	280mm	300mm	300mm	300mm	300mm	300mm
rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s
plate size	350350 400400	450450 500500	510540 600550	700*650	700*700	900*800	700700 800800 950*800
daylight	350	350	350	350	350	350	350
Max temperature	250	250	250	250	250	250	250
motor	5.5	5.5	7.5	11	11	13	13
heating power	9.6	9.6	18.6	20.6	20.6	27.8	27.8
Oil capacity	160L	270L	320L	400L	400l	500L	600L

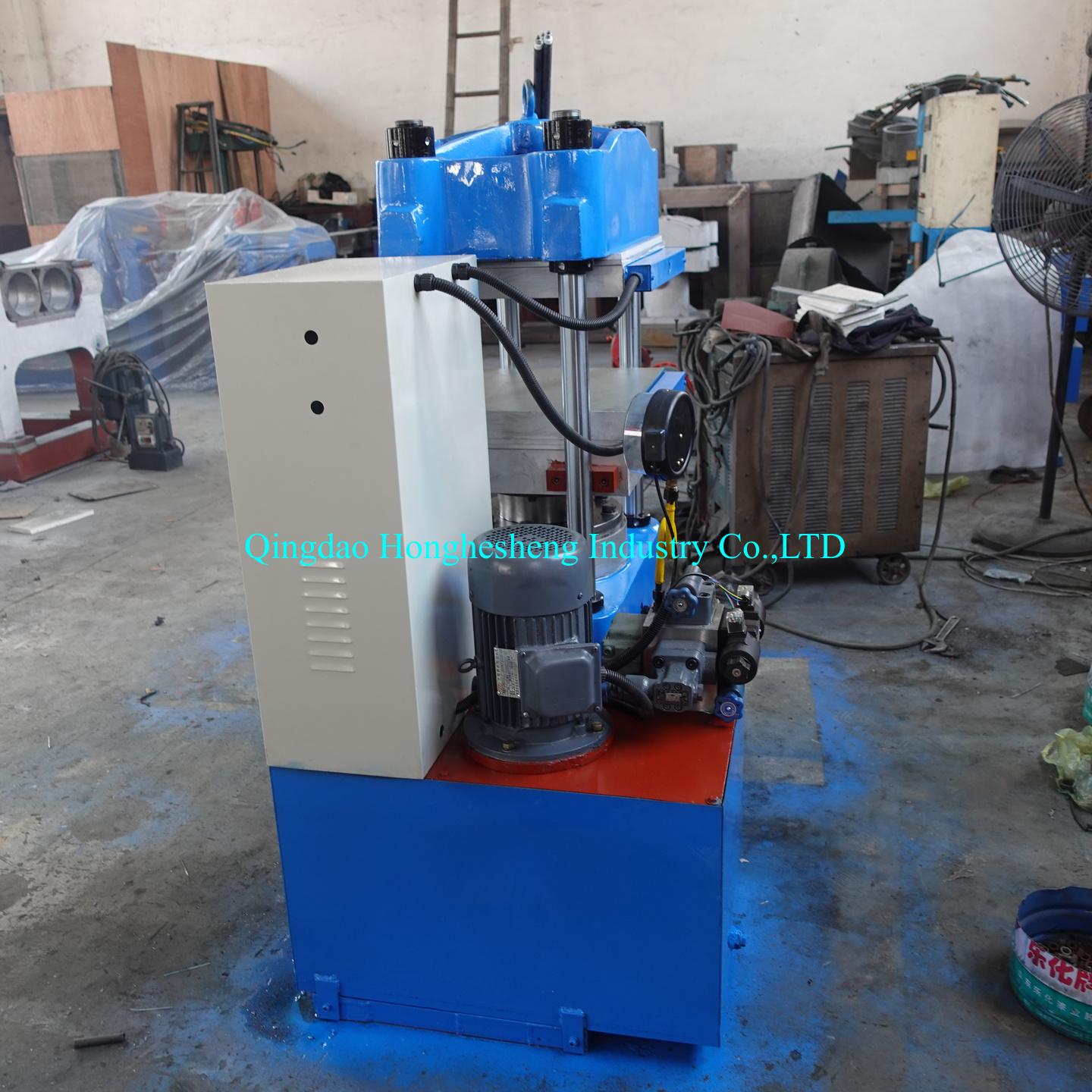

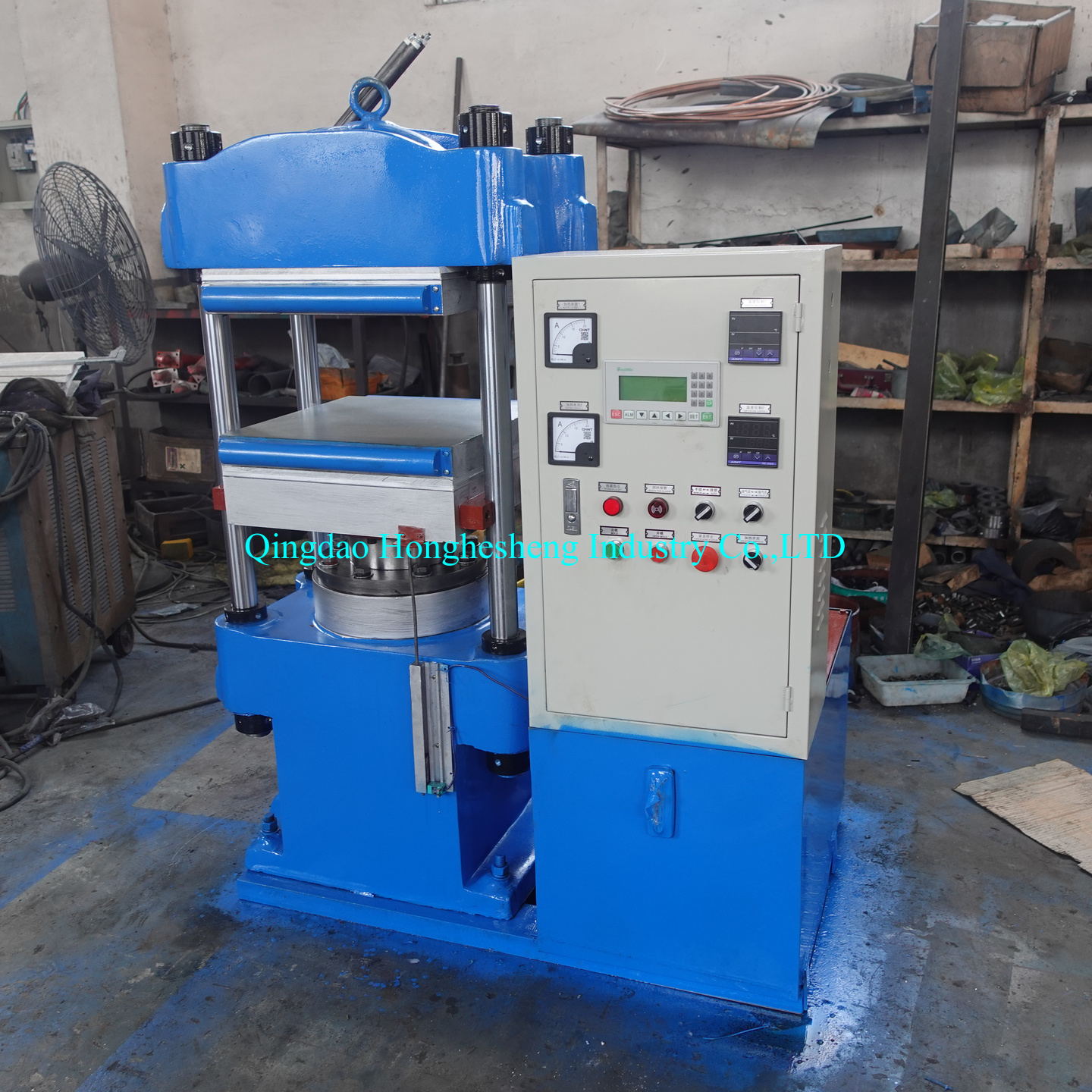

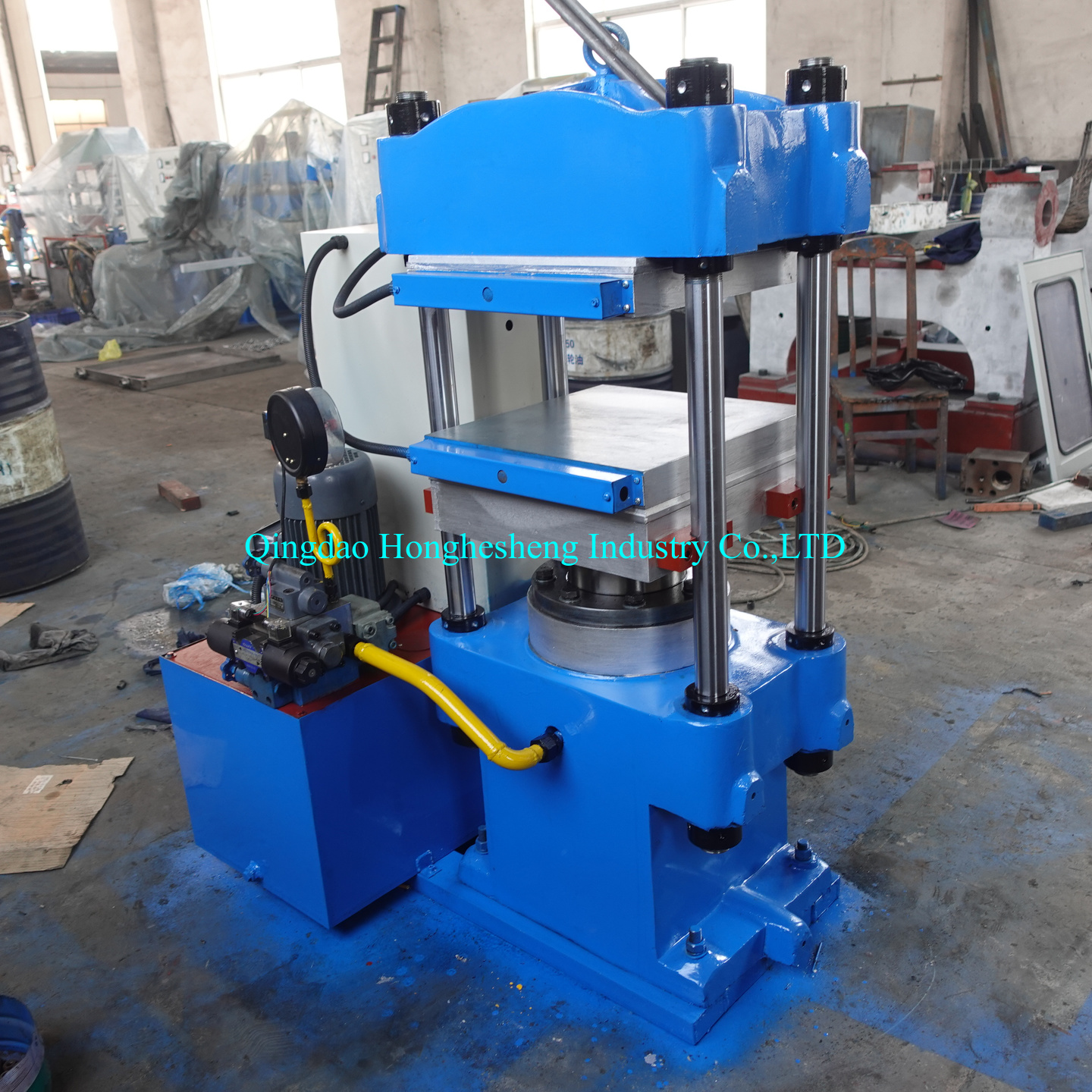

Detailed Pictures

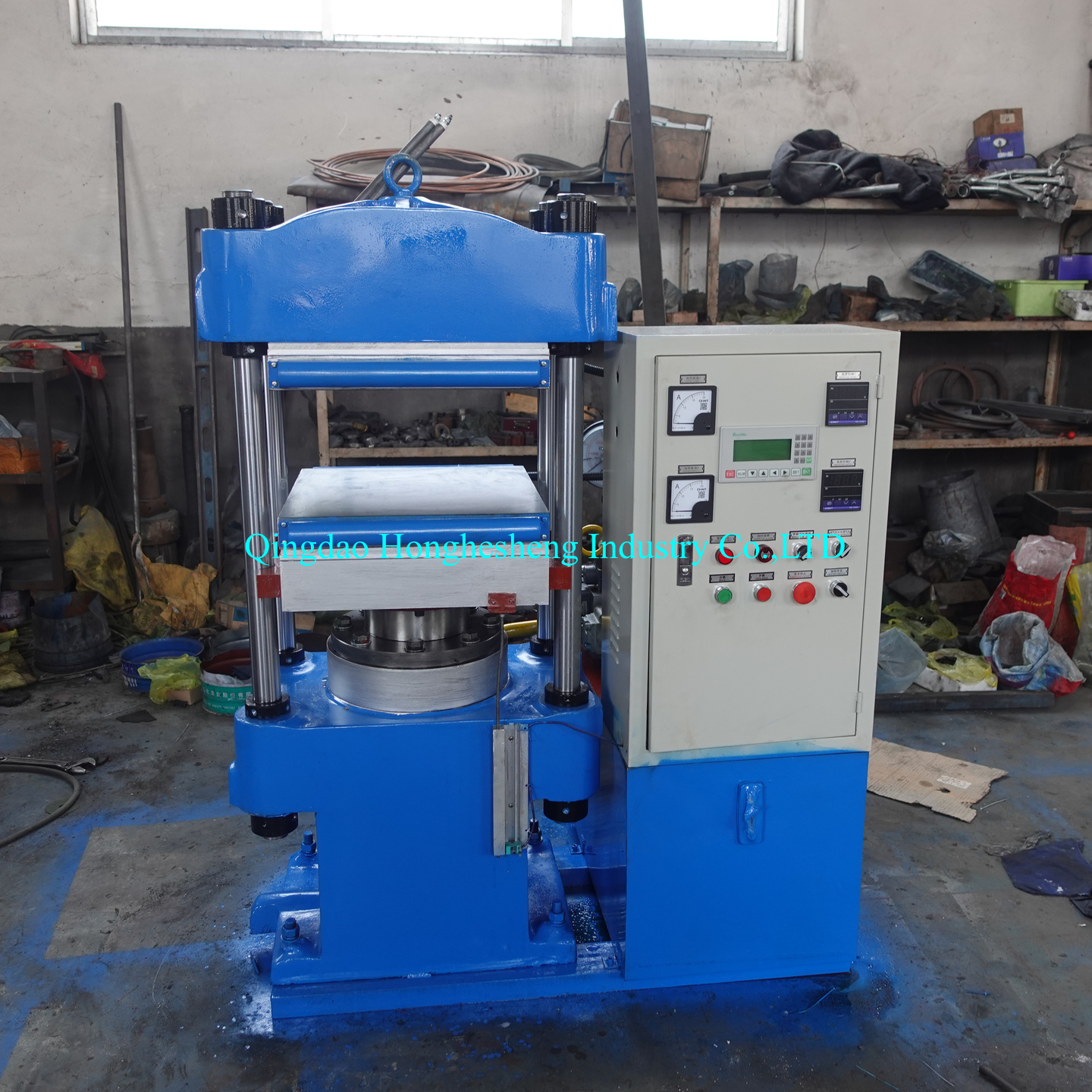

50Ton column vulcanizing press machine PLC control

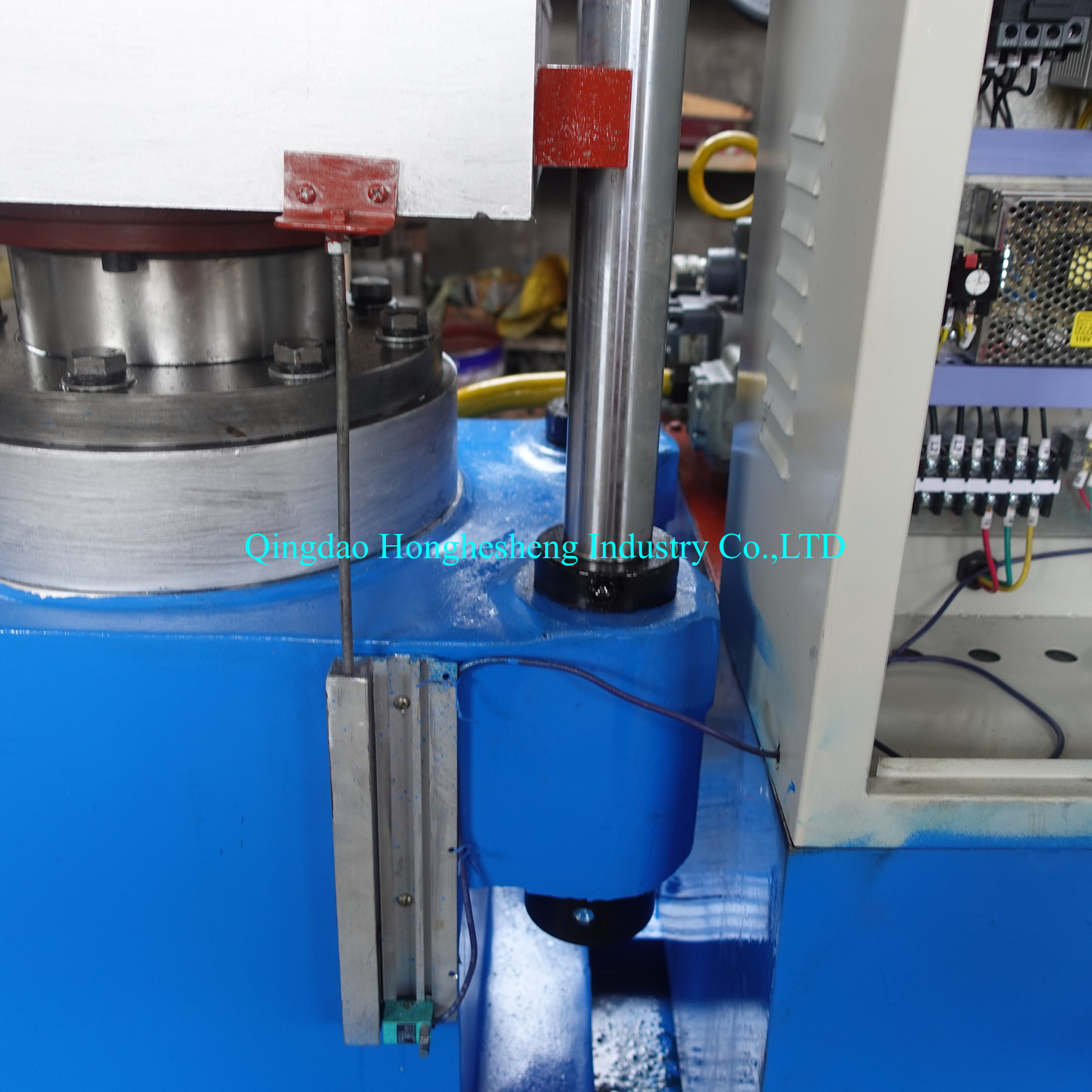

50Ton column vulcanizing press machine PLC control
