Complete set of radial tire crushing equipment waste truck tire recycling production line Capacity100-1000kg/h
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber
waste tires--- circle cutting--- strip cutting--- slicing cutting--- magnetic separating--- separation—packaging—put in storage.
Rubber powder processing equipments
| No | Name | Power | number |
| 1 | Ring cutter | 5.5kw | 1 |
| 2 | tire steel and wire separator machine | 15kw | 1 |
| 3 | Strip cutter | 5.5kw | 1 |
| 4 | Block cutter | 11kw | 1 |
| 5 | Tyre crusher | 90kw | 1 |
| 6 | Big conveyor equipment | 2kw | 1 |
| 7 | Small conveyor equipment | 1.1kw | 1 |
| 8 | Big Magnet separator | 2.2kw | 1 |
| 9 | Small Magnet separator | 1.1kw | 1 |
| 10 | Big Shaking screen | 7.5kw | 1 |
| 11 | Small Shaking screen | 3kw | 1 |
| 12 | Fiber separator | 5.5kw | 1 |
| TOTAL | 154.9kw | 12 |

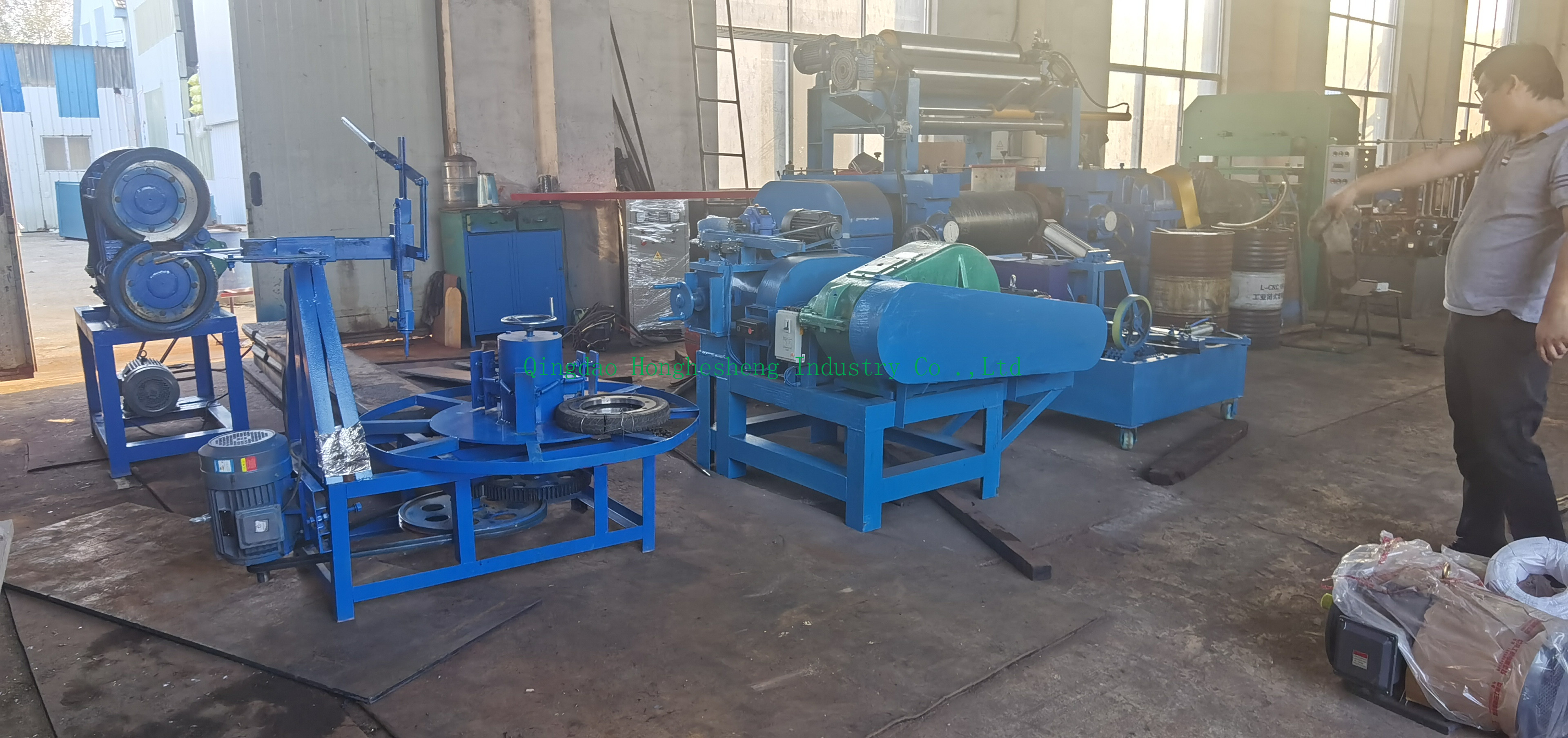

The whole set of rubber powder making equipments are consist of three main parts: scrap tires separating equipments, crusher set and grading magnetic separator.
⇓ ⇓ ⇓

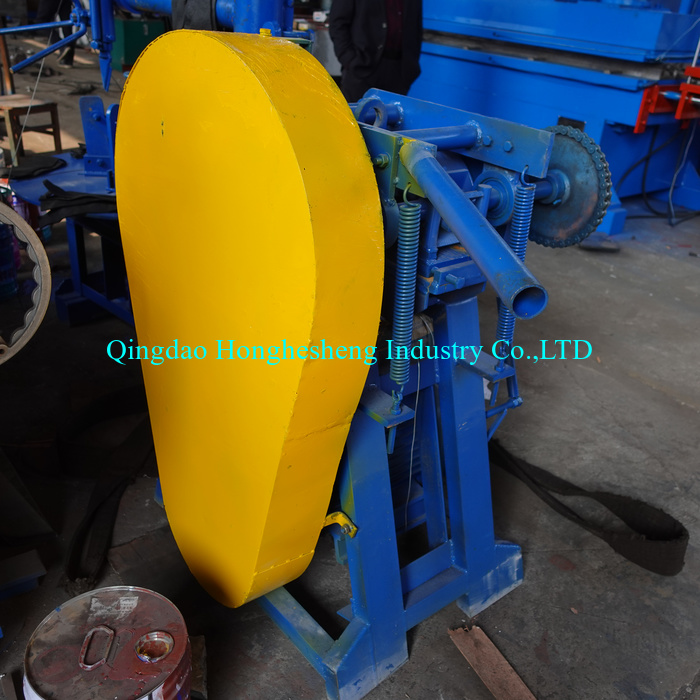

Truck tire sidewall cutter can separate the sidewall of the waste tire from its tire crown, this is the first step to dispose the waste tire, which makes it easy for the next cutting.

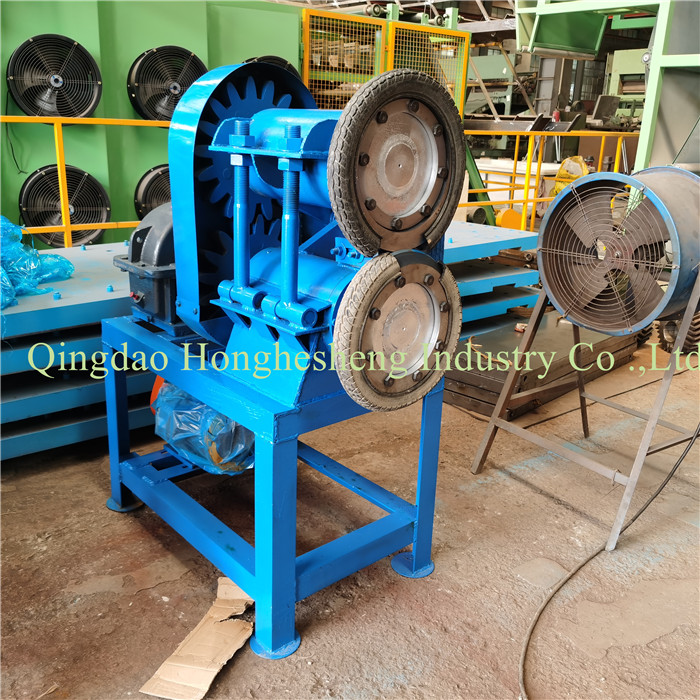

tire strips cutter can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for special materials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires.

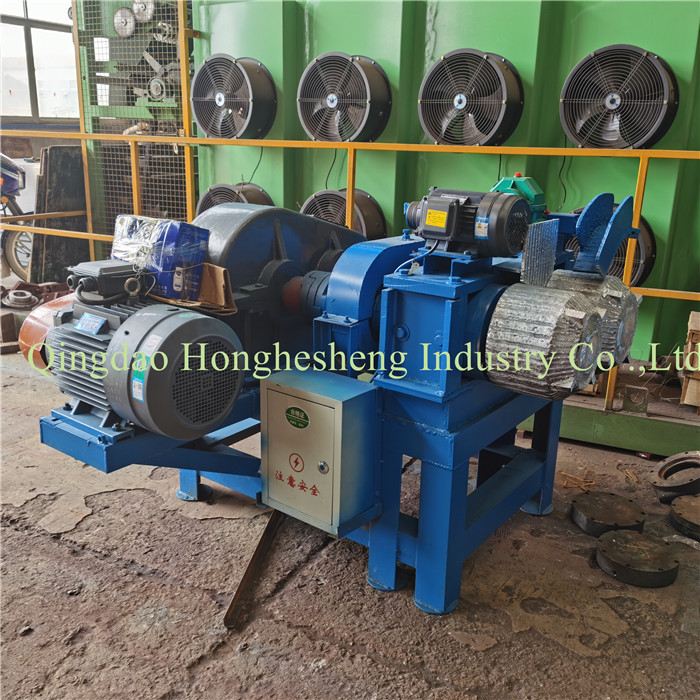

blocks cutter is used for cutting rubber strips into rubber blocks.3 pieces blades can run for at least half year,grind and sharp are necessary for maintain.

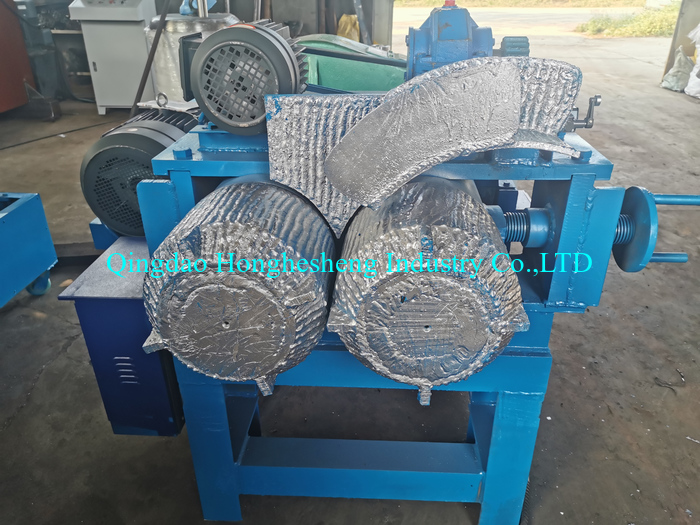

tire steel wire separator is mainly used to separate the rubber and steel wire from tire bead of all kinds of tires, and you can get a complete steel wire ring.

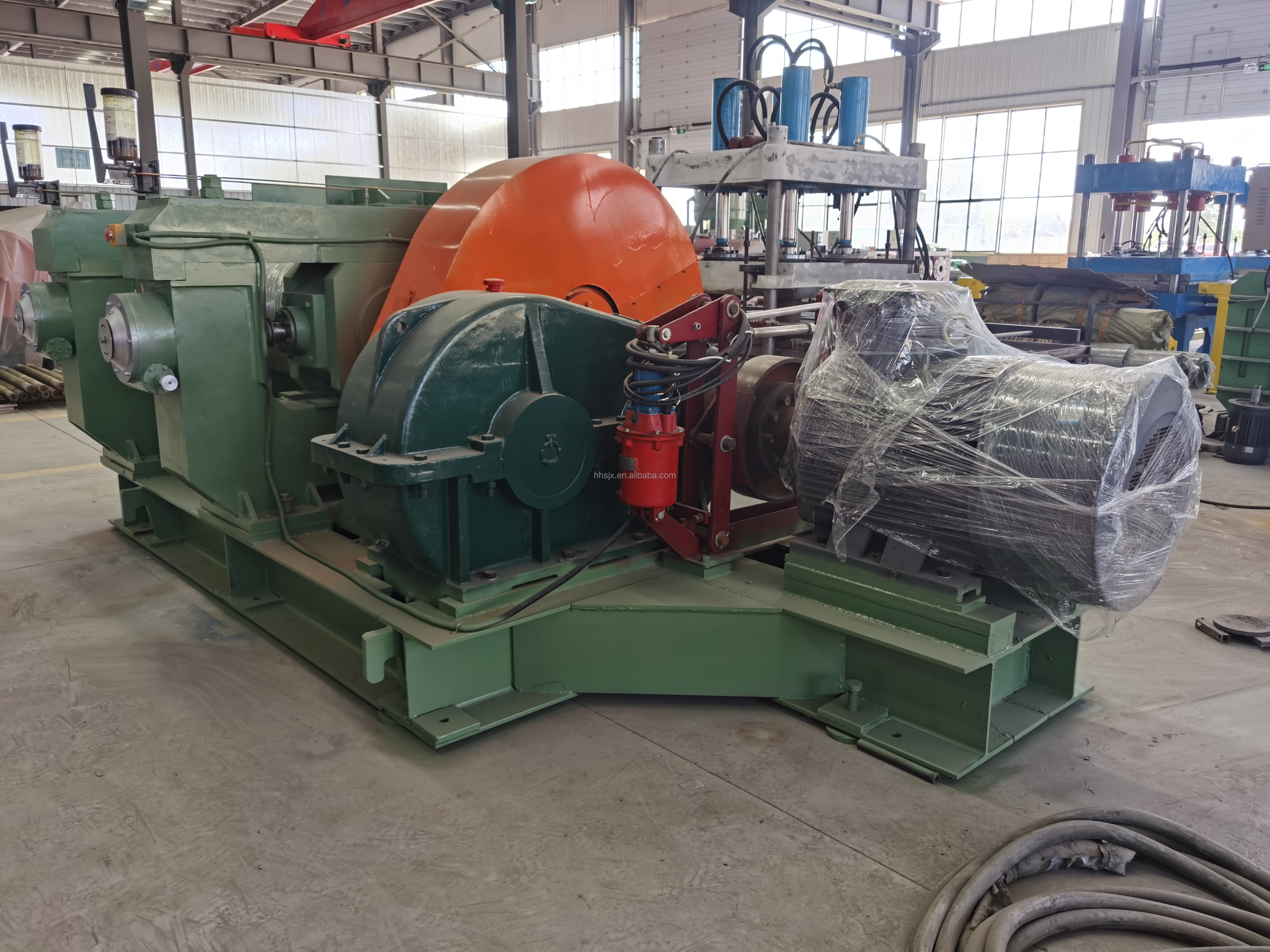

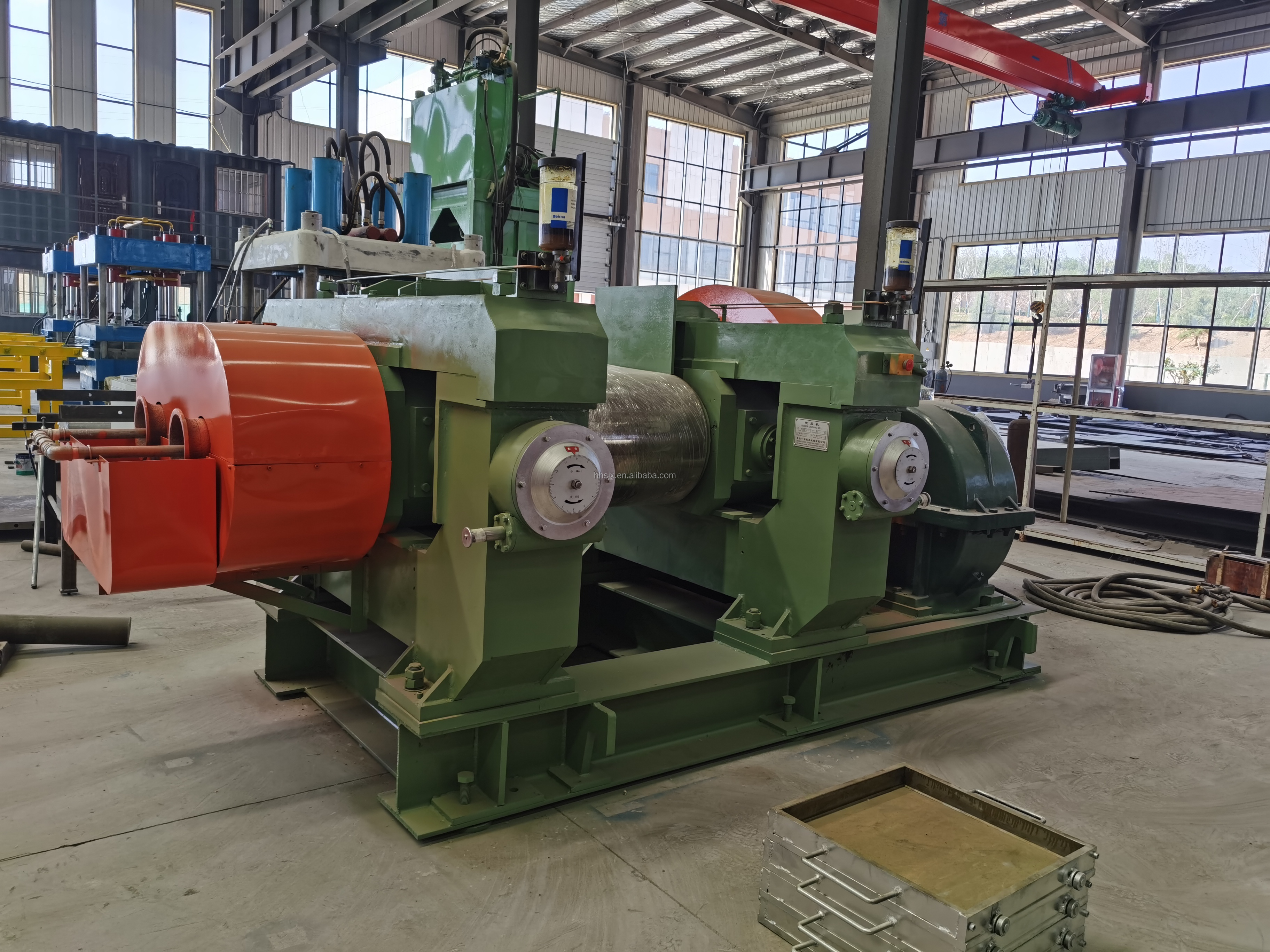

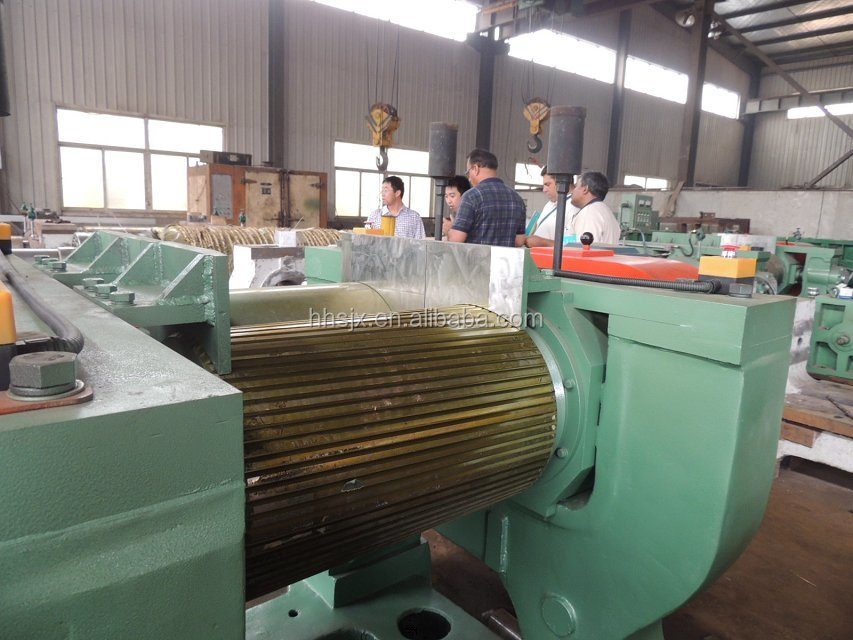

rubber crusher is mainly used to grinding waste rubber , tire , tube , flap and break the raw rubber materials.

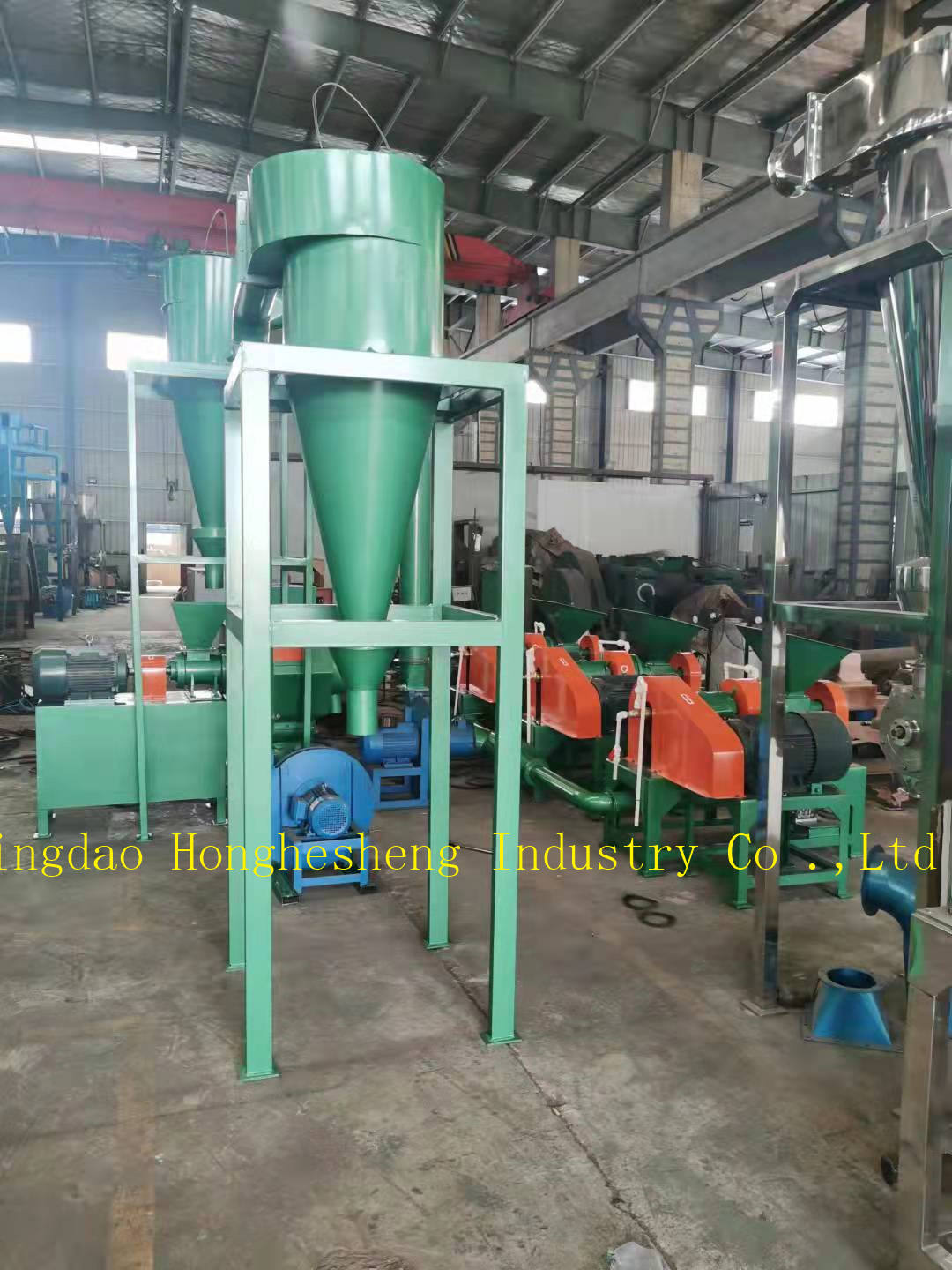

Fiber Separatorr can seperate steel wire,rubber powder and fiber.
Grinder Machine makes the rubber powder with 30-80mesh.
