Rubber Bale Cutter For Pelletizing Line

Brand Name : HHS

Model Number : XQL-120

Certification : CE,ISO9001

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD:1000-40000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 20 working days

Packaging Details : wood package/20-40 gp

Voltage : 220V /380V /440V

Dimension(L*W*H) : 2300X1500X2530

Warranty : 1 Year

Type : Rubber Cutting Machine

Weight : 2000kg

Power(W) : 11KW

Product name : High Quality Vertical Rubber Bale Cutter

Time of blade cutting : 13-16

Contact Now

Bale cutter for pelletizing line

LINA bale cutter for pelletizing lines are the leading in domestic rubber and plastic industry, LINA’s experiences and new technologies help the company gain a number of national invention patents which ensure the stability of LINA Rubber and Plastic. For plastic and materials with high viscosity are suitable and pelletizing line of high stickiness particles are suitable.

Rubber Bale Cutter For Pelletizing Line

Advantages

1. With the whole process chain units , acousto-optic alarming and rapid point of failure, such as locking features of intelligent control,All contact with the material even for stainless steel materials unit Pay attention to details, Perfect and reliable , Energy-saving and durable.
2. The use of temperature control system to guarantee the accuracy of materials on the temperature sensitivity.
3. Especially for the charging barrel and mold head, our company use foreign technology to protect and control Mold head pressure and to avoid excessive pressure caused injuries when the burst
4. Mandatory two-draft system and the single-screw feed technology portfolio not only meets the second consecutive high-demanding materials mixing, and the resolution of traditional work cut consumption broken time-consuming , better environmental protection and automation of production capacity and continuous operation of the corporate image.

3. This machine mainly used for cutting natural rubber ,synthetic rubber into small pieces for plasticating and mixing , it is widely placed near the rubber kneader machine , cutting big rubber material into small pieces for next step

4. The machine mainly consists of cutter , rack , hydraulic station ,machine base ,electrical cabinet ,etc .There is nylon mat on the surface of machine to protect the knife against damage

5. when you need cut the material , just put the material into feeding roller , and feeding roller will feed the material under the knife , then press the motor button in cabinet , knife will fall down and cut the material

Model	XQL-8T	XQL-12T	XQL-16T	XQL-100T
cutting force	8 T	12 T	16T	98 T
knife of cutter	660mm	880mm	1100mm	10 pieces knife
cutter of stroke	700mm	800mm	1000mm	1100mm
motor	5.5 kw	7.5 kw	11kw	22 KW
speed	20-30mm/s	20-30mm/s	20-30mm/s	110mm/s
machine weight	1000 kg	1200 kg	1500kg	7000 kg

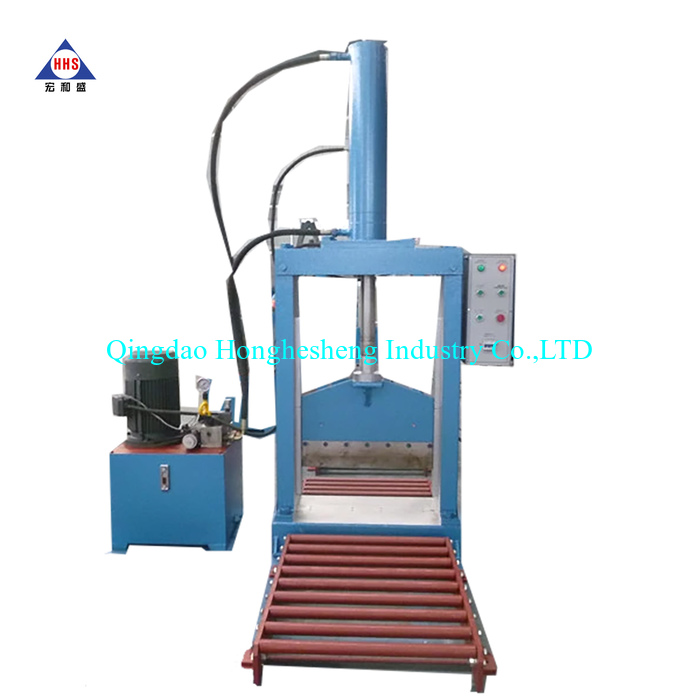

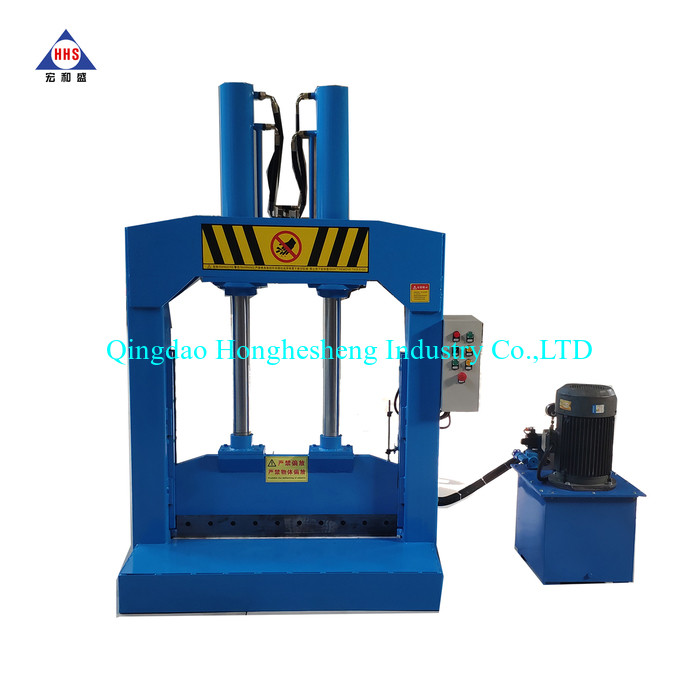

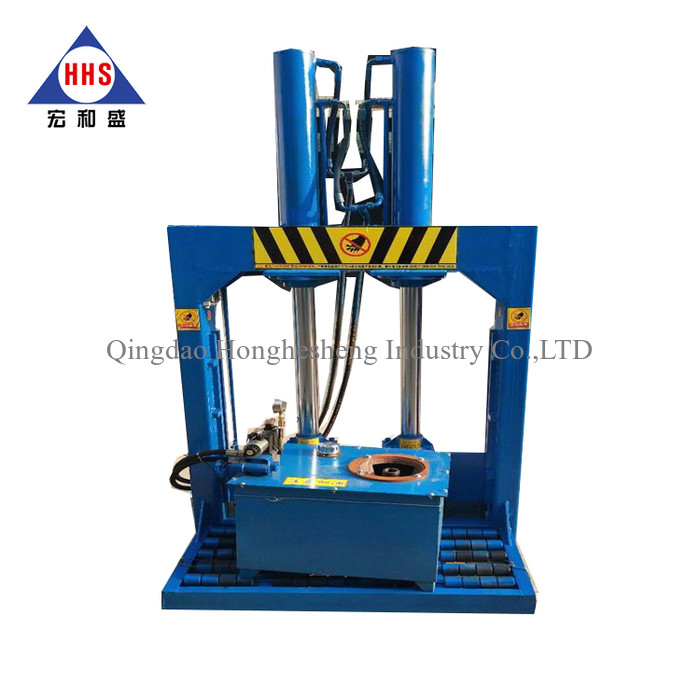

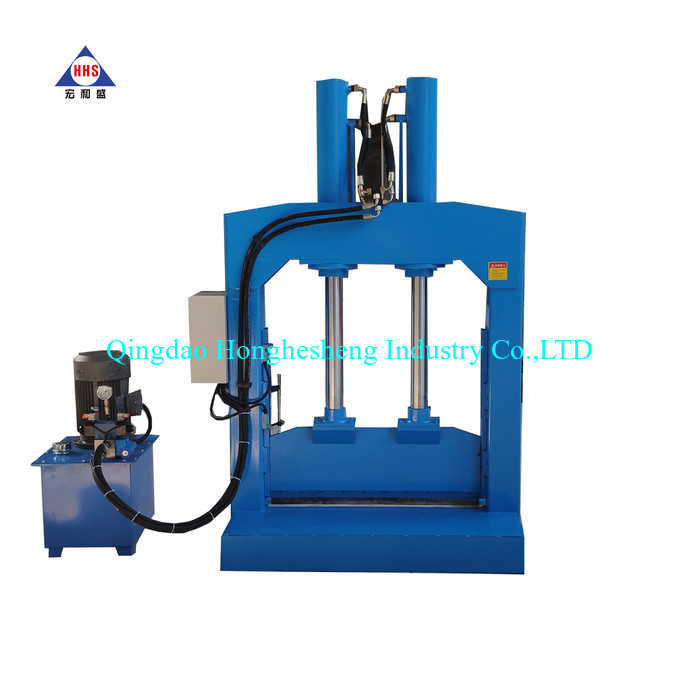

detailed pictures

Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…

welcome to visit our factory!
