Qingdao Honghesheng Industry Co., Ltd.

Contact Now

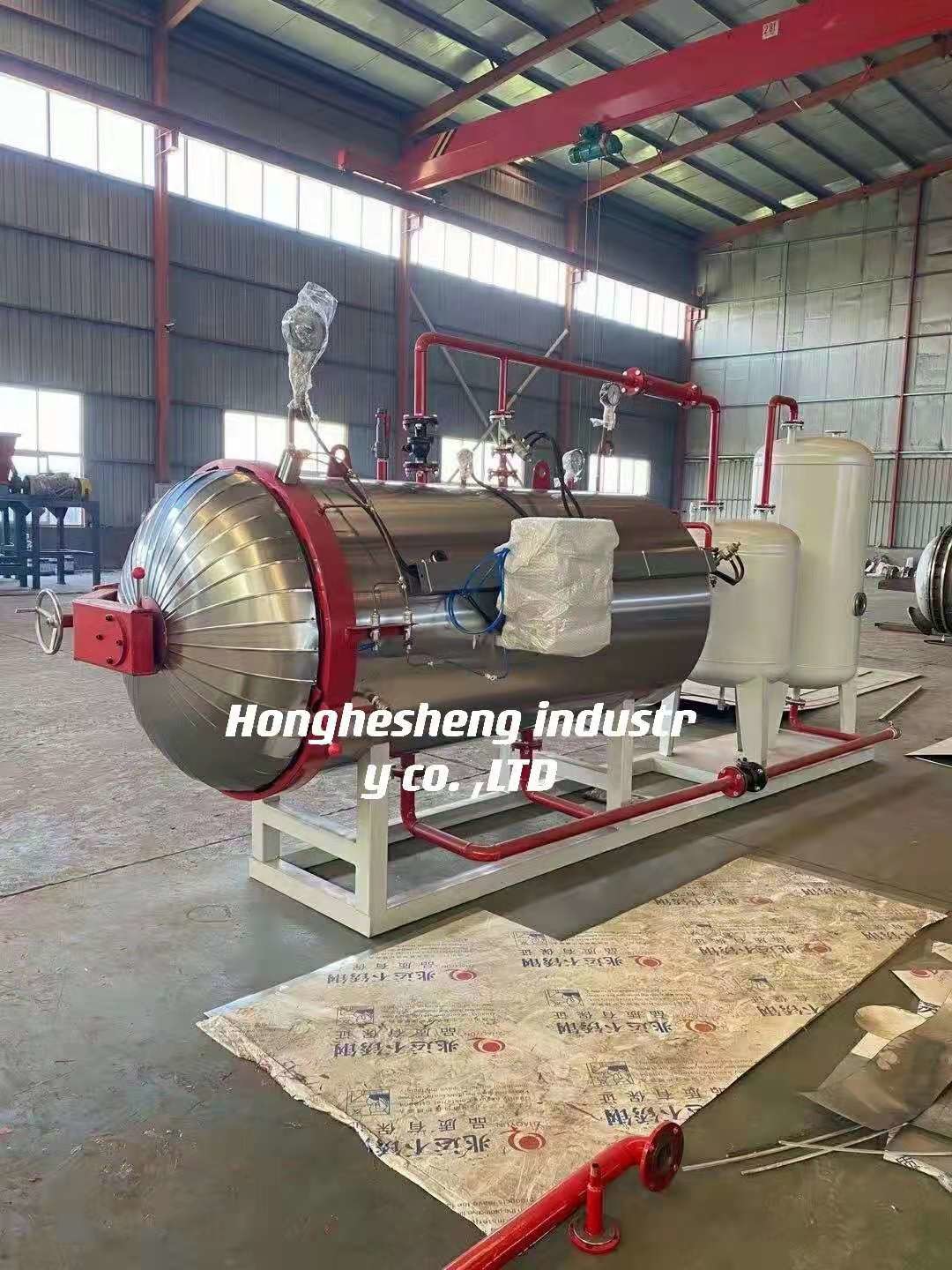

Electric Heating Stainless Steel Vulcanizing Tank Manual Controlled

Brand Name : HHS

Model Number : DN0509

Certification : ASME CE, ASME CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD:8000-78000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 20 working days

Packaging Details : wood package /20-40 container

Max Working Press : 0.65MPa

Warranty : 1 years

Core Components : PLC, Pressure vessel

Color : Customer's Requirements

Advantage : full automatic

Key Selling Points : Easy to Operate

Voltage : 220V/380V/450V

Dimension(L*W*H) : 3200*2200*2300MM

Weight : 64000 KG

Curing time : 2.6~3h

Power : 110 kW

Temperature : 95~120℃

Contact Now

Electric Heating Vulcanizing Tank/Stainless Steel Vulcanizing Tank/Manufacturer Supply Special Vulcanizing Tank

Product Description

Diameter 500-6000mm, length 1000-60000mm, can be customized for customers to sell separately, limit to meet the technical needs of different products.

1, heating mode: boiler steam heating, electric heating, indirect steam heating, heat conduction oil heating, microwave heating, electromagnetic heating customers can choose according to the requirements of the product.

2. Door opening method:

a. Manual quick door opening (manually turn the hand wheel to open the can door. Low failure rate, convenient and quick)
b. Electric door opening (using motor rotating flange to realize the opening and closing of the tank door, without manual operation)
c. Cylinder opening (air compressor is used to fill air to the tank door, and the cylinder is used to rotate the flange, without manual operation, convenient and fast)
d. Hydraulic automatic door opening (using oil cylinder and hydraulic station to realize the opening and closing of the tank door, without manual operation).

3. Sealing method of tank door: inflatable silica gel sealing ring is adopted, sealing effect is obviously better than other ways, service life is more than 1 year.

4. door chain mode :

(1), pressure automatic chain

(2), manual chain, completely solve the hidden danger caused by workers' misoperation.

5, control mode :

(1) the use of intelligent computer automatic control (automatic temperature, automatic temperature control, automatic pressure preservation, automatic pressure relief) can store 9 kinds of technology, each technology is divided into eight sections of temperature, heat preservation, after the boot without tube, than the traditional manual control saving more than 35%.

(2) PLC computer automatic control (large screen) can set 20 processes, each process is divided into 8 heating sections, U disk can be stored and printed, can view the temperature and pressure curve)

(3) Manual control, manual control of each valve switch, traditional control mode.

Notes:

We can design a turnkey production line for our customers,the line including many machines,customer also can choose the one they need depend on their production and the founds,so no matter what requriements you have,we will try our best to with you

If you need more information, please click to contact us!
