Open Two Roller Rubber Mixing Mill Machine 6In 9In 10In 12In 14In 16In 18In 22 Inch

Brand Name : HHS

Model Number : XK250

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD8000-15000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50SETS/MONTH

Delivery Time : 30 working days

Packaging Details : wood package /20/40GP/HC

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support

Type : Open Mixing Mill

Roller hardness : 50~60HRC

Bush : nylon bush,bearing bush,ball bearing b

Voltage : 220V/380V/450V

Power(w) : 18.5KW

Weight : 3200KG

Dimension(l*w*h) : 2722*1115*1345mm

Warranty : 1 Year

Condition : New

Contact Now

Two-Roller Rubber Mixing Mill Machine 6 Inch 9 Inch 10 Inch 12 Inch 14 Inch 16 Inch 18 Inch 22 Inch Open Mill Mixer Mach

Size: 6", 9", 10",12", 14",16", 18", 22"inch

The two roller Open mill mixer machines widely used in recycling rubber factory, conveyor belts factory, rubber products factory, shoes soles factory, cables factory, rubber pipes factory, rubber seals factory etc.

For rubber processing, it needs to pour into the cool/cold water for cooling the rollers.
For safety, we have the manul wheel and electrical control brake system.

Technical Specifications

Model		X(S)K-160 6inch	X(S)K -250 10inch	X(S)K -360 14inch	X(S)K -400 16inch	X(S)K -450 18inch	X(S)K -550 22inch	X(S)K-660 26inch
Diameter of rolls		160	250	360	400	450	550	660
Working length of roll		320	620	900	1000	1200	1500	2130
Working speed of front roll		8.95	14.9	17.4	19.3	23.1	28.6	30
Fraction ratio of rolls		1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.29	1:1.05
Max.gap(mm)		5	8	10	10	10	15	15
Nip regulating mode		Manual	Manual	Manual	Manual or Electric	Manual or Electric	Manual or Electric	Electric
Batch capacity(Kg)		1-2	10-15	20-15	25-35	30-50	50-60	120-140
Motor	Power	5.5	15	30	45	55	90/110	180
	Motor speed(r/m)	1440	730	980	740	980	740	740
Reducer		Full closed type hardened gear speed reducer
Reduction ratio		43	35	49.7	38	47.2	35.6	126.2
Overall dimension (mm)		1120x920 X1295	3400x1270 X1620	4140x1770 X1700	4490x1700 X1750	5570x1900 X1750	6290x2330 X1780	7500x 2630x2060
Weight (kg)		1100	4200	7600	9000	11500	20000	26500

As a leading rubber machine manufacturer, we can supply non-standard model machine according to detailed requirements.

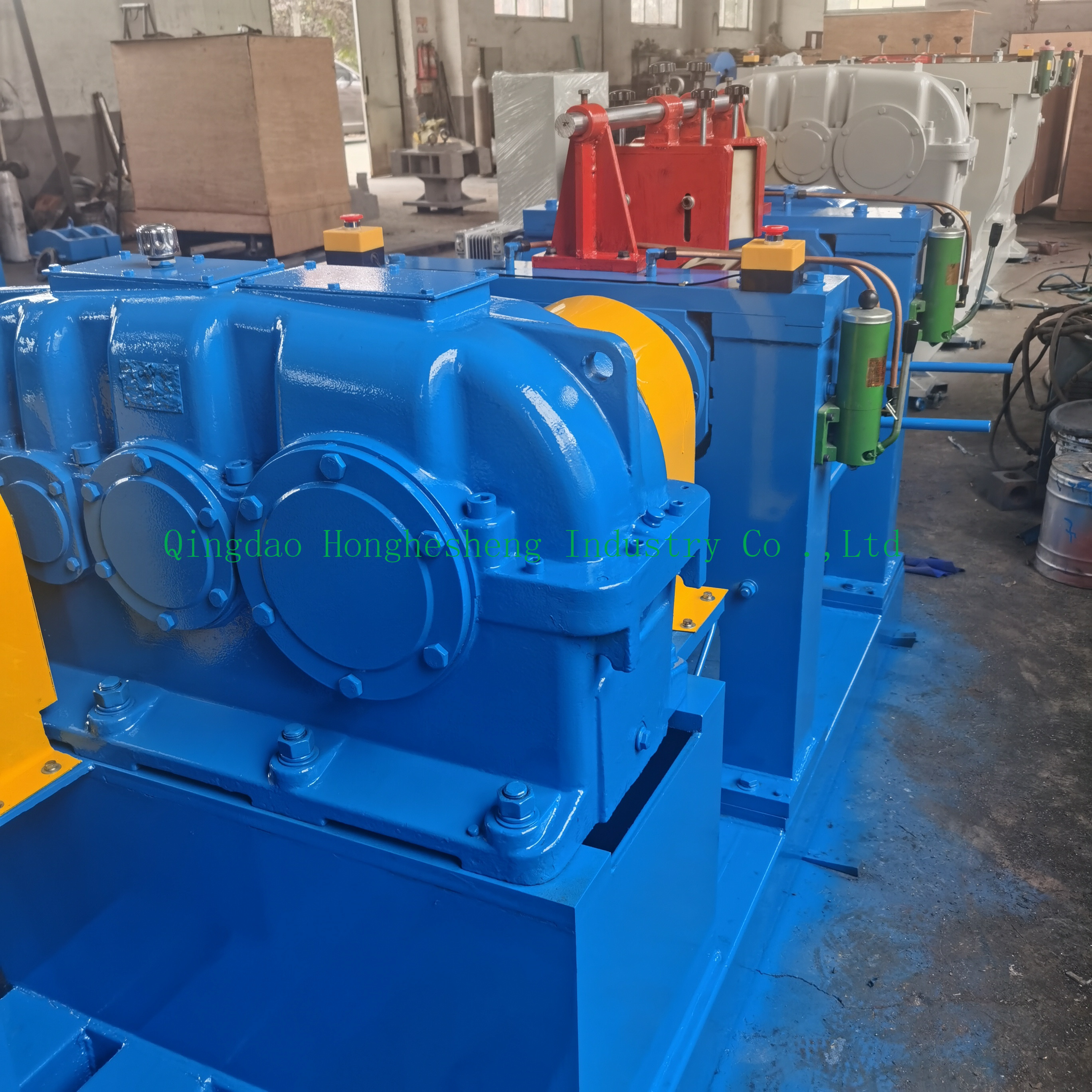

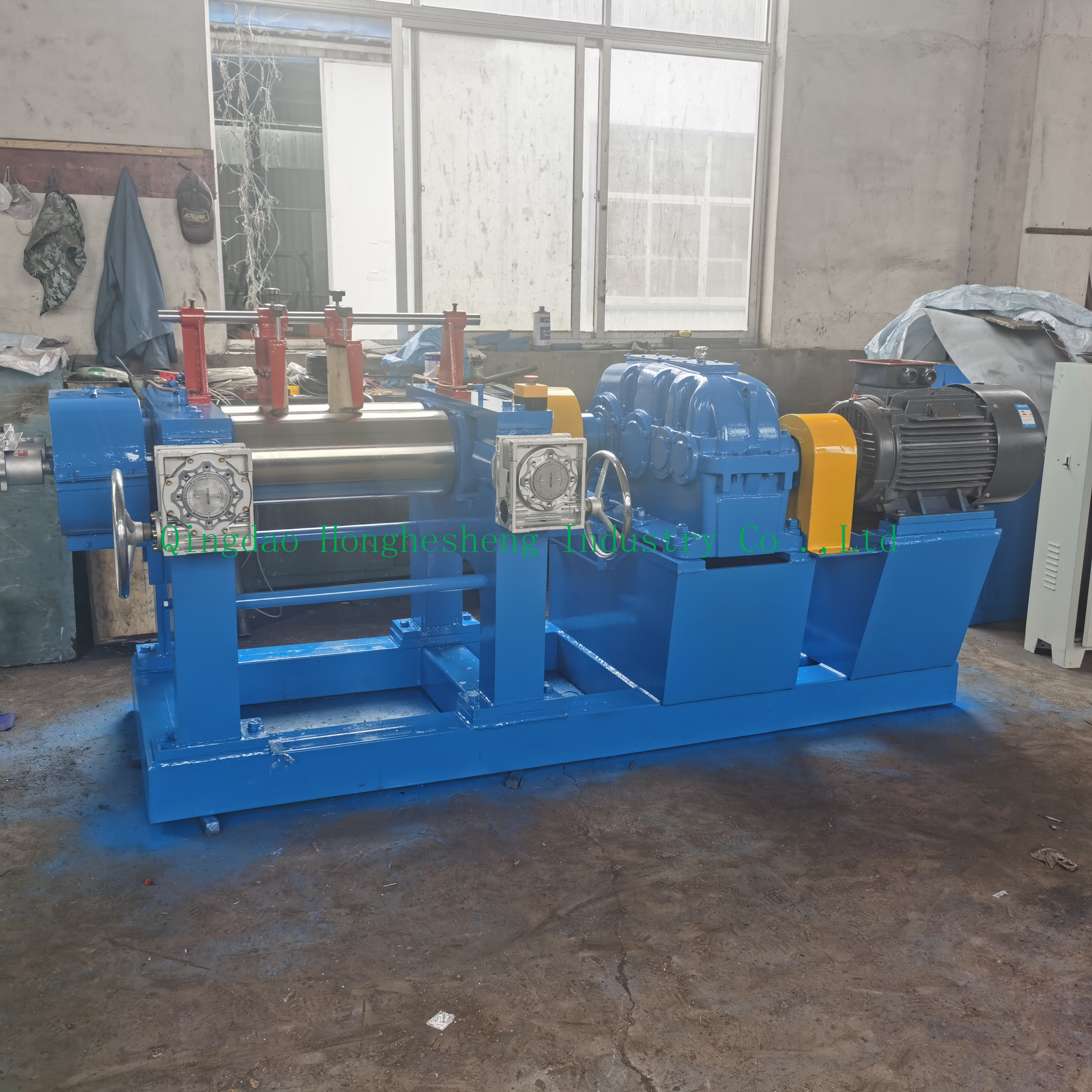

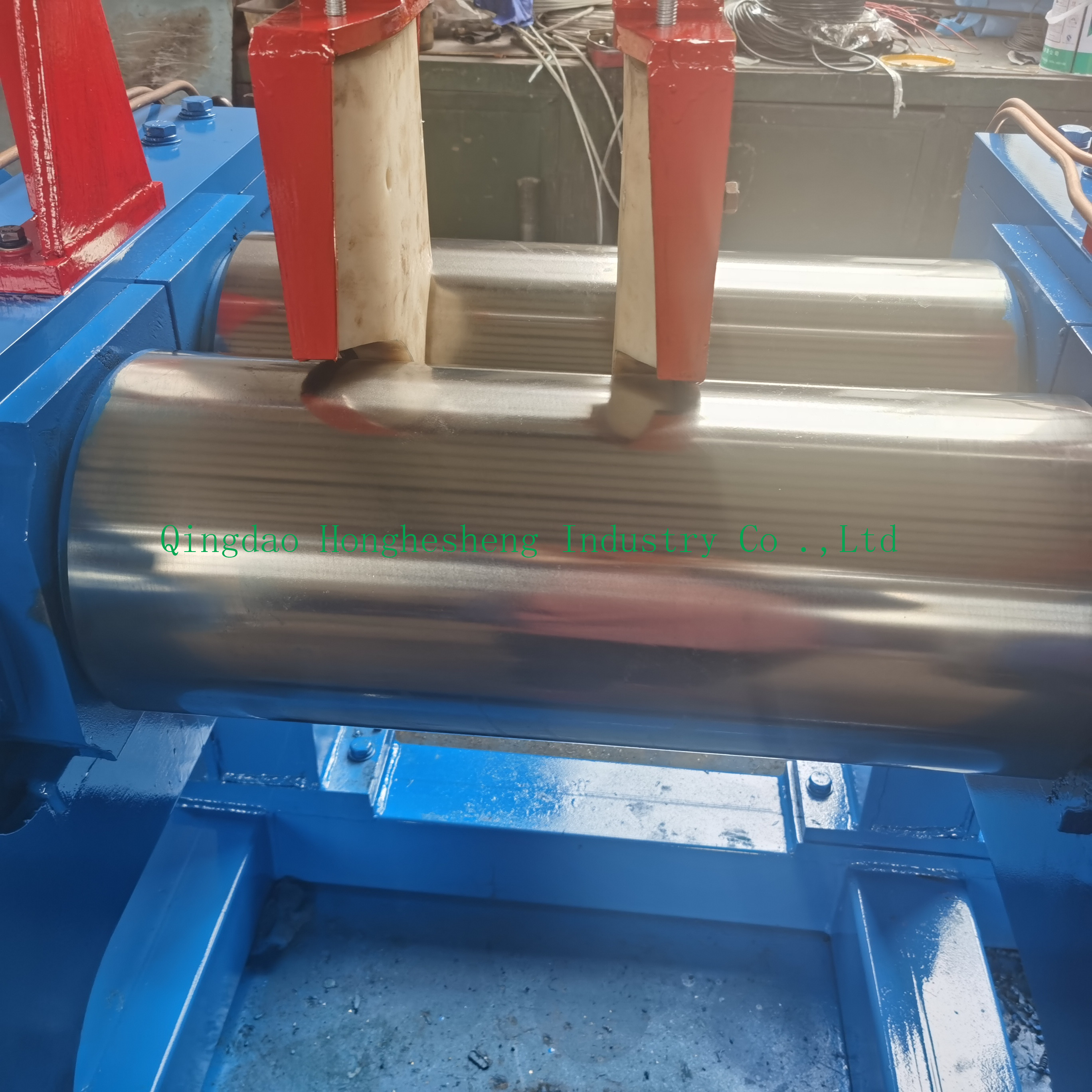

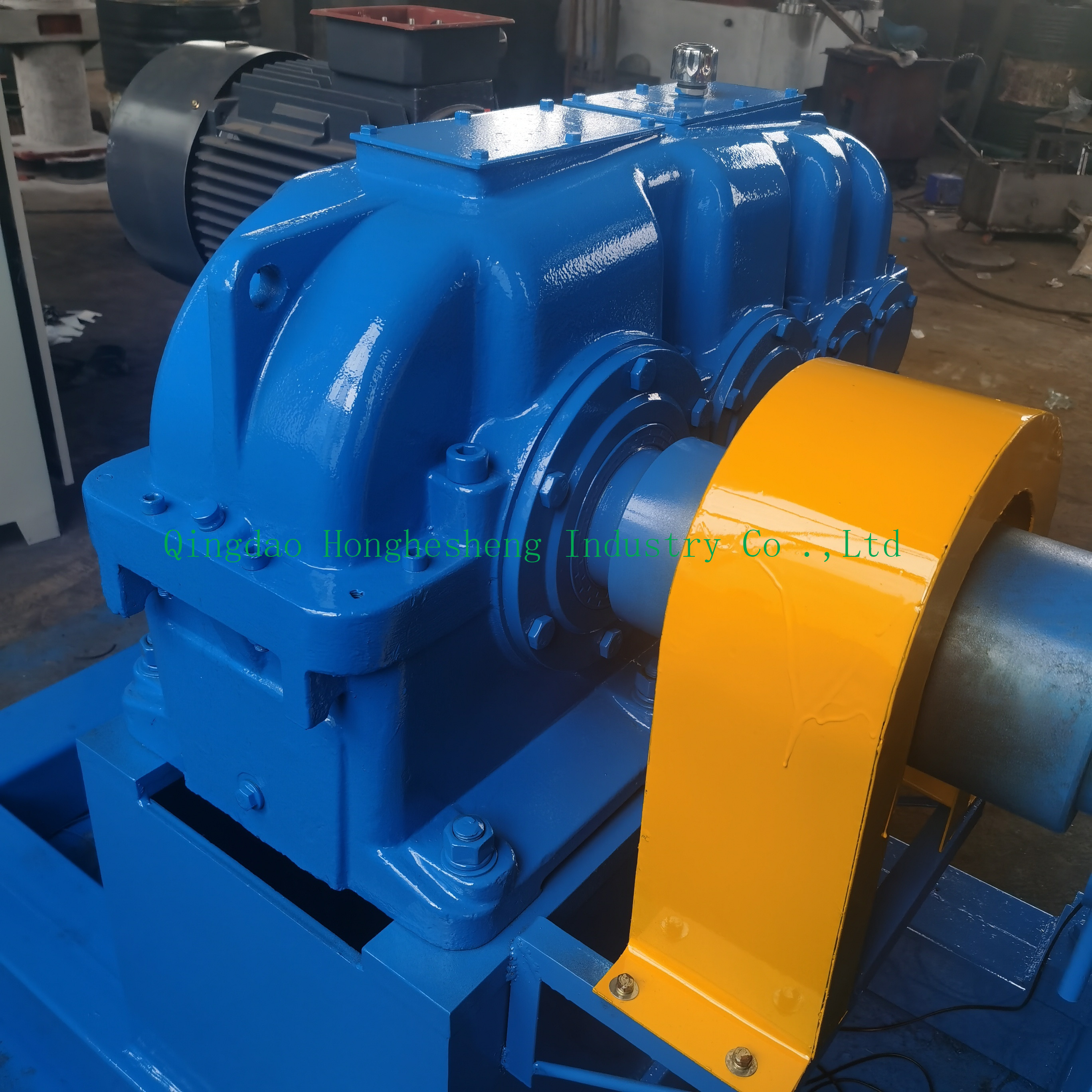

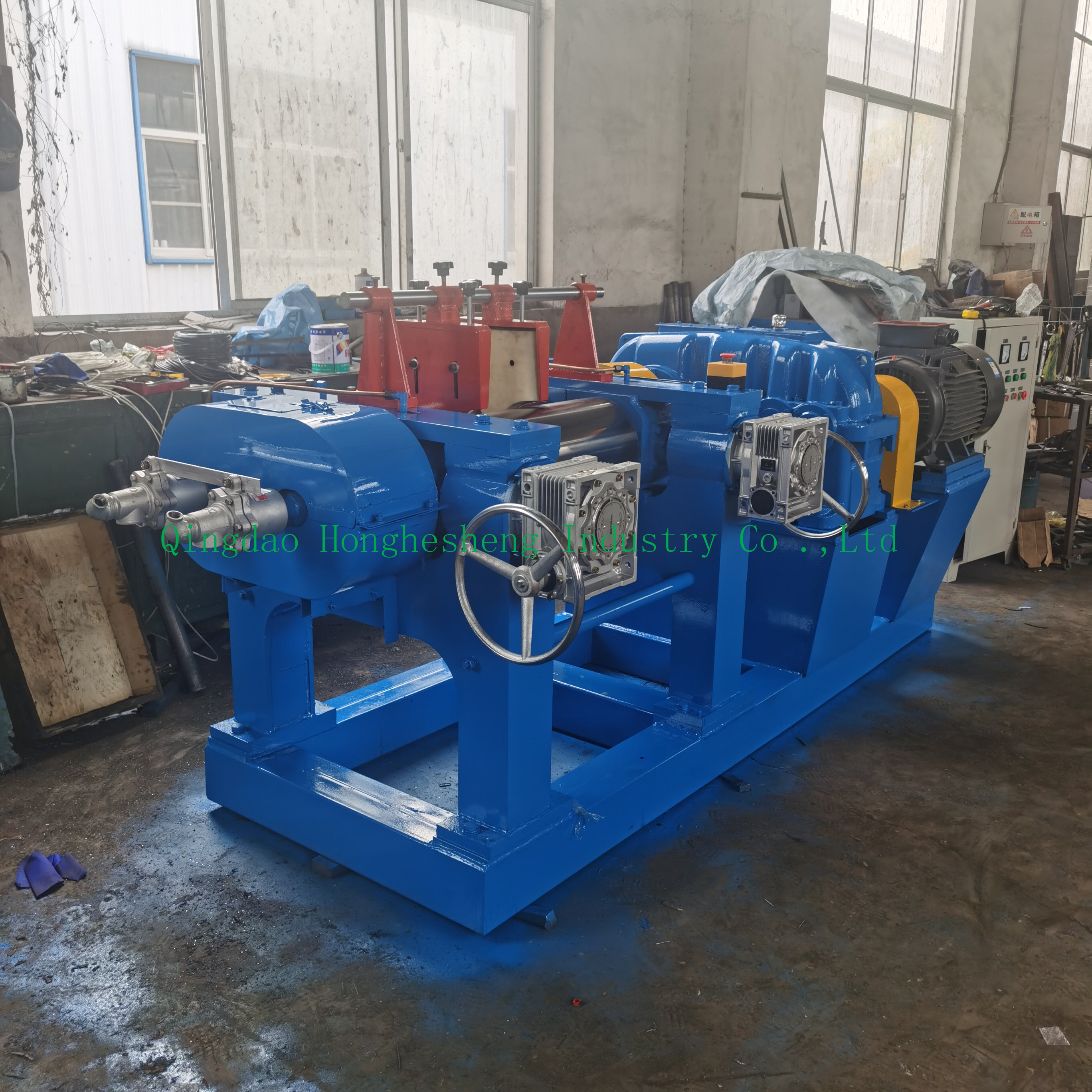

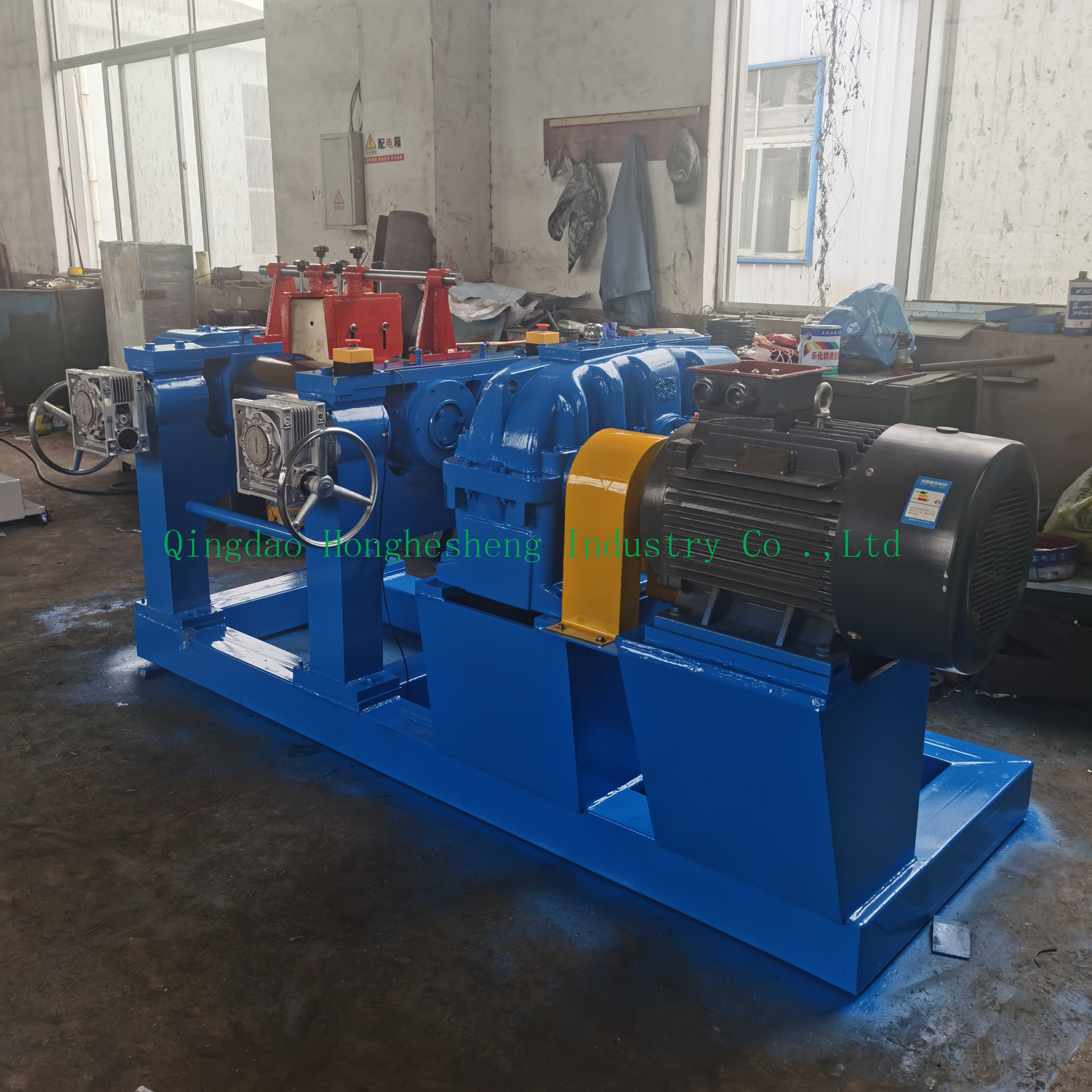

Detailed Pictures

Open Two Roller Rubber Mixing Mill Machine 6In 9In 10In 12In 14In 16In 18In 22 Inch
