Waste Tire Recycling Machine Whole Rubber Powder Making Line Tire Crusher Rubber Block Crusher

Brand Name : HHS

Model Number : ZPS-900

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD:5000-20000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 SETS/MONTH

Delivery Time : 25 working days

Packaging Details : wood package /20-40GP/HC

Type : Tire Machine,Rubber Cutting Machine,continuous type

Power(w) : 30X2kw

After-sales service provided : Engineers available to service machinery overseas

Voltage : 380V/50HZ,Customer Request

Name : Used Tire Shreddere

Capacity : 800-1500kg/h

Year : new

Product name : Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery

Function : Tire Powder Recycling Machine,Make Rubber Granule,crumb tires into 30mesh powder

Raw material : waste tire sealing sheet,rubber scraps,truck tire,car tire

End product : rubber granules and powders,rubber granules/rubber powder,tire steel,tire fiber

Usage : Used Tire Recyling

Contact Now

product Introduction

Application: is used for cutting whole tire to 50*50mm rubber block.

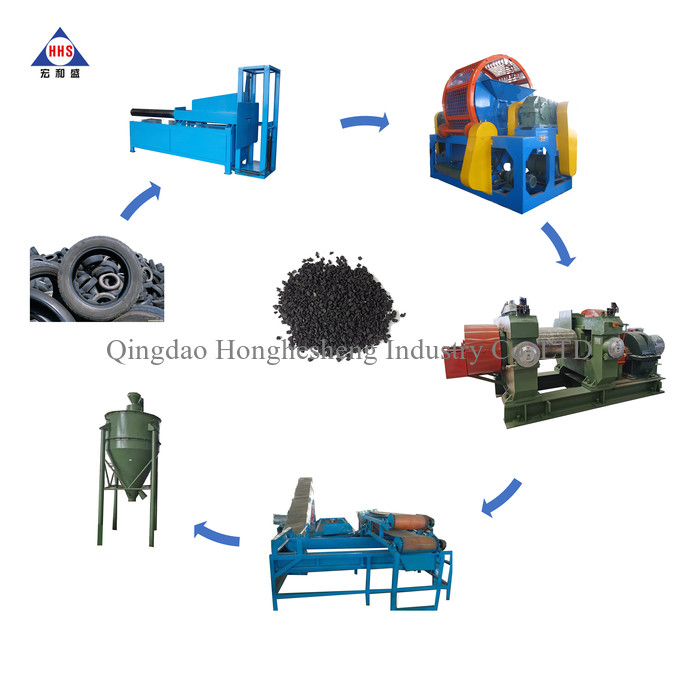

Automatic tire recycling production line:
Fully automatic wire drawing machine: remove tire rims.
If you need to increase the output, you can cut the tire to 2/1 first,
Tire shredder: shred tires into film (50mm-150mm)
Steel wire separator: separate rubber and steel wire and process them into rubber particles (10mm-20mm)
Magnetic separator: Separate steel wire from rubber steel wire mixture.
Rubber pellet machine: crush rubber pellets to a smaller size (1mm-7mm).
Vibrating screen: Separate rubber particles of different sizes, and send the oversized particles back to the crusher for secondary crushing.
Fiber separator: remove foreign matter and fibers.
Grind mill: Grind the particles into powder (30 mesh-100 mesh).
Fully automatic bagging system: the finished product is loaded into storage bags or packaging bags.

These are all the supporting equipment in the complete production line of tire crushing equipment, which can be configured differently according to the requirements of the user for the finished product. Please consult us for the production line configuration that suits you.


Parameter of the Rubber Cracker mill:

Model number	ZPS-900	ZPS-1200
Input size	Less than 900	Less than 1200
Discharge size	50—300mm(adjustable)	50—300mm(adjustable)
Motor power	30*2 kw	75*2 kw
Dimension	345021002400mm	410027303300mm
Amount of waste tire	800-1500T/h	2000-3800kg/h
Screen power	1.5kw	5.5kw
Main shaft speed	19rpm	22rpm
Screen speed	4rpm	25rpm
Number of blades	18pcs, made of alloy steel, welded	25pcs, made of alloy steel, welded
Gearbox	Harden gears, large torque	Harden gears, large torque
Weight	5.8T	15.6T

product pictures

Waste Tire Recycling Machine Whole Rubber Powder Making Line Tire Crusher Rubber Block Crusher

Waste Tire Recycling Machine Whole Rubber Powder Making Line Tire Crusher Rubber Block Crusher Images
